LG 22LX570M User Manual

66
206-4281
PILLOW
SPEAKER
ANTENNA/
CABLE IN
TV-LINK
CFG
SPEAKER OUT
LINE OUT
SERVICE
ONLY
OPTICAL
AUDIO OUT
GAME CONTROL
/ MPI
1
IN
UPDATE
RESET
UPDATE
UPDATE
Restricted to software updates.
RESET
Initiates a hardware reset and
turns the TV OFF.
GAME CONTROL/MPI
When the TV/EBL is in Pass-through Mode, the
MPI function enables an external MPI control
device (i.e., VOD/PPV STB, etc.) to control the TV.
Game Control—EBL in SONIFI PPV Mode only.
SPEAKER OUT / LINE OUT
( 3.5 mm jack) Connect external audio (xed
speaker, variable speaker, or xed line level
[amplier]) equipment. See Reference section,
“External Stereo Speaker Specifications,” for
further information.
HDMI IN 1
Connection for HDMI output
from external device.
ANTENNA/CABLE IN
Connect to Antenna/CATV.
SERVICE ONLY
Restricted to service updates.
TV-LINK CFG
( 3.5 mm jack) Use to connect PC to TV (EBL)
for local FTG Mode via EBL configuration.
OPTICAL AUDIO OUT
Use for amps and home theater systems. Note:
When the TV is OFF, this port is not enabled.
Side Jack Panel
HDMI IN 2
Connection for HDMI output
from external device.
USB IN
Insert USB memory device
for software updates, cloning
purposes, FTG Mode via CPU
configuration, picture/music
entertainment, etc., as applicable.

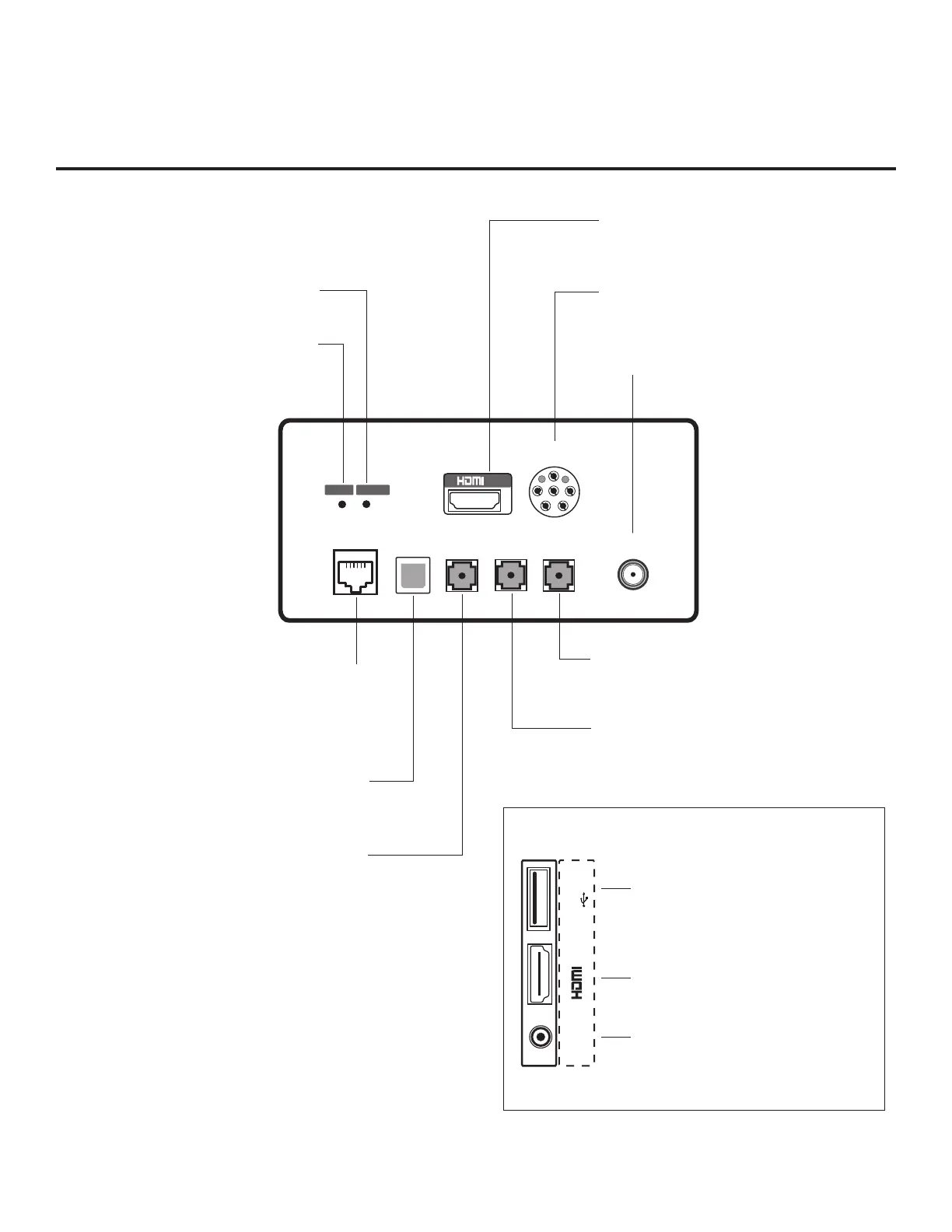

Reference: 22/28LX570M Rear and Side Jack Panels
..........
USB IN
IN 2
AV IN
..........
USB IN
IN 2
PILLOW SPEAKER
Connect pillow speaker here.
AV IN
(3.5 mm jack) Connect video/audio
output from external device (use A/V
adapter cable provided with TV).

LG 22LX570M Specifications

General

Panel life	- h
Pixel pitch	- mm
Response time	9 ms
Display diagonal	21.6 \
Display brightness	- cd/m²
Display resolution	1366 x 768 pixels
Display technology	LED
Contrast ratio (dynamic)	1000000:1
Contrast ratio (typical)	1000:1
Display number of colors	-
USB version	2.0
USB 2.0 ports quantity	1
Product color	Silver
Product design	Digital signage flat panel
Panel mounting interface	75 x 75 mm
RMS rated power	5 W
Power consumption (standby)	0.5 W
Power consumption (typical)	20 W
Sustainability certificates	RoHS, ENERGY STAR
Certification	UL, FCC, RoHS, cUL, NOM, Energy Star 7.0
Picture mode	Vivid, Standard, Eco, Cinema, Sport, Game

Weight and Dimensions

Depth	50.8 mm
Width	508 mm
Height	304.8 mm
Weight	2720.5 g
