70
206-4281
Reference: LG Pro:Centric Patient Remote and Pillow Speaker
LG Pro:Centric patient remotes and/or pillow speakers are available
for purchase (see patient remote example at right and pillow speaker
example on following page). For additional information and/or to purchase
an LG Pro:Centric patient remote or pillow speaker, please contact your
LG service representative.
Patient Remote and Pillow Speaker Functionality
Both the LG Pro:Centric patient remote and the LG Pro:Centric pillow
speaker provide access to Pro:Centric application features (via PORTAL,
INFO, and GUIDE buttons). See also “Installer Remote Control Typical
Key Functions” on the previous page for further information on button
functions. The patient remote also provides multi-code capability as
described below.
Set the Patient Remote IR Code Scheme
(Multi-code Feature)
This section describes how to set the LG Pro:Centric patient remote to
send unique IR codes based on “bed number” in a multi-TV single room
installation. The remote may be set from Bed 1 to Bed 4.
Note: The TV will always respond to the standard LG Installer Remote
IR code scheme, i.e., you can always use an Installer Remote with the
TV, regardless of its multi-code IR setting.
The following procedure describes how to set the bed number in the
TV’s Installer Menu and in the patient remote.
1. Installer Menu item 020 FEATURE LEVEL determines the additional
IR code scheme to which the TV will respond. Access the Installer
Menu, and set item 020 to the desired value (16 – 19).
The patient remote must now be set to match the FEATURE LEVEL
setting. That is, if item 020 is set to 17 for Bed 2, the patient remote
must also be set to multi-code Bed 2.
Note: By default, the patient remote IR code scheme is the same as
the standard LG Installer Remote IR code scheme.
2. On the patient remote, press and hold OK along with the desired
(bed) number key (1 – 4).
The LED at the top left of the remote will light for three seconds and
then turn OFF.
3. Once the LED turns OFF, release both keys on the remote.
4. Verify that the patient remote now controls the TV, based on your
settings.
Note: If necessary, you can restore the patient remote IR code scheme
to the standard LG Installer Remote IR code scheme by pressing and
holding OK on the remote along with the “0” key.
FLASHBK
PORTAL INFO
GUIDE
SAP
EXIT
ALARM TIMER
INPUT MUTE
CC
POWER
CH +
VOL +
VOL
-
CH -
OK

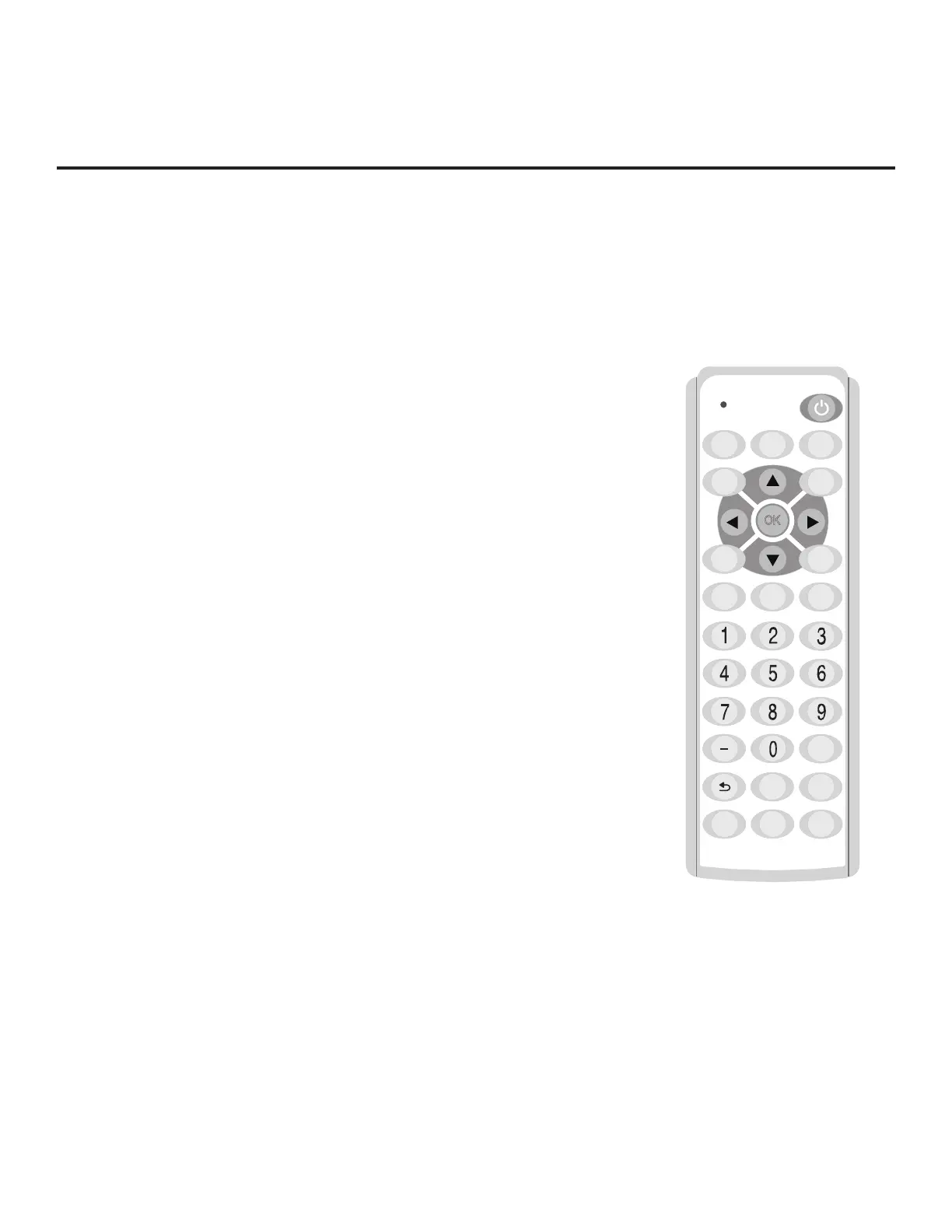

Typical LG
Pro:Centric Patient
Remote

LG 22LX570M Specifications

General

Panel life	- h
Pixel pitch	- mm
Response time	9 ms
Display diagonal	21.6 \
Display brightness	- cd/m²
Display resolution	1366 x 768 pixels
Display technology	LED
Contrast ratio (dynamic)	1000000:1
Contrast ratio (typical)	1000:1
Display number of colors	-
USB version	2.0
USB 2.0 ports quantity	1
Product color	Silver
Product design	Digital signage flat panel
Panel mounting interface	75 x 75 mm
RMS rated power	5 W
Power consumption (standby)	0.5 W
Power consumption (typical)	20 W
Sustainability certificates	RoHS, ENERGY STAR
Certification	UL, FCC, RoHS, cUL, NOM, Energy Star 7.0
Picture mode	Vivid, Standard, Eco, Cinema, Sport, Game

Weight and Dimensions

Depth	50.8 mm
Width	508 mm
Height	304.8 mm
Weight	2720.5 g
