Troubleshooting (Cont.)

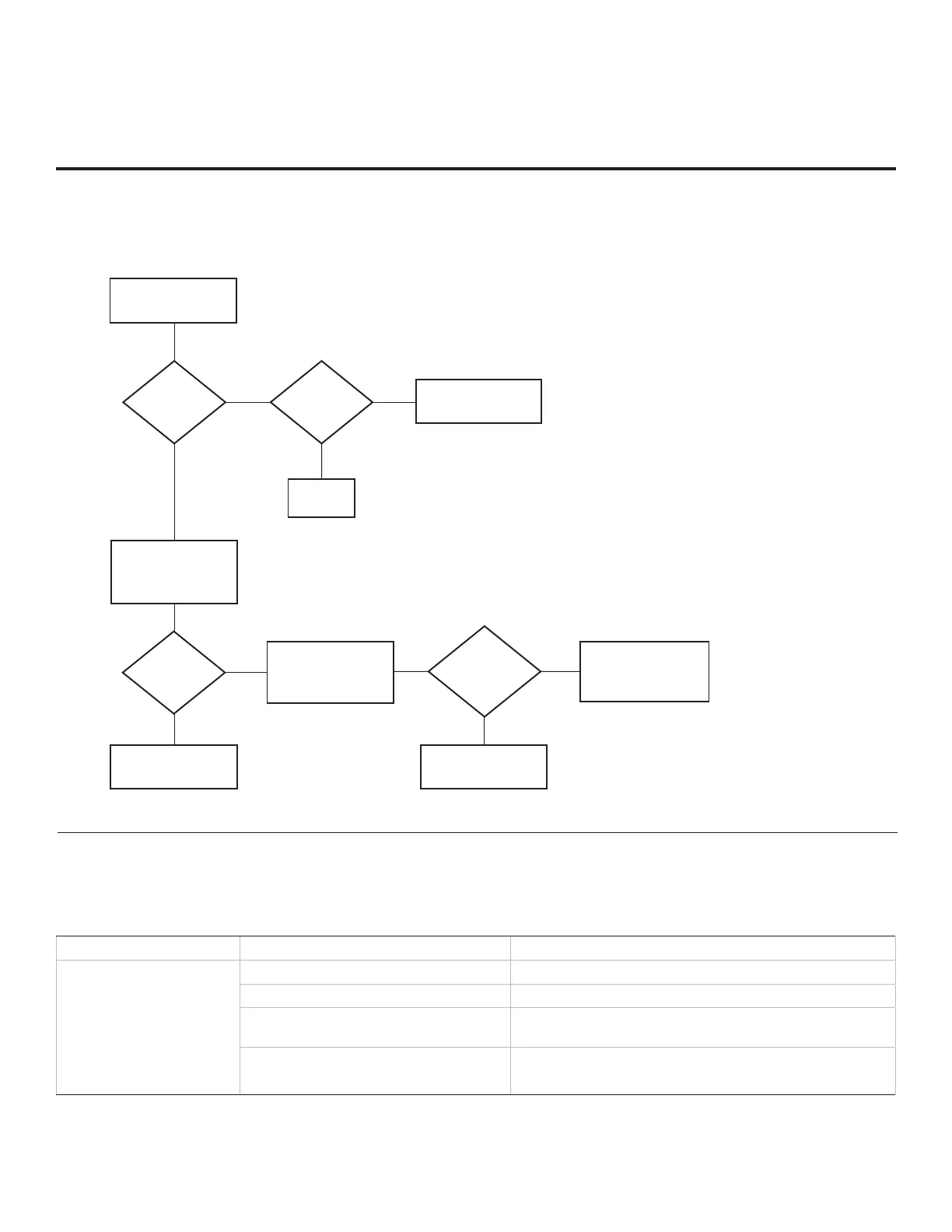

Commercial Mode Check / FTG Operation Troubleshooting
TV turned
ON?
Yes
No
Press POWER on
Installer Remote.
TV is not in Commercial
Mode. Call Technical
Support for assistance.
TV is in
Commercial Mode.
No
On-screen
menu display
no longer
toggles?
Yes
Press MENU
repeatedly as if to
access the Installer
Menu.
Function
Menu
on display?
Leave the TV set ON,
and press MENU on
the Installer Remote.
No
TV is in
Commercial Mode.
Yes
Plug into AC
Power outlet.
TV
connected
to AC
Power?
Bad
TV
No
Yes
FTG Operation Troubleshooting
The following table provides troubleshooting information for when the EBL is configured for FTG Mode operation.
Symptom Possible Cause(s) Solution(s)
Communication Error
(“Communications
Timeout”)
Cable(s) not connected. Check and connect communication cables.
TV not powered. Check/connect the TV power cord.
TV not turned ON. TV needs to be turned ON (default setting of Installer Menu
item 118 POWER SAVINGS).
Wrong COM
(communication) port.
In the FTG Device Configuration Application, select the
correct COM port for the cable being used.
Commercial Mode Check
Use this flowchart to determine whether the TV is currently in Commercial Mode.

LG 22LX570M Specifications

General

Panel life	- h
Pixel pitch	- mm
Response time	9 ms
Display diagonal	21.6 \
Display brightness	- cd/m²
Display resolution	1366 x 768 pixels
Display technology	LED
Contrast ratio (dynamic)	1000000:1
Contrast ratio (typical)	1000:1
Display number of colors	-
USB version	2.0
USB 2.0 ports quantity	1
Product color	Silver
Product design	Digital signage flat panel
Panel mounting interface	75 x 75 mm
RMS rated power	5 W
Power consumption (standby)	0.5 W
Power consumption (typical)	20 W
Sustainability certificates	RoHS, ENERGY STAR
Certification	UL, FCC, RoHS, cUL, NOM, Energy Star 7.0
Picture mode	Vivid, Standard, Eco, Cinema, Sport, Game

Weight and Dimensions

Depth	50.8 mm
Width	508 mm
Height	304.8 mm
Weight	2720.5 g
