LG 22LX570M User Manual

68
206-4281

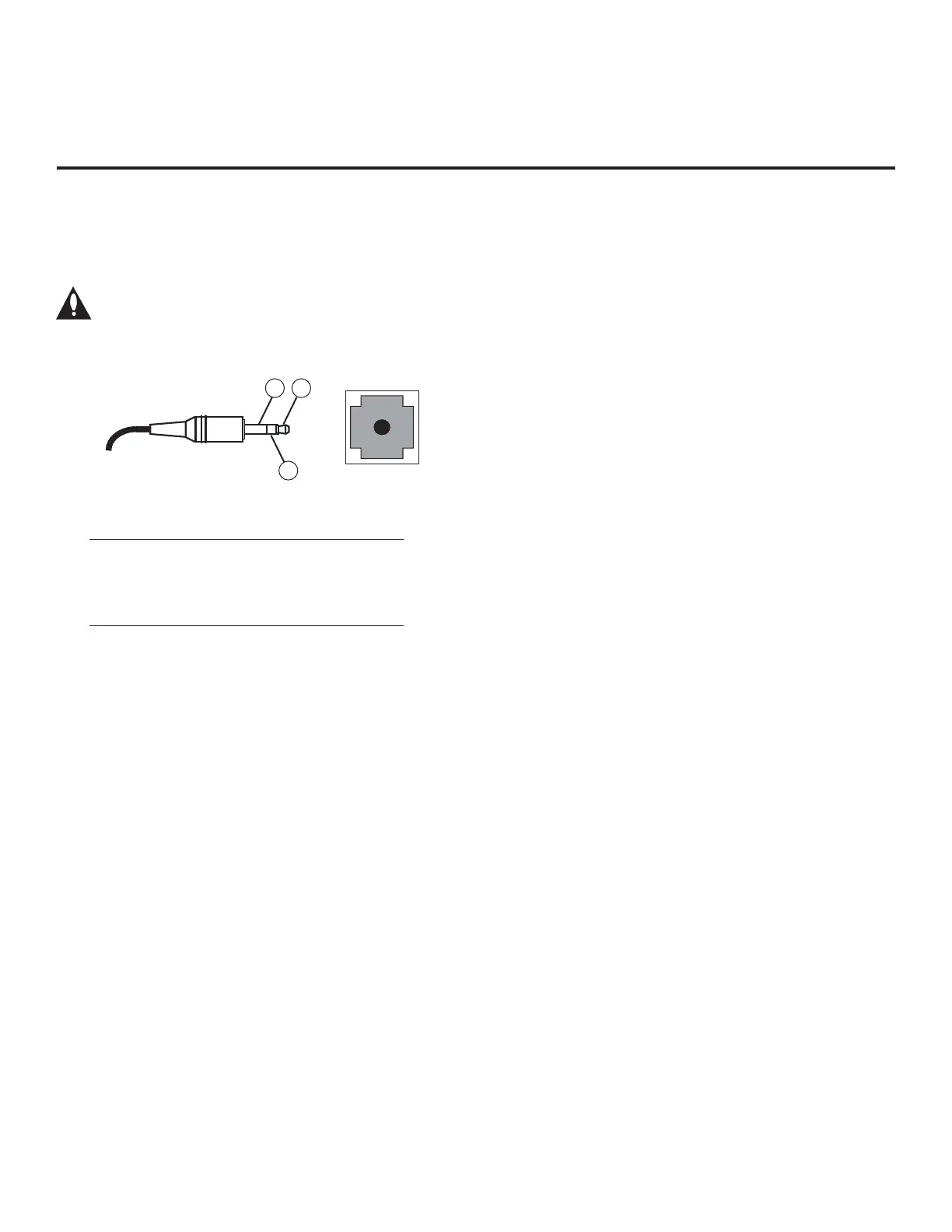

Reference: External Stereo Speaker Specications
SPEAKER OUT
LINE OUT
EXTERNAL SPEAKER_R- (Sleeve)
EXTERNAL SPEAKER_L- (Ring 1)
EXTERNAL SPEAKER_R+ (Ring 2)
EXTERNAL SPEAKER_L+ (Tip)
3
1
2
1 LEFT (Tip)
2 RIGHT (Ring)
3 GROUND (Sleeve)
The SPEAKER OUT / LINE OUT 3.5 mm stereo jack on the LX570M rear panel provides stereo speaker
signal outputs (xed speaker, variable speaker, or xed line level [amplier]) for external audio equipment.
Set Installer Menu item 097 AUDIO OUTPUT as required in accordance with external audio equipment
connected to the TV. Also, refer to the following diagram for pinout details.
Caution: Do NOT plug in a mono connector, as this may damage the TV.

LG 22LX570M Specifications

General

Panel life	- h
Pixel pitch	- mm
Response time	9 ms
Display diagonal	21.6 \
Display brightness	- cd/m²
Display resolution	1366 x 768 pixels
Display technology	LED
Contrast ratio (dynamic)	1000000:1
Contrast ratio (typical)	1000:1
Display number of colors	-
USB version	2.0
USB 2.0 ports quantity	1
Product color	Silver
Product design	Digital signage flat panel
Panel mounting interface	75 x 75 mm
RMS rated power	5 W
Power consumption (standby)	0.5 W
Power consumption (typical)	20 W
Sustainability certificates	RoHS, ENERGY STAR
Certification	UL, FCC, RoHS, cUL, NOM, Energy Star 7.0
Picture mode	Vivid, Standard, Eco, Cinema, Sport, Game

Weight and Dimensions

Depth	50.8 mm
Width	508 mm
Height	304.8 mm
Weight	2720.5 g
