LINET CliniCare 100 HF User Manual

D9U003VC0-0101_05 23
8.3 Connecting Air Pipes with Mattress
In order to switch mattress from reactive to active it is necessary to connect air pipes from the SCU to the mattress.
8.3.1 Mattress with MCM mode
Connect air pipes as follows:
► Connect all 3 air pipes with 3 air connectors on the mattress in the direction of arrow until it clicks into place.
► Ensure that all 3 air pipes are connected properly by pulling them back.

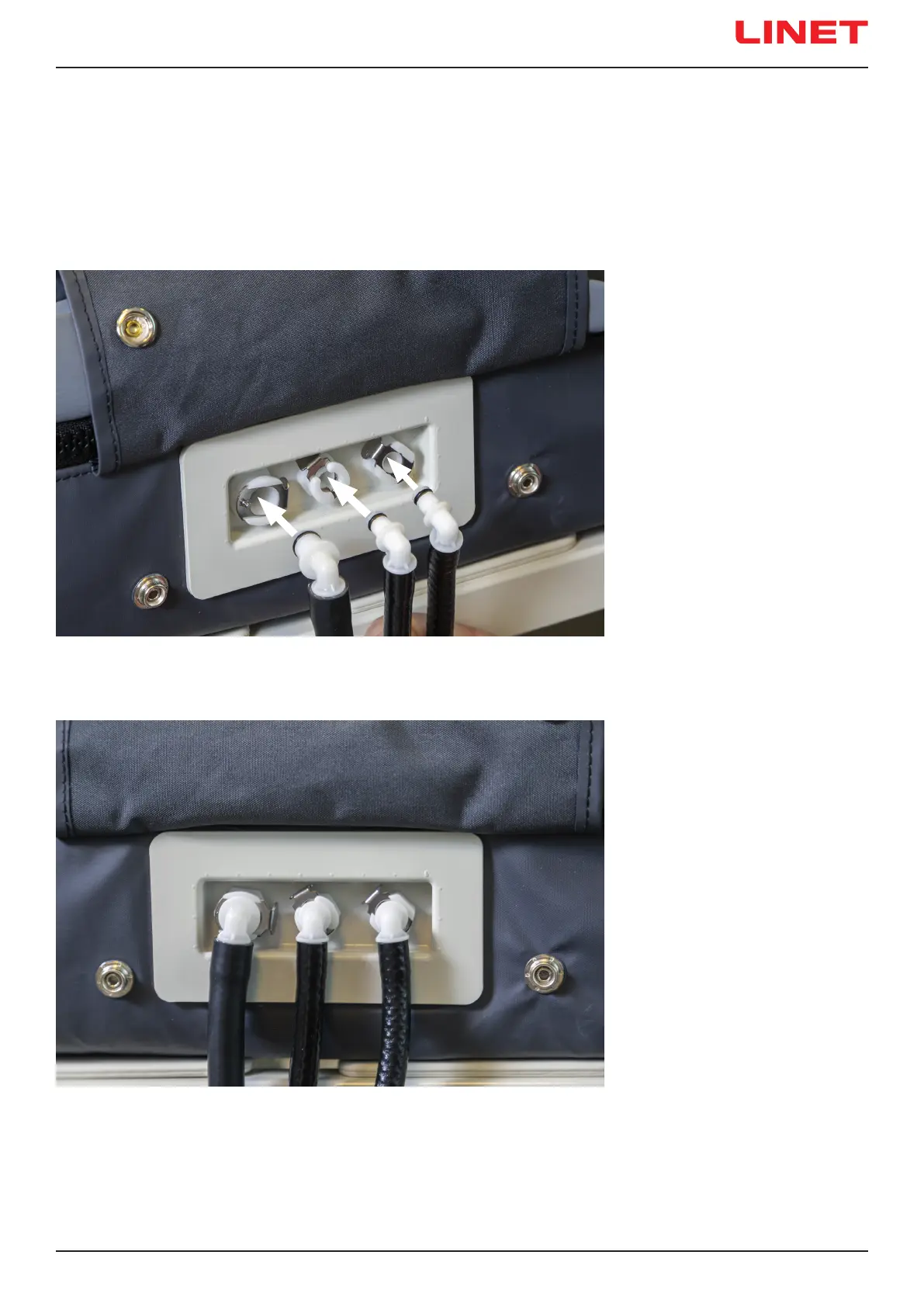

Fig. Connecting air pipes to the mattress with MCM mode
Fig. Connected air pipes to the mattress with MCM mode
