Rev:11.08.19 Page 44 CCD-0001573-08
Auto Leveling
NOTE: Once the automatic leveling cycle has
been started, it is important that there is
no movement in the travel trailer until the
travel trailer has completed the leveling
process. Failure to remain still during the
leveling cycle could have an effect on the
performance of the leveling system.
1. After unhitching from the tow vehicle and
parking the vehicle at a safe distance away

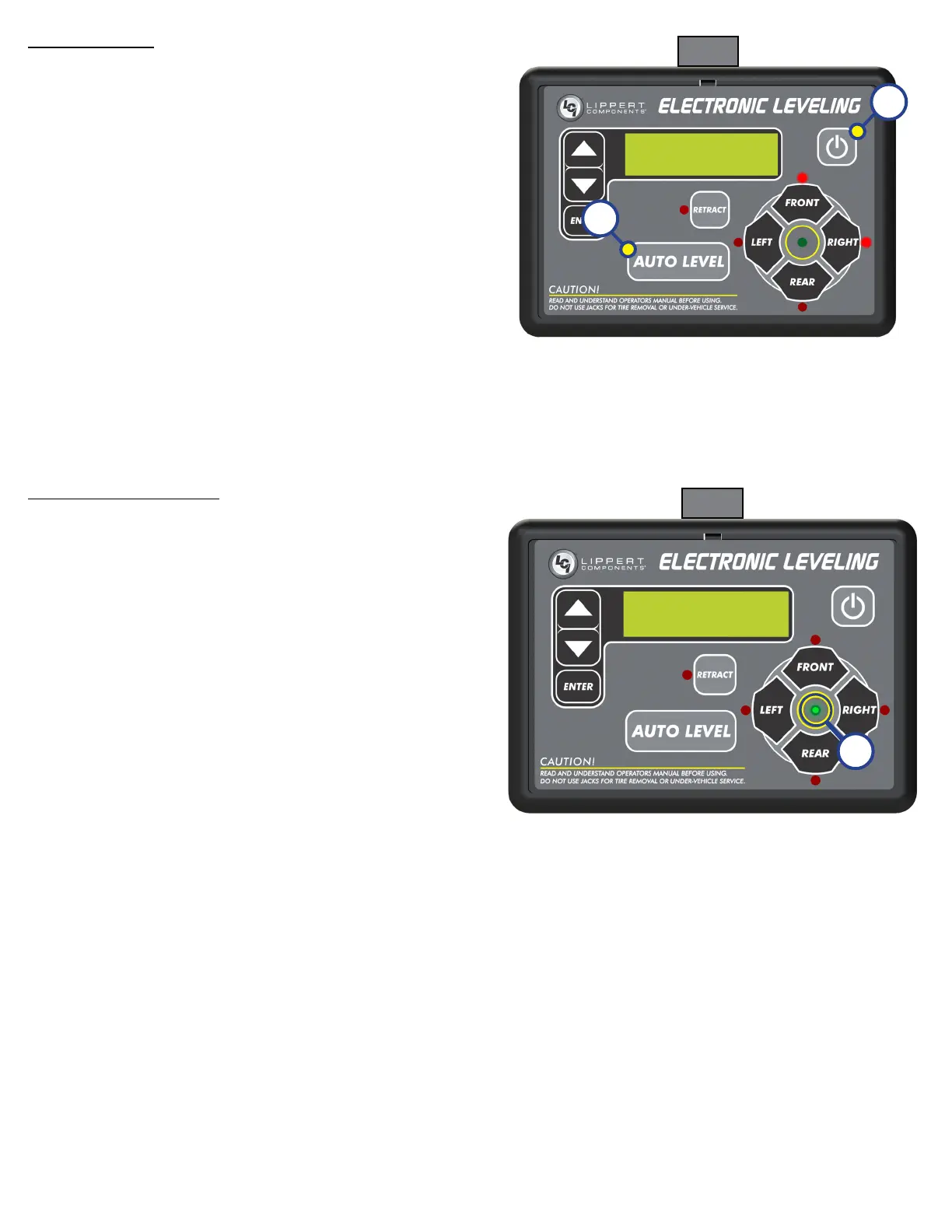

from the travel trailer, locate the leveling touch
pad on the unit (Fig. 3). It will usually be in a
side compartment near the front of the travel
trailer.
2. Press the “ON/OFF” button (Fig. 3A) and then
press “AUTO LEVEL” (Fig. 3B).
B
A
A
NOTE: If the AUTO LEVEL sequence does not perform as described above, place the system in manual
mode and test that the jacks operate correctly by pushing their coordinating buttons on the touch
pad; i.e. "FRONT" button operates only the front jacks, etc. If the jack functions are incorrect, check
that the correct jack wiring harnesses are plugged into the correct ports on the controller.
Auto Level Sequence
NOTE: Sequence may vary slightly based on the
height of the travel trailer coupler prior to
leveling.
1. When the Auto Level Sequence begins, the
front of the travel trailer will seek a position
near a level state using a combination of
the tongue jack and front jacks. During this
sequence the tongue jack will partially retract.
2. The rear jacks will then extend and complete a
rear leveling sequence.
3. When the rear leveling sequence has been
completed, the travel trailer will adjust front to
back and side-to-side.
4. Each jack will perform a final grounding touch.
5. Once this has been completed the LCD screen
will read "AUTO LEVEL SUCCESS."
6. The LED screen will then read "READY"
followed by the current battery voltage. The
green LED in the center of the four leveling
jack buttons will be illuminated (Fig. 4A).
Fig. 3
Fig. 4
