System settings
Connections
Antenna DVB

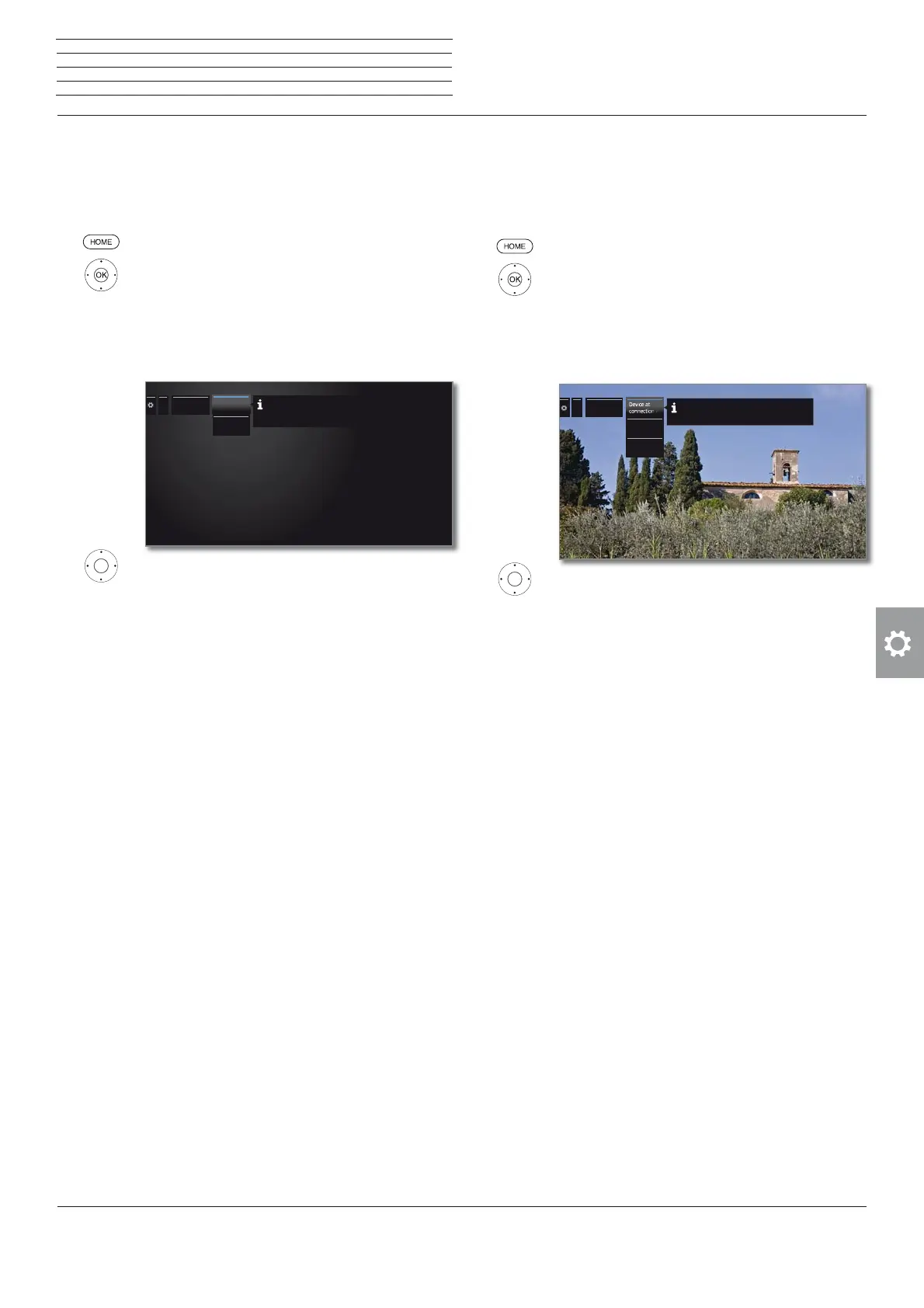

Here you can make settings for the DVB-T antenna and call the antenna
wizard for the DVB-S antenna.
Call Antenna DVB
HOME: Call Home view.
Mark System settings,
OK call System settings.
Mark Connections,
go to next column.
Mark Antenna DVB,
go to next column.
Select the desired setting,
call.
Explanations of the setting options in the antenna DVB menu:
Antenna
DVB-S
Here the antenna wizard starts guiding you through
all the settings relevant to the DVB-S antenna. The
settings of the DVB-S antenna wizard are explained
in the procedure of initial installation.
Antenna
DVB-T
Here you can set whether your DVB-T antenna needs
a supply voltage.
Antennas with an integrated amplifier need a supply
voltage on the antenna line. In this case, select Sup-
ply voltage 5V and confirm with OK.
Otherwise, select No supply voltage and confirm
also with OK.
Positioning/aligning DVB-T antenna
If you are receiving one or more DVB-T stations with picture and sound
interference then you should change the installation location and
alignment of the antenna. Ask your dealer to tell you which channels
are used to broadcast the DVB-T stations in your region.
A DVB-T station is received and selected.
Calling manual search (see chapter System settings, section Stations
– Manual TV/Radio scan).
Due to the preset stations, the signal source is already selected as
DVB-T. Position and align the antenna so that maximum C/N values
and levels are reached.
Search for DVB-T stations one after the other and compare values for
C/N and Level. Then position/align the antenna to the weakest station
so that maximum values for C/N and Level are obtained. The value
for BER should be as low as possible.
Thereafter, perform an automatic search for all DVB-T stations.
...
Antenna DVB
Antenna
DVB-S
Antenna
DVB-T
The following antenna wizard guides you through all the
necessary settings relevant to your antenna system.
AV connection settings
In the AV connection settings menu the parameters for the AV con-
nection socket can be adapted.
Calling the connections menu
HOME: Call Home view.
Mark System settings,
OK call System settings.
Mark Connections,
go to next column.
Mark AV connecting settings,
go to next column.
Select the desired setting,
call.
Explanations of setting possibilities in the AV connecting settings
menu:
Device at
connection
AV
Indicate here whether a set and, if yes, which one is
connected to the AV socket.
Signal type
You set the signal type of the device connected to AV
or AVS here. Normally, you should leave the setting to
Automatic VHS/SVHS; otherwise select a suitable
signal type. You can find out more from your dealer.
Allow
switching
voltage
If this function is activated, the video and audio of an
external unit connected to the AV connector (not at
AVS) will immediately be reproduced on all TV broad-
cast sites when playback is started up, provided that
the external unit supplies a switching voltage.
...
AV connect-
ing settings
Signal type
Please input whether a device is connected to the AV
socket and if so, which device.
Allow switch-
ing voltage
