Connect ID 40-55
User guide
12
Installing the TV set
Mounting options
Your Loewe specialist dealer can assist you in finding other mounting
options that correspond to your needs. Use exclusively Loewe mount-
ing options (e.g., wall bracket, floor stand), which you will find in the
chapter Accessories, section Mounting options.
After you have decided on a mounting option, follow the directions
found in the corresponding assembly instructions.
Installation notes
Choose a place for installing your TV set where no bright light or
sunlight shines directly onto the screen. This could cause reflections
which impair the picture.
3 times the screen diagonal can be taken as a guide value for the view-
ing distance (e.g., for a 46-inch set approx. 3.5 m for SD signal). The
viewing distance can be reduced with an HD signal.
Set covers
Covers for rear and side connections
In order to remove the rear side cable covers pull them simply from
the device.
To fit the cover, insert the lugs at the top edge of the cover into the
corresponding cut-outs in the rear panel and push up the cover until
it snaps in.
The side cover of the TV set can also be completely removed. For this,
open it as far as it will go and gently pull on the open cover.
The cover detaches from the holder and gives free access to the
connection area. To replace the cover, simply push it until it latches
back into place.
.

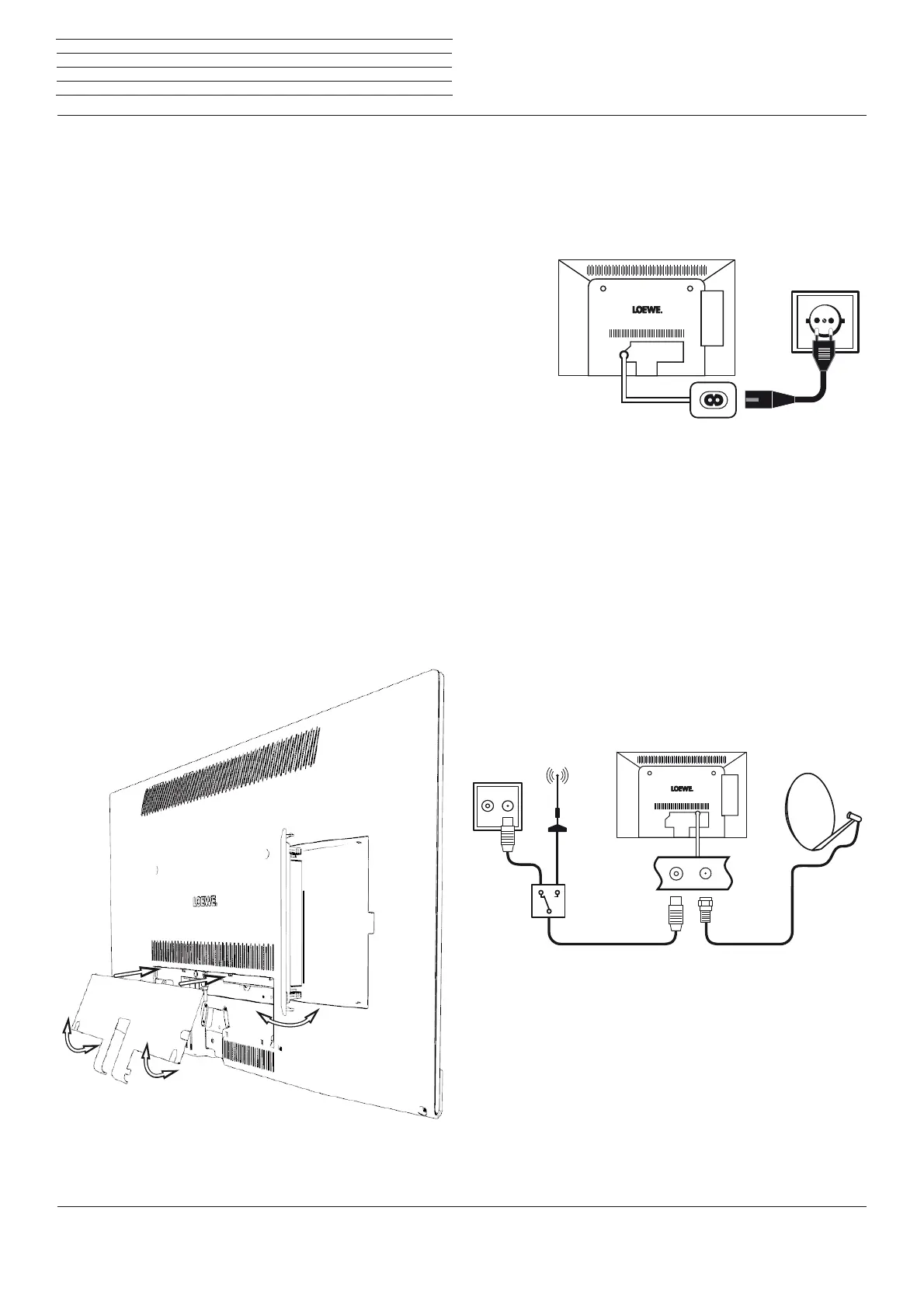

Connecting the TV set
Connecting to the mains supply
Remove the cover for the connections.
Connect the TV set to a 220-240V mains socket:
First plug the small plug of the power cable into the mains connection
on the back of the TV and then the large mains plug into a mains socket.
Connecting antennas
Cable (analogue) / DVB-C / DVB-T antenna:
Plug the cable of antenna, cable TV system or room antenna into the
ANT TV socket.
If you want to use analogue cables / DVB-C connection and a DVB-T
antenna together, use an external antenna switch (available from
your dealer).
Satellite antenna DVB-S:
Depending on the used satellite system, connect a connecting cable
from the multi-switch or directly from the LNC to the ANT-SAT socket
of the TV set respectively.
When connecting the TV set to a single cable community antenna,
connect the ANT-SAT socket directly to the appropriate SAT antenna
socket.
Ask your dealer in this regard.
R TV
Cable
analogue /
DVB-C
DVB-T DVB-S
Preparing the TV set
