External devices
Audio playback from external devices
Connect external AV devices (e.g., MP3 player, DVD player) for sound
reproduction to the AV input of the TV set.
Connecting an external appliance (e.g. MP3 player)
Connect the output (jack receptacle) of the MP3 player via S-video
adaptor
(1
to the AV socket of the TV set.
Plug the adaptor plug into the AV socket of the TV set so that the arrow
on the plug is visible.
Select AV input
The selection of the AV input for a device at the AV socket (con-
nection as described above) is describe here as an example. The
procedure is similar to the selection of the other AV inputs.
HOME: Call Home view.
 Mark Extras,
OK call Extras.
 Mark AV list,
OK call AV selection.
Mark desired AV source,
OK switch to AV source.
Start playback on the external device after selecting
the AV input.
Only playback of the audio signal from the AV source (screen
is off)
To play only the sound of a connected media player (e.g. MP3 player),
the AV sources can be selected so that the screen goes blank.
Switching off the screen reduces the power consumption of the
TV set.
Open the AV station list.
Select desired connection,
OK press at least for two seconds.

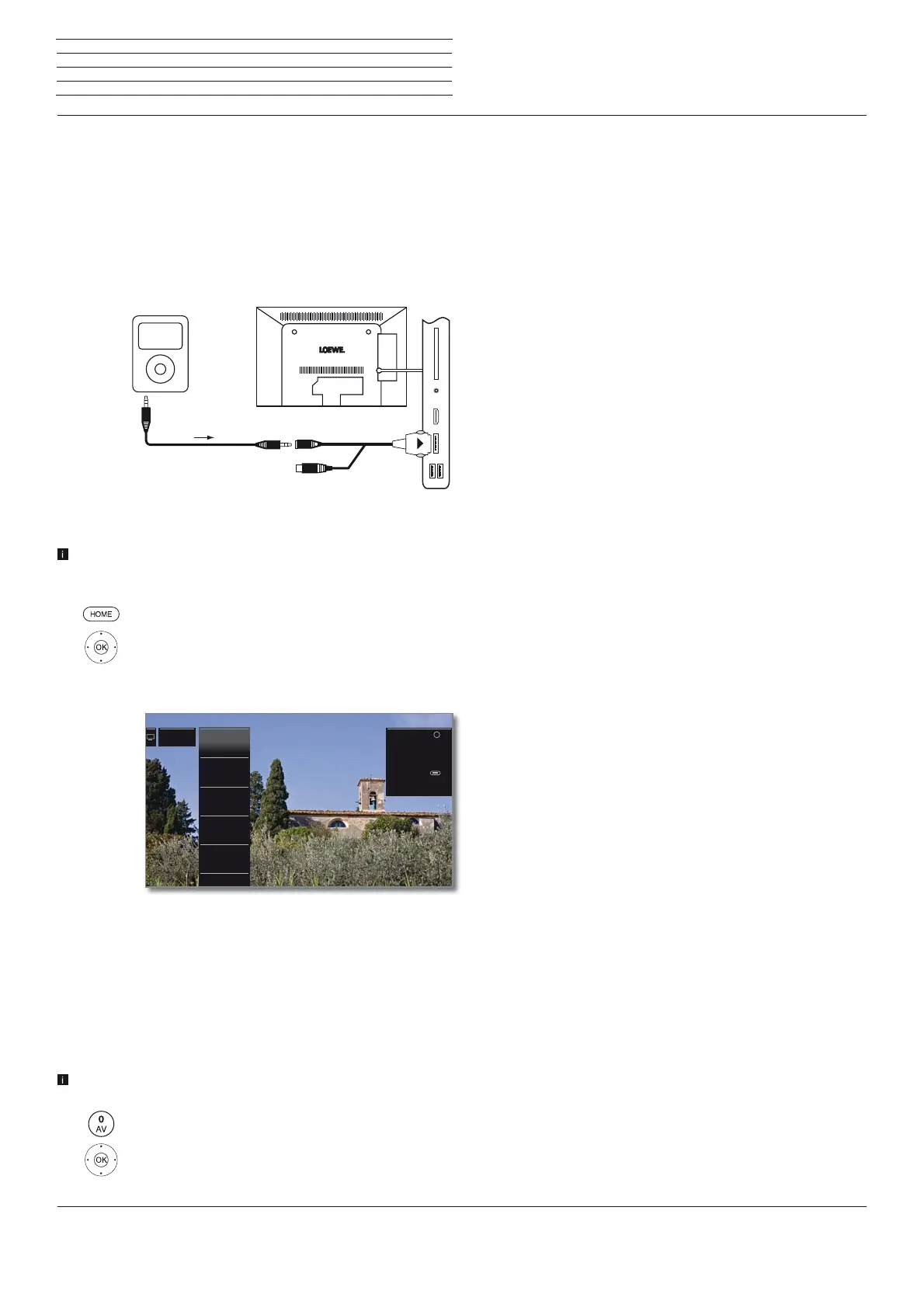

Connection example of an MP3 player
AV
MP3 player
TV set
2 HDMI 22 HDMI 2
1 HDMI 11 HDMI 1
3 HDMI 33 HDMI 3
4 HDMI 44 HDMI 4
5 PC IN5 PC IN
6 AVS
AV list
Note: If you press for
at least two seconds to
switch to the selected
channel, the screen
switches off and you will
only hear the sound.
With the button
(green), you can switch
the screen back on and
off.
OK
Serial interface RS-232C (RJ12)
You can connect either the Loewe Individual Sound Projector ID or a
home network system of different manufacturers (e.g. AMX, Crestron)
to your TV set via the RS-232C (RJ12) interface.
As to the configuration of the RS-232C (RJ12) interface and for further
information on the various home networking systems contact your
dealer please.
(1
Adapter set is available as an accessory (see chapter Accessories).
