2 -5

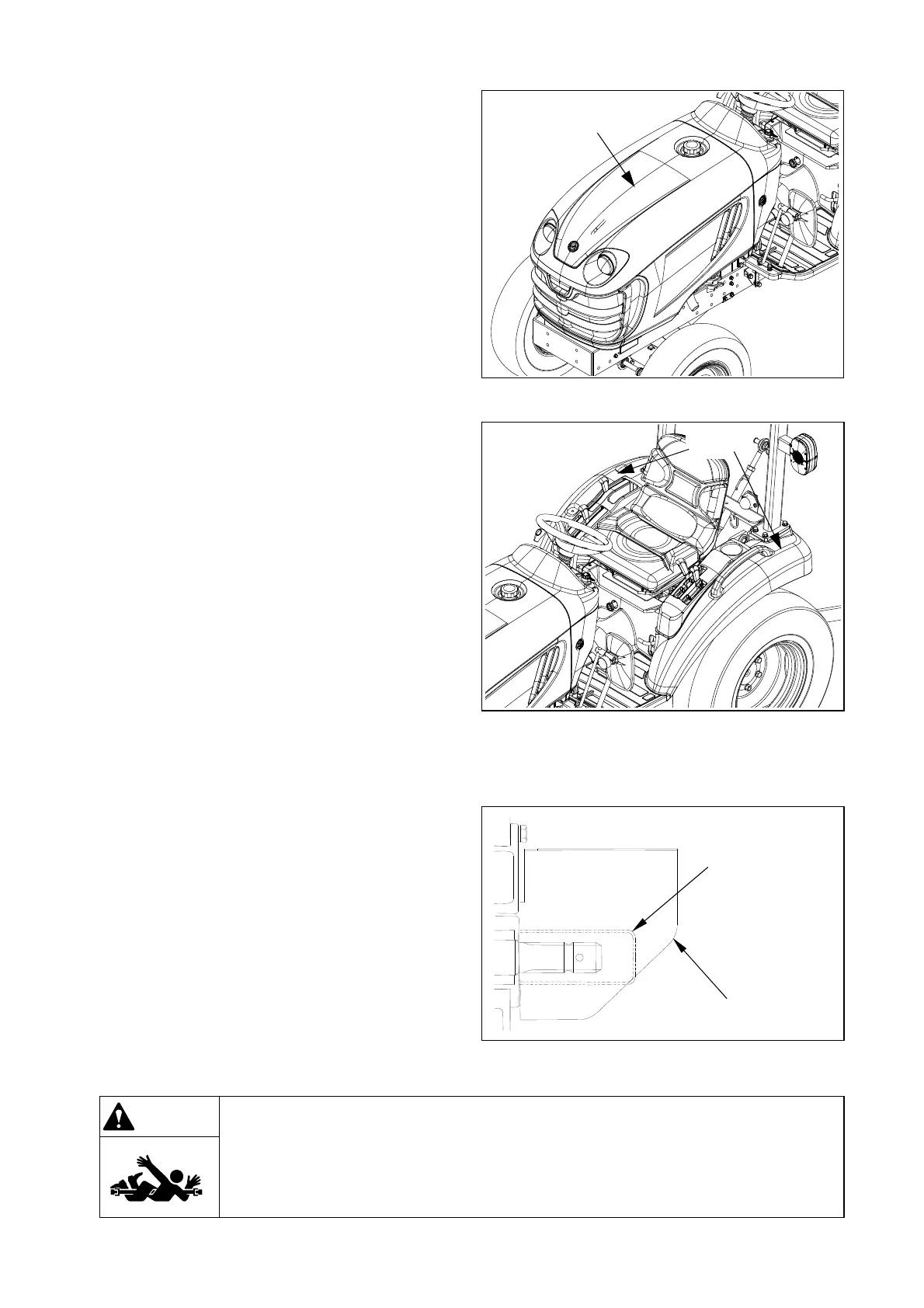

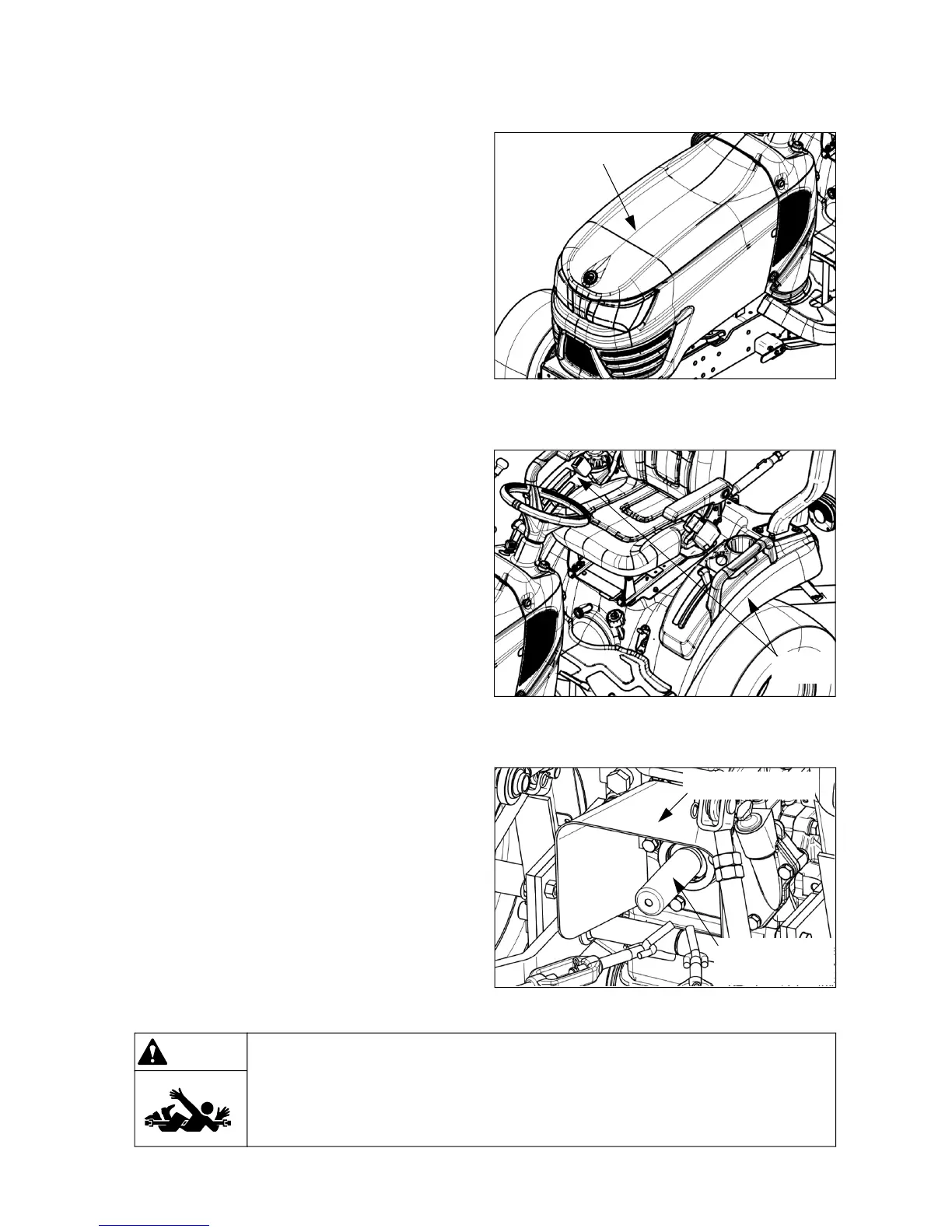

2-2. Safety Device
(1) Hood (Bonnet)
z Hood is a protection device to prevent an
unintended access to the rotating parts around
engine ; cooling fan, fan belt and rotating shaft
and pulley.
z Do not remove and modify the hood.
(2) Fender
z Fender is a protection device to prevent an
unintended access to the rear tires and to
prevent mud from irrupting to the driver.
z Do not remove and modify the fender.
Hood (Bonnet)
Fender
Warning
▶ If you contact the rotating shaft, it may cause a serious injury.
- DO NOT touch shaft which is rotating.
- DO NOT remove the safety cover.
- Avoid loose clothes that can easily be rolled up in the revolving shaft.
(3) PTO safety cover and protection cap
PTO protection
cap
PTO safety cover
z PTO safety cover is a protection device to prevent
an unintended access to the PTO shaft and to
prevent an accident causing by the rotating drive
shaft.
z Do not remove the PTO safety cover. If the PTO
safety cover or protection cap is damaged or
removed, replace it with a genuine part.
z Do not step on the PTO safety cover.
z After using the PTO shaft, apply grease and insert
the PTO shaft protection cap.
