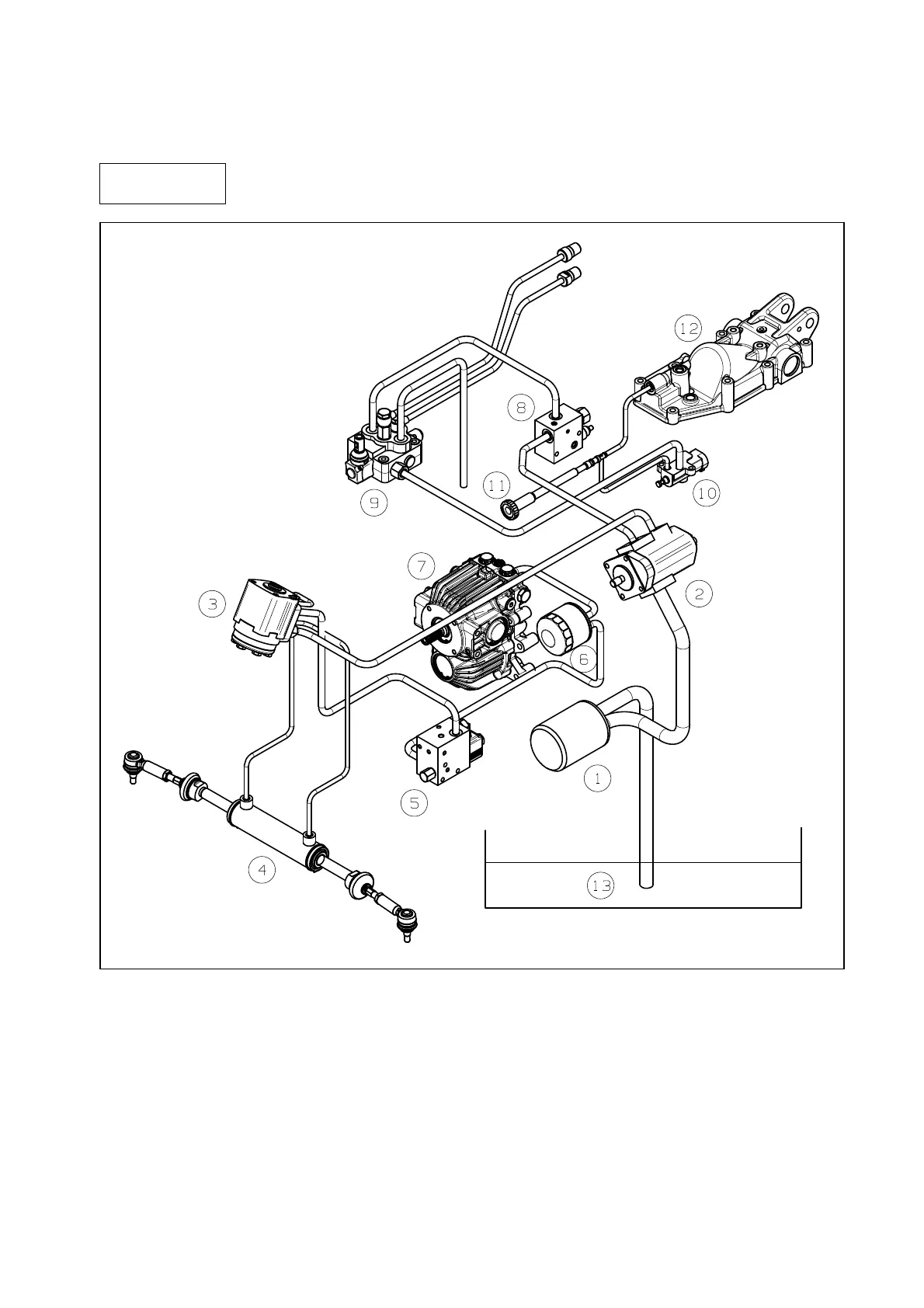

(5) Hydraulic System Diagram
HST type
1. Hydraulic
oil filter
2. Hydr
aulic pump
3. Steeri
ng unit
4. Steeri
ng cylinde
r
5. Independent PTO
valve
6. HST filter
7. HST uni
t
8. Relief valve
9. Remote cont
rol valve
(optiona
l)
10. Hydra
ulic lift control v
alve
11. Down speed contr
ol valve
12. Hydr
aulic housing
13. Oil tank
(Transmission case)
48
50
Table of Contents
Table of Contents
1
General Notices for Safety
5
Before Using the Tractor
5
Safety Precautions (Read this for Safety before Using)
8
Notices before Using the Tractor
8
Notices When Starting Engine
11
Notices While Operating/Using the Tractor
12
Notices When Connecting Implement
14
Notices When Towing the Tractor
15
Notices When Transporting the Tractor
15
Notices When Servicing the Tractor after Work
16
Notices When Handling Diesel Fuel
17
Notices When Leaving the Tractor
18
Notices Relating to Toxic Substances
18
Long-Term Storage
19
Preparation for Storage
19
Check & Maintenance During Storage
20
Preparation for Reuse
20
Notices for "Use & Disposal" Related to the Environment
21
Symbols
22
Safety Decals
23
Handling and Maintenance of Safety Decals
23
Safety Decals and Attaching Position
23
Instruction for Safe Operation
28
The Name of each Part
28
Boarding and Exiting the Tractor
29
Boarding the Tractor
29
Driver's Seat (HST Type)
29
Seat Adjustment
30
Seat Belt
30
Exiting the Tractor
31
Safety Device
32
Hood (Bonnet)
32
Fender
32
PTO Safety Cover and Protection Cap
32
Roll-Over Protective Structure (ROPS)
33
Instruments and Controls
34
Instrument Panel
35
Key Switch
37
Turn Signal Light Switch
37
Light Switch (Optional)
38
Horn Switch (if Fitted)
38
Hazard Warning Light Switch
39
HST Forward/ Reverse Pedal (HST Type)
41
Cruise Control Lever (HST Type)
41
Left / Right-Hand Side Levers and Pedals
42
PTO Switch
42
PTO Select Lever
43
Work Light Switch
43
Range Gear Shift Lever
43
4WD Lever
44
Differential Lock Pedal
44
Hydraulic System (1) Safety Precautions
45
Steering System
46
Remote Control Lever and Quick Coupler (Optional)
48
Hydraulic System Diagram
49
Operation and Work
50
Engine Start and Stop
50
Engine Start
50
Start in Cold Weather
51
Engine Stop
51
How to Drive and How to Stop
52
How to Drive
52
Changing Speed
53
Emergency Stop
53
Stopping Tractor
54
Driving Tractor on the Road
55
Parking
56
How to Handle New Tractor
57
Check Points
57
Notices in Handling New Tractor
57
Attaching Implement
58
3-Point Linkage
58
Power Take-Off (PTO) Shaft
62
Hitch and Drawbar (Optional)
65
7-Pole Connector (Optional)
66
Technically Maximum Permissible Mass
67
Adjusting Wheel Tracks and Tire Replacement
68
Tires and Load Capacity
68
Using Front-End Loader (Optional)
69
Adjusting Steering Angle
71
Recommended Maximum Specification of Implements
72
Driving Speed
73
Lubrication and Maintenance
74
Access for Maintenance
74
Maintenance Chart
75
Lubricants and Capacity
77
First 50 Hour Check
78
Engine Oil
79
Fuel Tank
80
Instrument Panel & Indicators
80
Turn Signal Lights, Lights and Horn
81
Engine Coolant
82
Air Cleaner (Dry Type)
82
Cleaning of Radiator and Radiator Screen
83
Tire Air Pressure and Damage
83
Tightening State of Bolts and Nuts of each Part
84
Adjusting HST Control Linkage (HST Type)
84
Adjustment of Brake Pedal Play
85
Lubricating Grease
86
Cleaning of Radiator and Radiator Screen
86
Checking Transmission Oil
86
Checking Front Axle Oil
87
Battery Check
87
Air Cleaner (Dry Type)
87
Hydraulic Hoses and Leakage
87
Every 300 Hour Check
88
Replacing Engine Oil and Filter
88
Replacing Hydraulic Oil Filter
89
Tension Adjustment of Fan Belt
90
Replacing Air Cleaner Element (Dry Type)
90
Toe-In
91
Every 600 Hour Check
92
Changing Front Axle Oil
92
Changing Transmission Oil
92
Replacing Fuel Filter Cartridge
93
Adjusting Engine Valve Clearance
93
Checking Nozzle Injection Pressure
93
Every 2-Year Check
94
Replacement of Engine Coolant
94
General Maintenance (When Required)
95
Air-Bleeding from Fuel System
95
Fuse & Main Fuse
97
Battery Handling and Notices
99
Troubleshooting
103
Dimension and Specification
109
