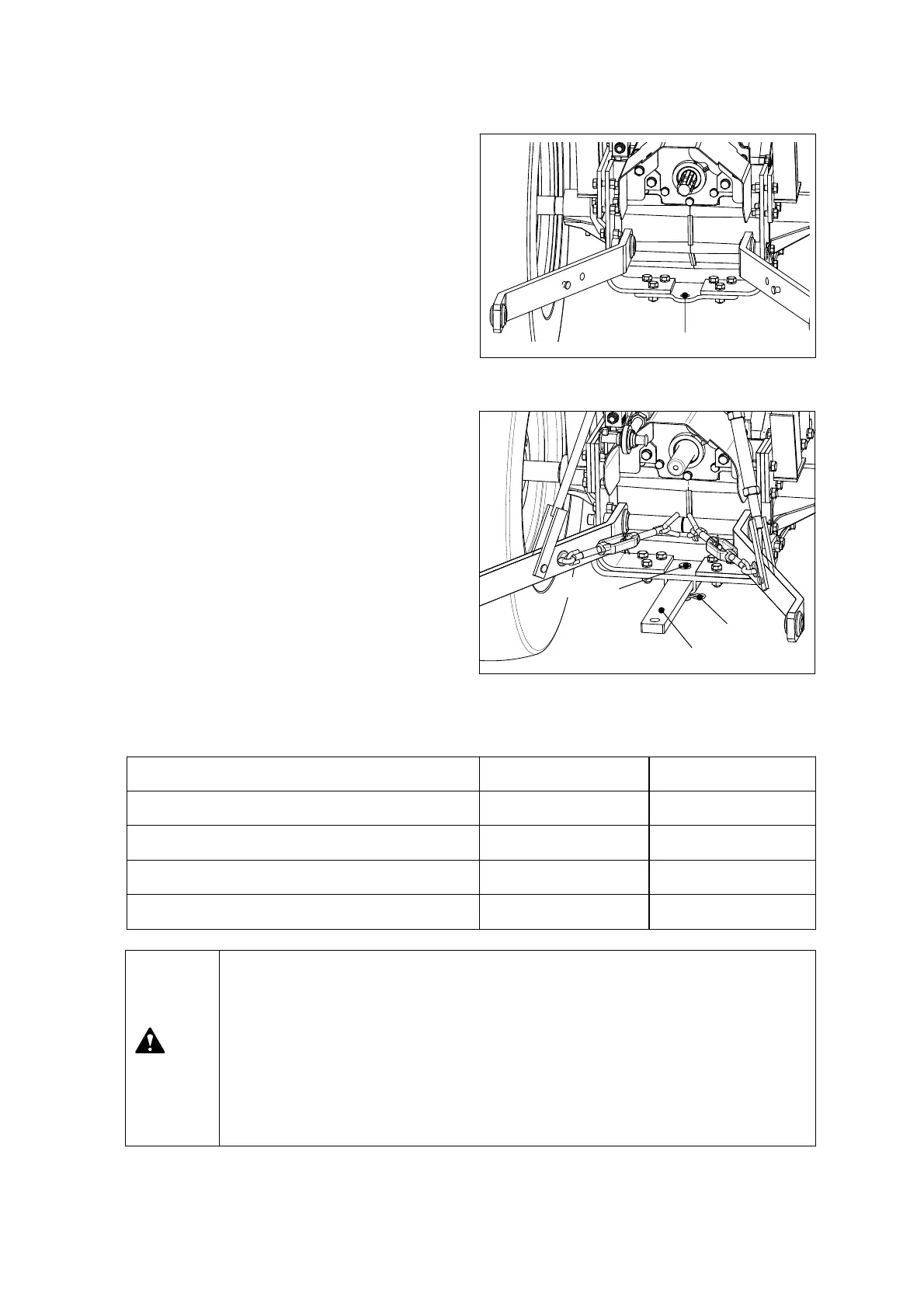

① Hitch
z Vertical load : 400kg (882lbs)
z Horizontal load : 1600kg (3527lbs)
② Drawbar (w/clevis)
z It is used to tow the equipments having 2 axles.
z It is available to adjust the length of draw bar
(telescopic type) after removing snap pin and
lock pin in the right figure. After adjusting the
length, assemble the pins correctly.
z Insert the hitch pin and snap pin correctly after
attaching/detaching the equipment.
z Vertical load : 250kg (551lbs) – when pulled
400kg (882lbs) – when pushed
z Horizontal load : 1600kg (3527lbs)
(3) Hitch and Drawbar (optional)
z When attaching towing equipments, use the
hitch or drawbar. DO NOT use the 3-point
linkage or other parts. If so, the tractor could
turnover.
z When attaching towing equipments, do not
exceed the maximum permissible vertical and
horizontal loads.
Hitch
▶ Pulling from the tractor rear axle or any point above the axle may cause the tractor
to overturn. Use always the drawbar or hitch for pulling work.
▶ Do not tow equipment without brakes, weighing more than twice the tractor weight.
▶ When locking the hitch or drawbar with pin after aligning to the towing equipment,
apply the parking brake and stop the engine.
▶ Before transporting equipment on public roads, make sure you comply with your
local traffic regulation.
Caution
Hitch Drawbar (w/clevis)
Unbraked towable mass 800kg (1764 lb) 800kg (1764 lb)
Independently braked towable mass 1600kg (3527 lb) 1600kg (3527 lb)
Inertia-braked towable mass 1600kg (3527 lb) 1600kg (3527 lb)
Hydraulic or pneumatic braked towable mass N/A N/A
Drawbar
Snap pin
Lock pin
To Next Page
