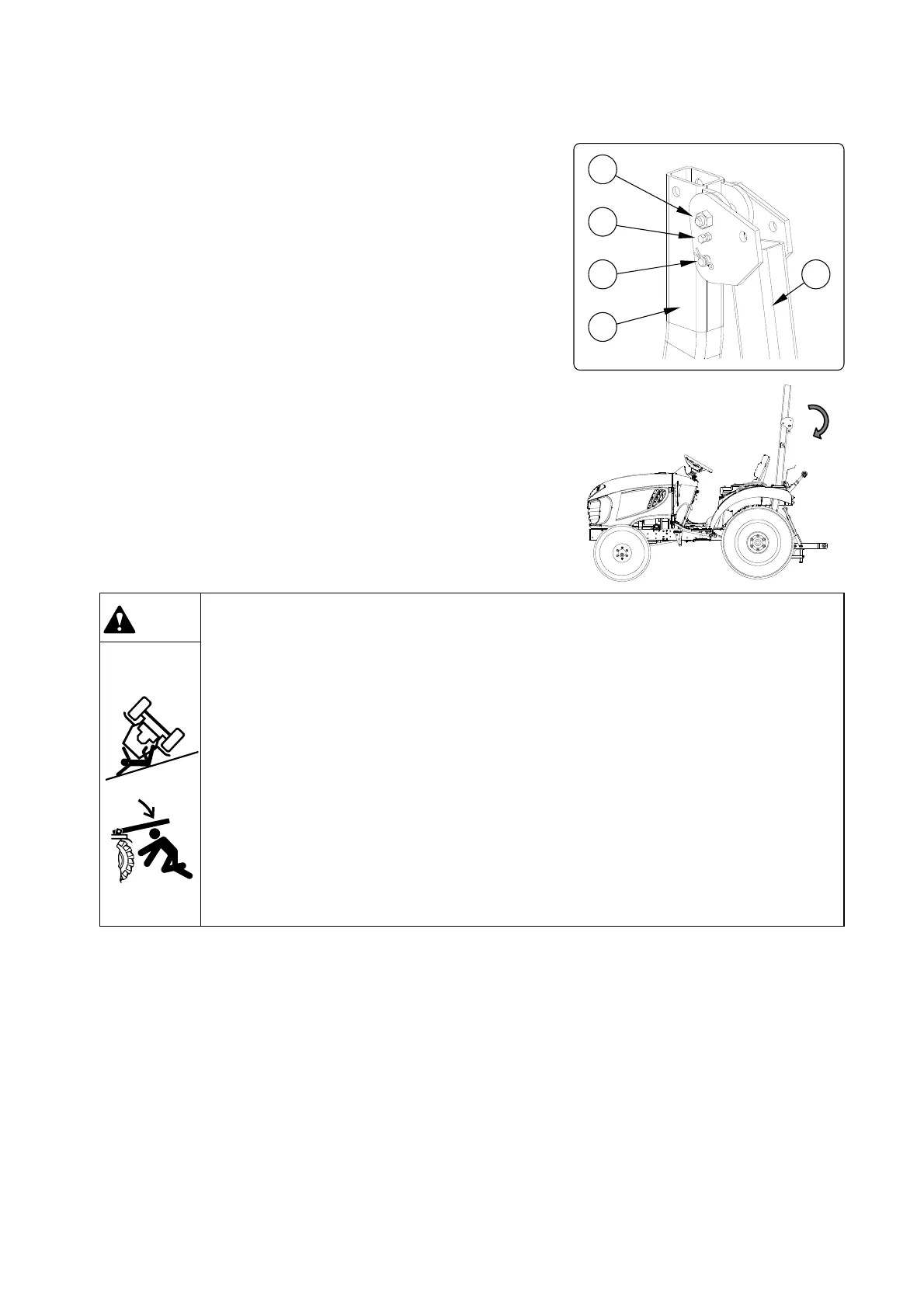

z How to fold the Safety frame.
1. Loosen the safety frame bolts②④and nuts (both sides)
loosely. (Do not unfasten it completely)
2. Remove the pins③ on the both side and fold the safety frame
backward.
- Be careful of the possibility that your head, hand and shoulder
might be hurt by sudden folding result from the weight of the
safety frame.
3. Set the holes of the frame ① and ⑤ in line, and put the pins③
into the hole to fix the safety frame and apply the snap pin.
4. Fasten the bolts②④and nuts (both sides) tightly.
z When standing the safety frame up, follow the same
procedure.
2
4
3
5
1
(4) Roll-Over Protective Structure (ROPS)
① Foldable Safety frame (Roll-bar type)
Warning
▶ Do not change or disassemble the safety frame arbitrarily for safety.
▶ Unless the safety frame is applied correctly, it may cause a serious accident on
tractor when being overturned.
- Be sure to stand the safety frame up completely and assemble the bolts, pins and
nuts in correctly.
▶ In case of folding the safety frame.
- Do cooperate with more than 2 people when folding or standing up the safety
frame as it’s heavy.
- Be careful not to be injured by sudden folding, which might occur when folding or
standing up the safety frame, results from its weight.
- Do not wear seatbelt when the safety frame is folded down.
- Do stand the safety frame up again as soon as the work is finished.
