5 -1

z For safety, the hood must be closed and

correctly latched before operating the tractor.

z The hood is hinged at the rear one bar is

attached inside to support the hood for easy

access to the engine.

z To open the hood, pull the hood grip and lift the

hood up and place the supporting bar to lock

position.

z To close the hood, move the supporting bar to

unlock position and lay down the hood and push

it down to lock position slightly.

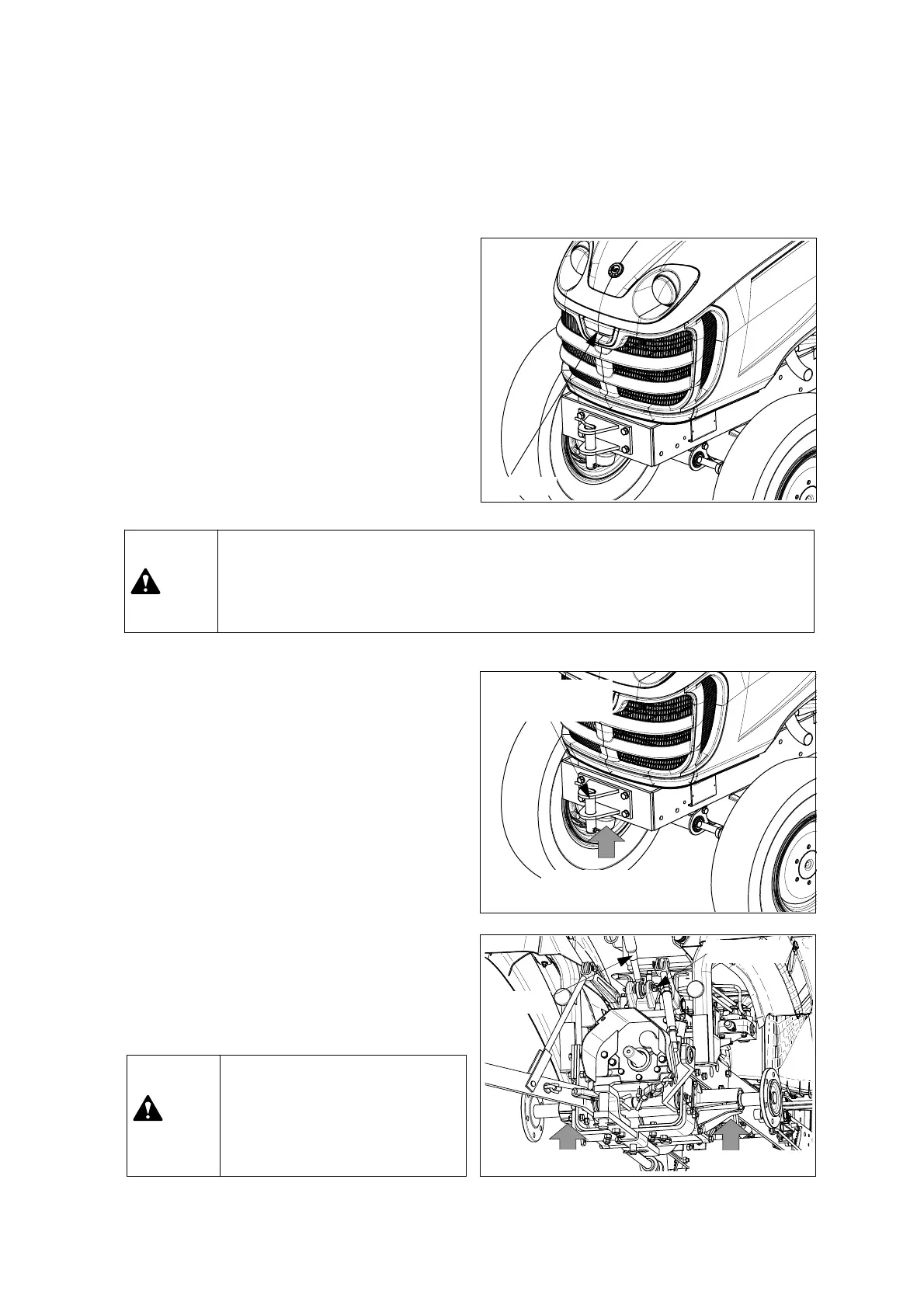

5-1. Access for maintenance

① Opening Hood

▶ After the engine has stopped completely, you have to open the hood for check.

▶ If you open the hood while the engine is running, it can cause serious damage by

the intended or unintended access to rotating shaft, pulley, V-belt, cooling fan of the

engine or engine application parts. BE CAREFUL.

Caution

Hood grip

5. Lubrication and Maintenance

z The jacking points for maintenance is depending

on serviced parts case by case. Do not hesitate

to contact your authorized dealer for asking.

z Do not use the front axle assembly or steering

linkage and cylinder for jacking point. These

components have some rotating pivots and/or

does not have enough structural strength.

z For general maintenance, use flat surface under

the engine frame end or bumper(If fitted) for

jacking point, and connect additionally hoist to

the front towing hook for safety.

z For rear jacking points, flat surface under the

rear axle housing is recommended, and

additionally use the top-link bracket and its pin

for lifting point after removing the top-link.

② Jacking points

Front jacking point

Front towing hook

(optional)

Rear jacking point

LS tractor J2023H User Manual
