4 -13

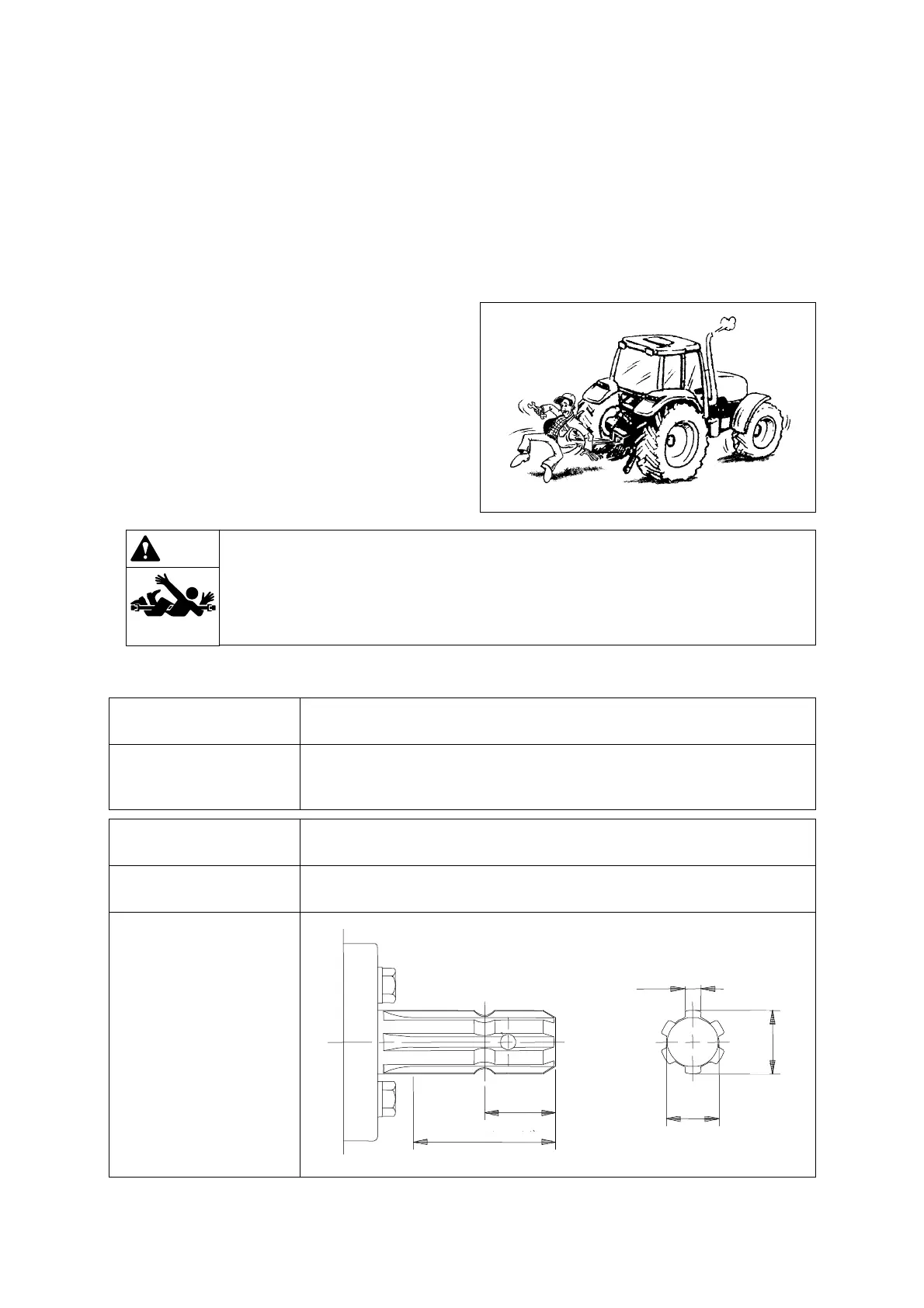

(2) Power take-off (PTO) shaft
① Safety precautions
z When PTO shaft is rotating, NEVER APPROACH the shaft.
z Check if PTO shield is attached correctly. If the shield is removed or damaged, replace it with a new
one.
z Suitable Clothes & Protect Entanglement :
When checking or attaching implement to the PTO
shaft, wear tight fitting clothes and safety
equipment instead of loose or long clothes. Also,
slippers, high heel shoes are not suitable. Wear
the suitable clothes.
Warning
▶Do not approach the rotating shaft such as PTO shaft or cooling fan, especially,
with loose clothing and long clothes. The entanglement in rotating shaft can cause
serious injury or death.
▶Stop the engine and be sure PTO shaft is stopped before getting near it.
② Specification and Dimension of Rear PTO shaft
REAR PTO
PTO / Engine speed
Revolution direction
Ground clearance
1 Speed gear (6T)
540 / 2603 rpm
Clockwise (When looking at PTO shaft end)
Shaft dimension
(Unit : inch)
(3.0 in)
(1.5 in)
(0.34 in)
(1.1 in)
(1 3/8 in)
= Tire radius + 115mm (4.5 in.)
To Next Page
