4 -15

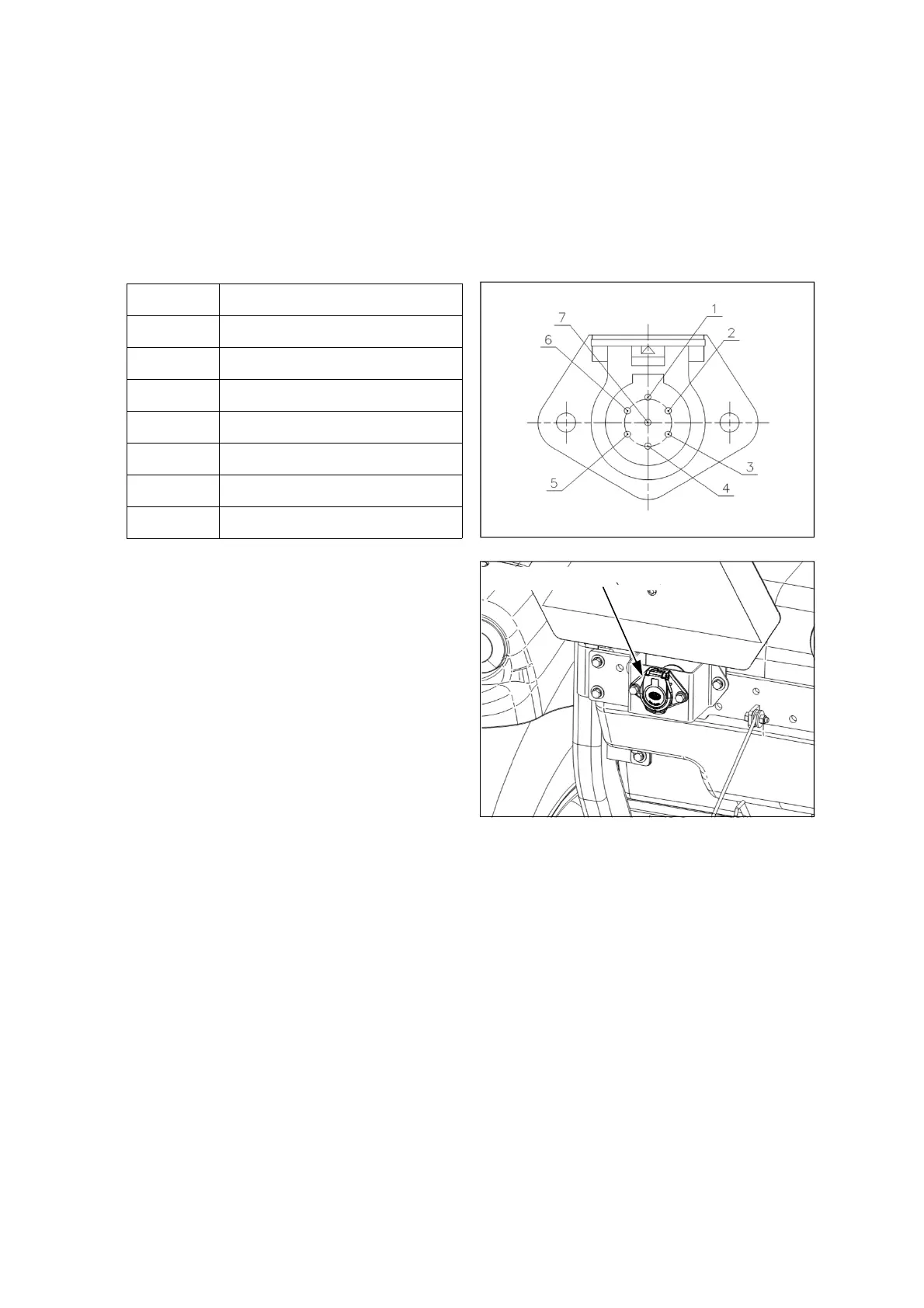

(3) 7-Pole connector (optional)

 One of the standard 7-pole trailer connectors is provided and is mounted at the rear of the tractor.

The connections of the 7-pole connector (viewed from the rear of the tractor) are as follows;

 ASAE Version

Pin No. Function

1 Ground (Earth)

2 Working light

3 Left turn signal light

4 Brake light

5 Right turn signal light

6 License number plate light

7 Auxiliary

7-Pole Connector (ASAE)
