5 -29
Adjuster
Locking nut

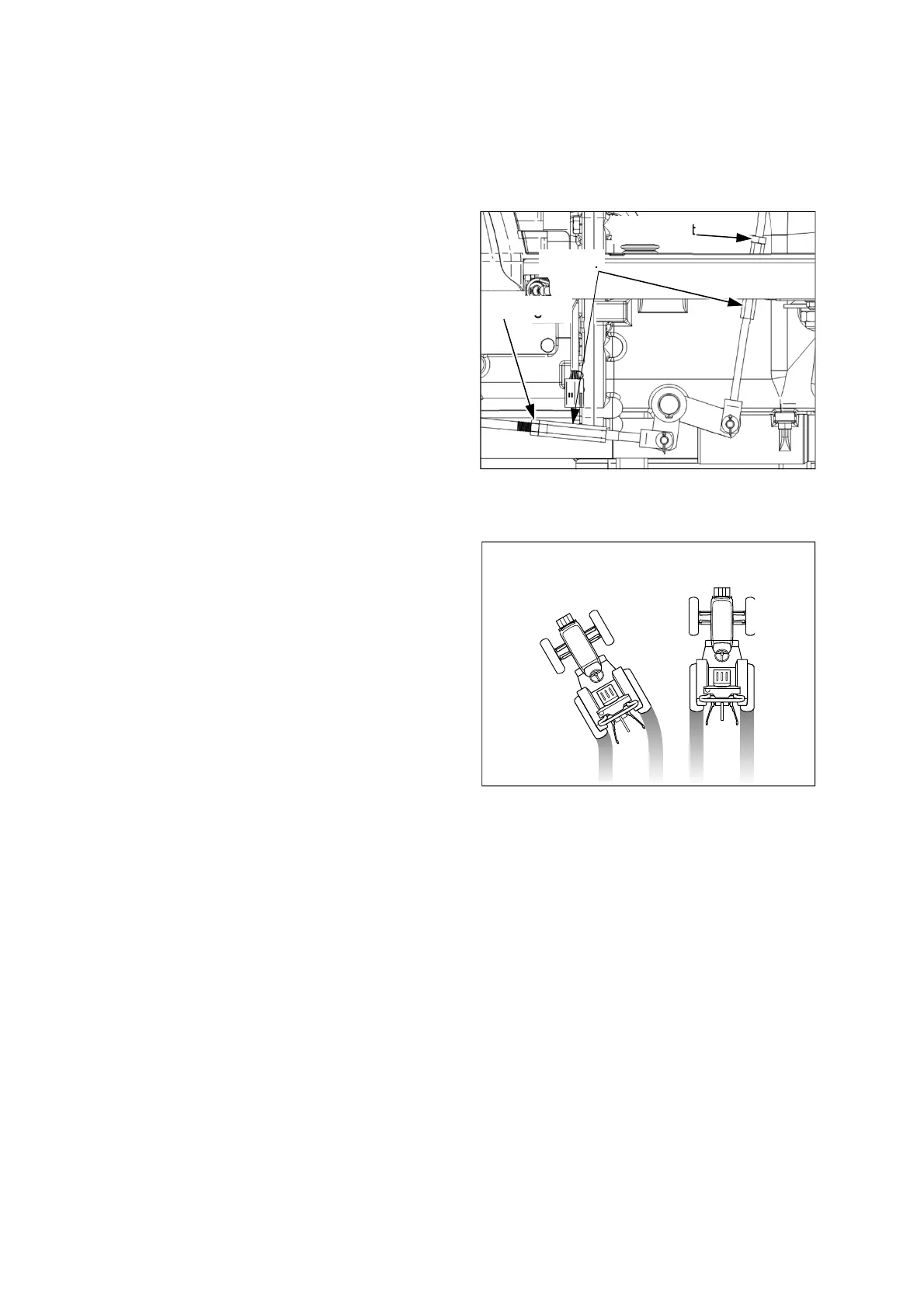

(11) Adjustment of Brake pedal
play
Normal distance: 50~60mm. (2.0~2.4 in.)
If the pedal play distance of the brake pedals is
over the normal distance, adjust it as below.
1. Loosen the locking nut and turn adjuster to the
left/right direction.
2. If the brake rod is tightened, the pedal play will
be reduced, and if loosened, it will be increased.
3. After adjusting the pedal play, tighten the locking
nut.
4. Check if the brake distance of the left and right
brake is same as below.
Checking the brake distance
1. Connect the left and right brake pedal with the
brake pedal latch.
2. Check the skid marks of the tires or stability of
the tractor while driving at a suitable speed.
3. If the brake distance is different as shown in the
right figure, adjust the pedal play again.
4. If the vehicle is turned to the left-hand side when
checking the braking distance, loosen the left-
hand brake rod or tighten the right-hand brake
rod with checking the brake pedal play distance.
Left/ Right brake distance
is different.
Normal
Locking nut
