3 -33
PULL
PUSH
when pulling
lever ②
when pushing
lever ②

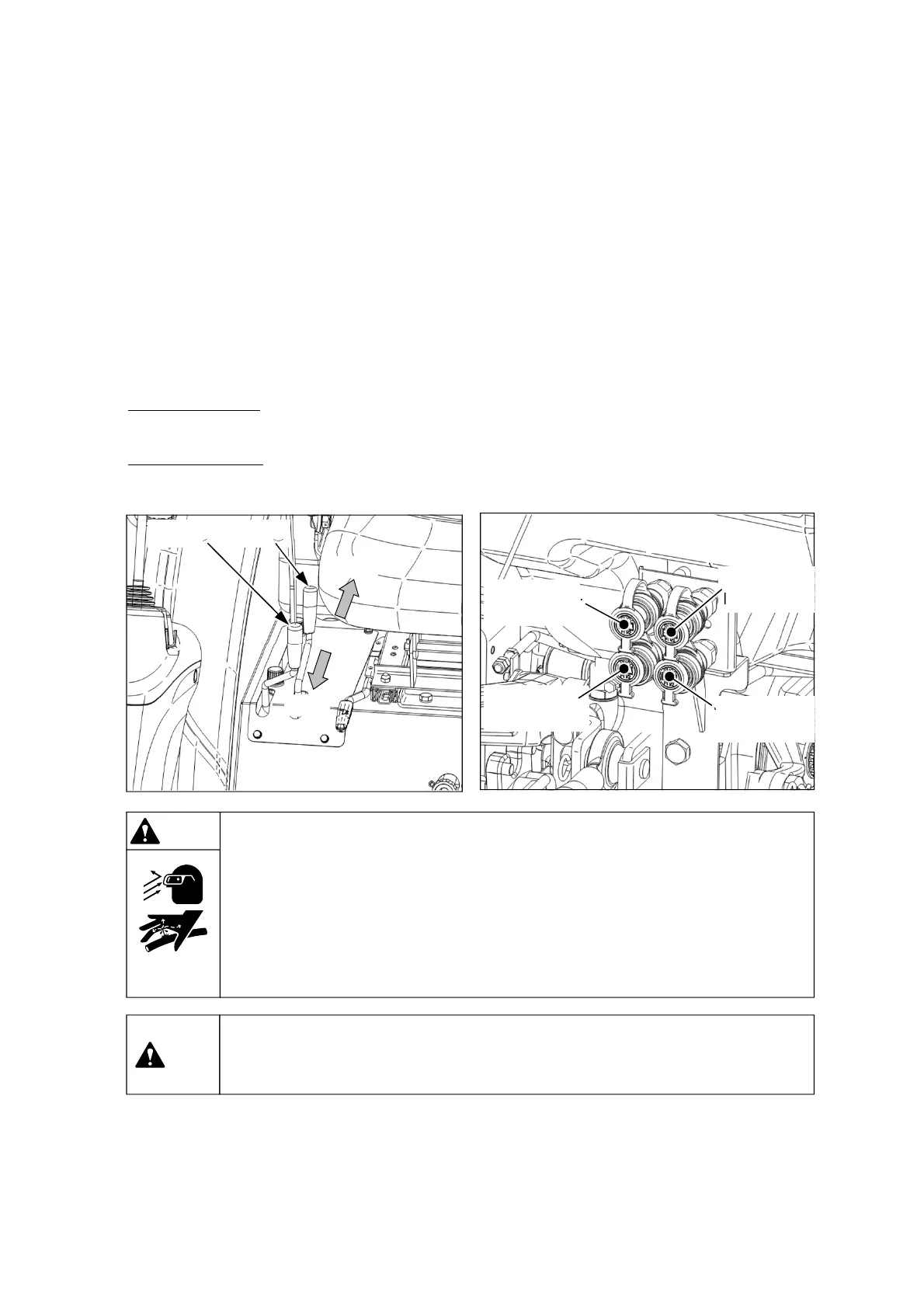

(4) Remote control levers and Quick couplers (optional)
These remote control levers, Lever ① and Lever ② (if fitted) in the below figure are used to
operate the hydraulic cylinder and/or motor of the implement attached to your tractor.
Depending on the optional specification, below figures can be little bit different from your vehicle.
Each lever of this parallel circuit remote control valve can be operated independently. But, when
operating these levers at the same time, a quick coupler under less pressure may begin to work first.
After connecting and preliminary operating the hydraulic equipment, check again the transmission oil
level of the tractor.
When pushing the remote control lever① forward, the hydraulic pressure can be delivered to
the lower coupler of the related lever, and the upper coupler will be connected to the drain line.
When pushing the remote control lever② forward, the hydraulic pressure can be delivered to
the upper coupler of the related lever, and the lower coupler will be connected to the drain line.
When releasing the remote control lever, it will be returned to neutral position by spring.
Lever ①
Lever ②
when pushing
lever ①
when pulling
lever ①
Warning
▶Before removing the hydraulic pipes, hoses or other parts, make sure to check that
the hydraulic pressure in the hydraulic lines is relieved completely. The leaks of
pressurized oil can cause a fatal physical injury.
▶Use proper personal protection equipment before servicing the hydraulic system.
▶Before connecting or disconnecting the hydraulic quick couplers, lower the
implements to the ground, and check if the hydraulic pressure is relieved
completely.
Caution
▶ When connecting a high volumetric capacity cylinder to the remote control system,
lower the implement to the ground, and check if the transmission oil level is marked
between “Min” and “Max” scale on the oil gauge. If necessary, add new oil.
