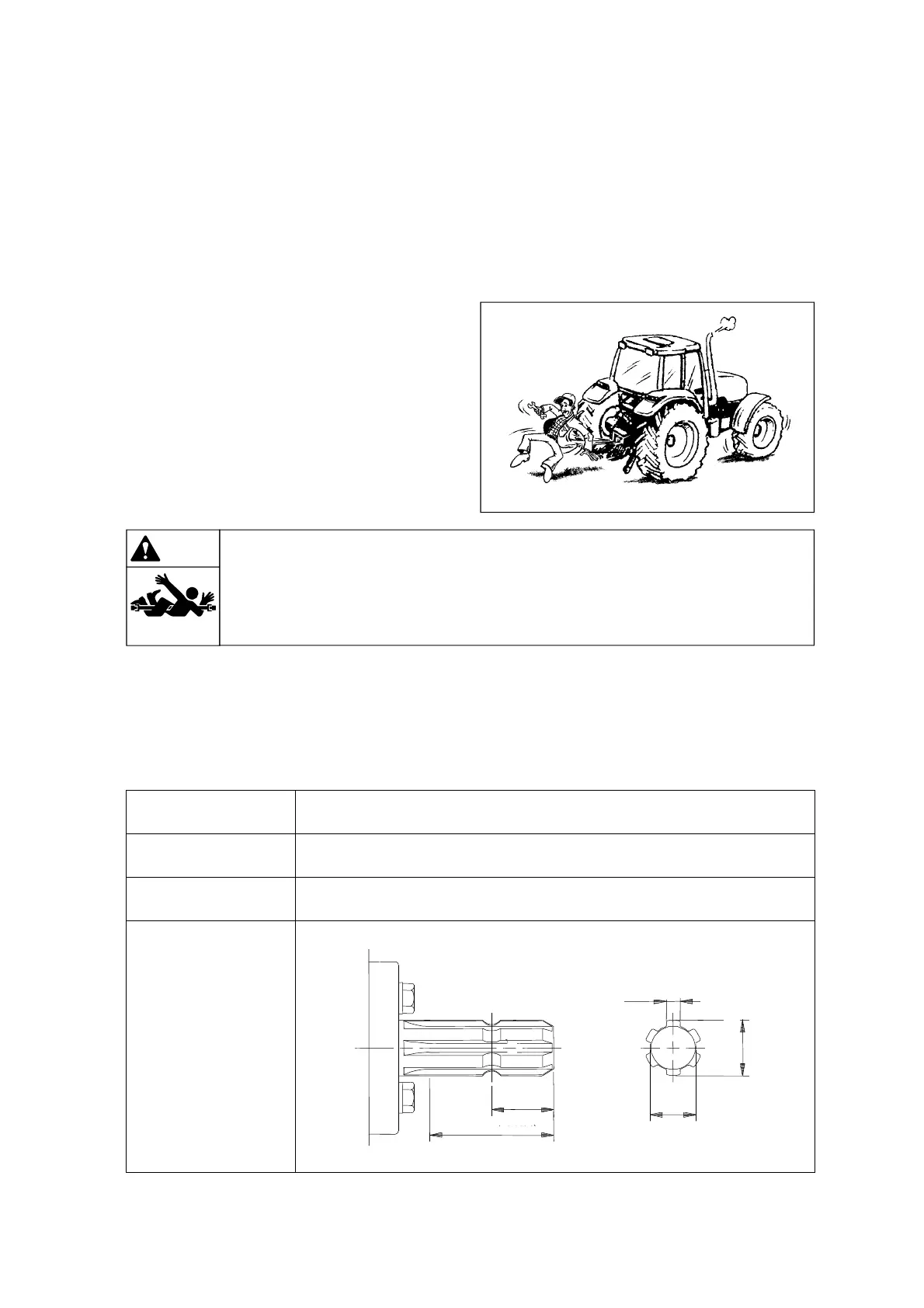

① Safety precautions
When PTO shaft is rotating, NEVER APPROACH the shaft.
Check if PTO shield is attached correctly. If the shield is removed or damaged, replace it with a new
one.
Suitable Clothes & Protect Entanglement :
When checking or attaching implement to the
PTO shaft, wear tight fitting clothes and safety
equipment instead of loose or long clothes. Also,
slippers, high heel shoes are not suitable. Wear
the suitable clothes.
PTO gear(s) 1
PTO / Engine speed 540 / 2409 rpm
Rotation direction Clockwise (When looking at PTO shaft end)
Shaft dimension
(Unit : inch)
(3.0 in)
(1.5 in)
(0.34 in)
(1.1 in)
(1 3/8 in)
(Teeth : 6T)
② Specification and dimension of rear PTO shaft
- Spline Teeth : 6T (Where fitted)
Warning
▶Do not approach the rotating shaft such as PTO shaft or cooling fan, especially,
with loose and long clothes. The entanglement in rotating shaft can cause serious
injury or death. Stop the engine and be sure to check that the PTO shaft has been
stopped completely before getting near it.
(2) Power take-off (PTO) operation
Check the specification of the rear PTO shaft before attaching an implement. The spline teeth may
be different depending on the market.
