Replacing cylinder liners
119
Removing cylinder liners
Note:
Observe oversizes for cylinder liner out-
side diameters and collar heights (see
”Service Data”).
D Remove cylinder head, see Page 85
D Remove piston, see Page 112

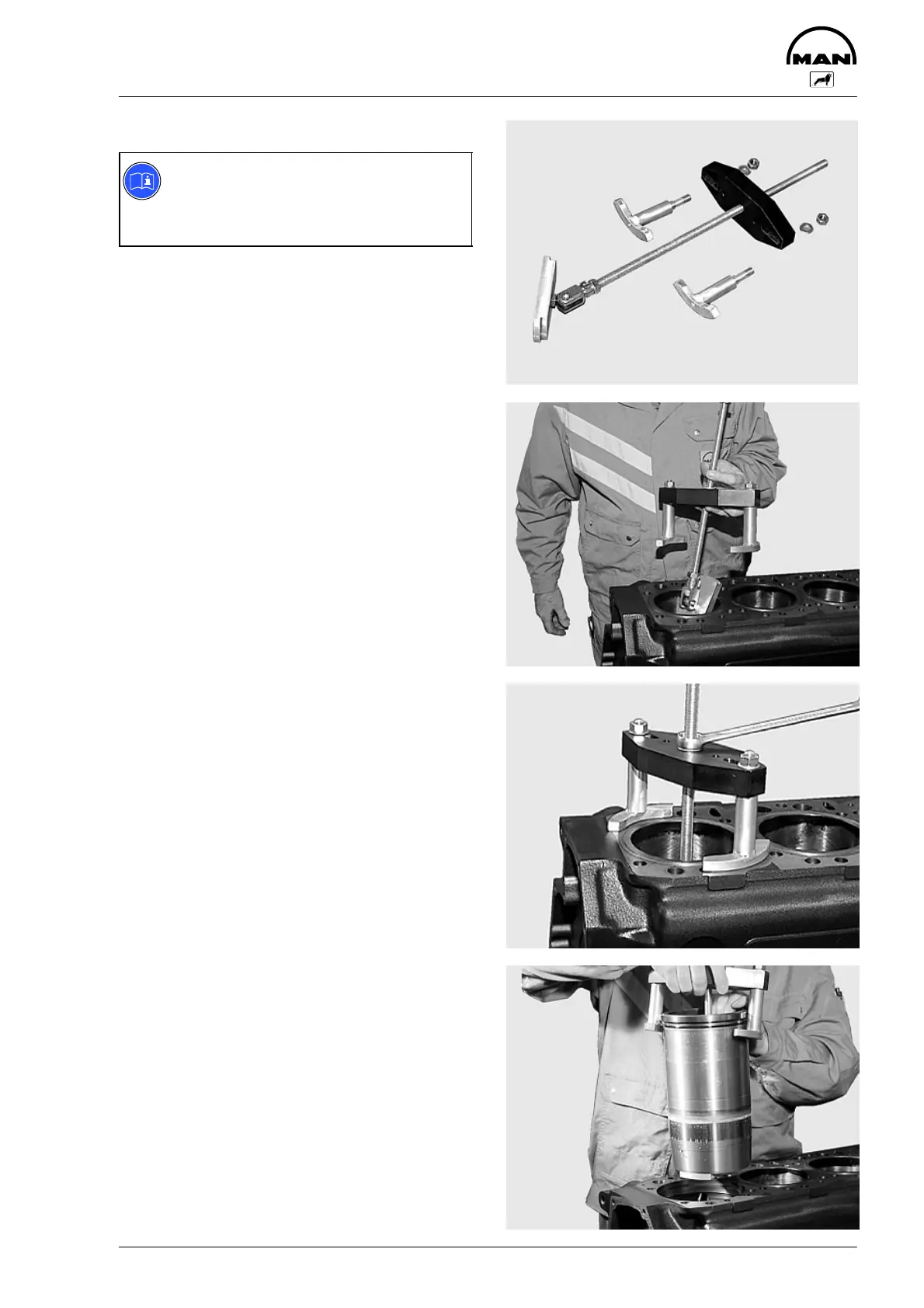

Fig. 1
Special tool for removing the cylinder liners
Fig. 2
Mark cylinder liner position relative to engine so
that it can be reinstalled in the same position if re-
used.
Insert cylinder liner extractor device into cylinder
liner, taking care not to damage the oil spray
nozzle
Fig. 3
Fit the support on the extractor spindle and screw
on the nut.
Hold extractor spindle in place and extract cylinder
liner by turning nut.
Fig. 4
Take off extractor device and take out cylinder li-
ner.
