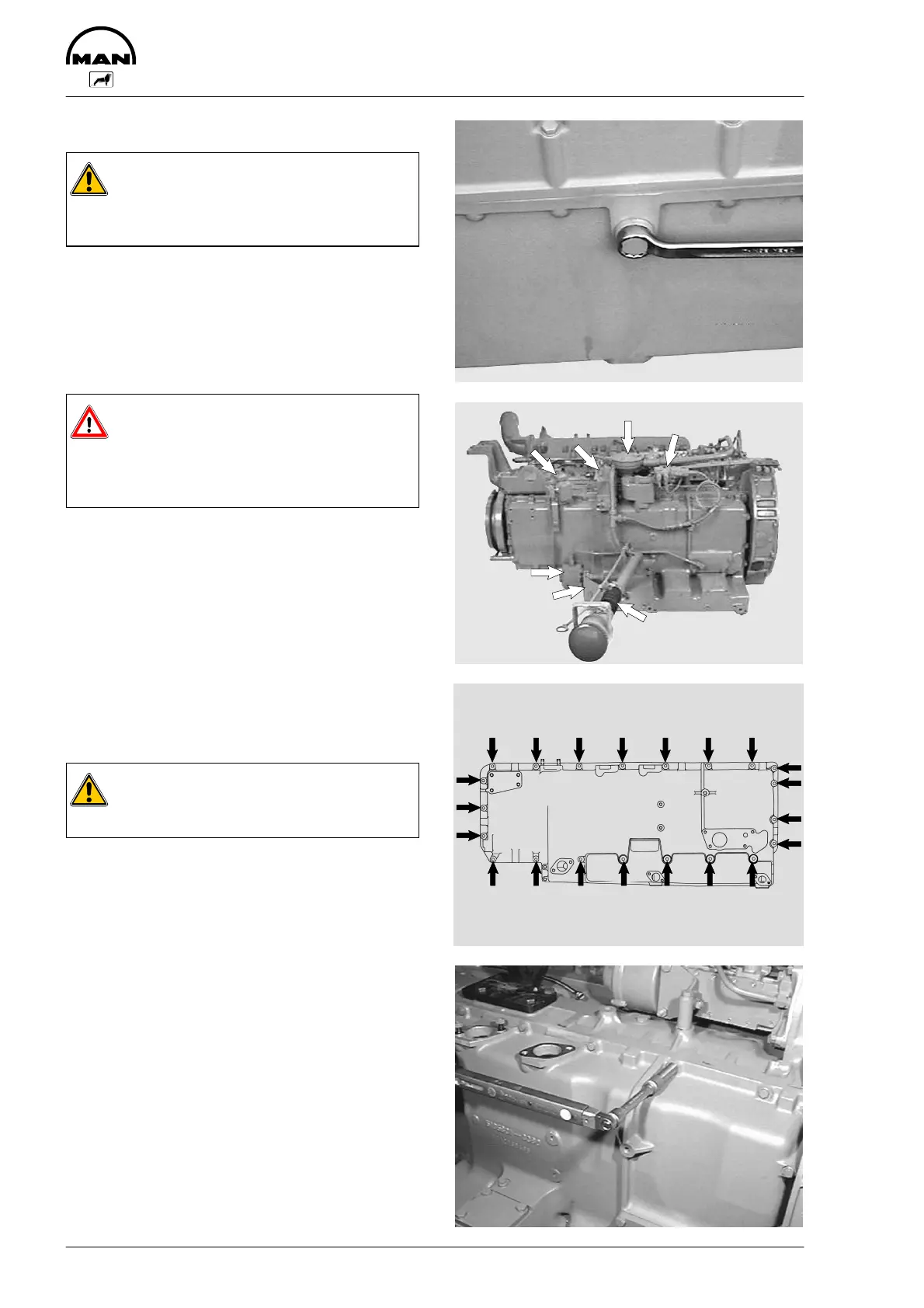

Removing and installing the oil pan
60
Remove oil pan
Caution:
Old oil is hazardous waste.
Observe safety instructions for the pre-
vention of environmental damage.
Fig. 1
Open oil filler neck.
Remove oil drai plugs and allow the oil to drain off
completely.
Use a vessel of sufficient size to ensure that the oil
does not overflow.
Danger:
The oil is hot- risk of scalding. Do not
touch the oil drain plug with bare fingers.
Oil is an environmental hazard. Handle it
with care!
Fig. 2
Remove EHAB, crankcase breather and oil filler
neck.
Remove engine loom.
Fig. 3
Tighten the securing bolts of the oil pan.
Take off oil pan.
Caution:
Oil pans are heavy.
It is now supported only by the lower oil.
Fitting the oil pan
Fig. 4
Replace the oil pan gasket.
Tighten the securing bolts with the prescribed tor-
que.
