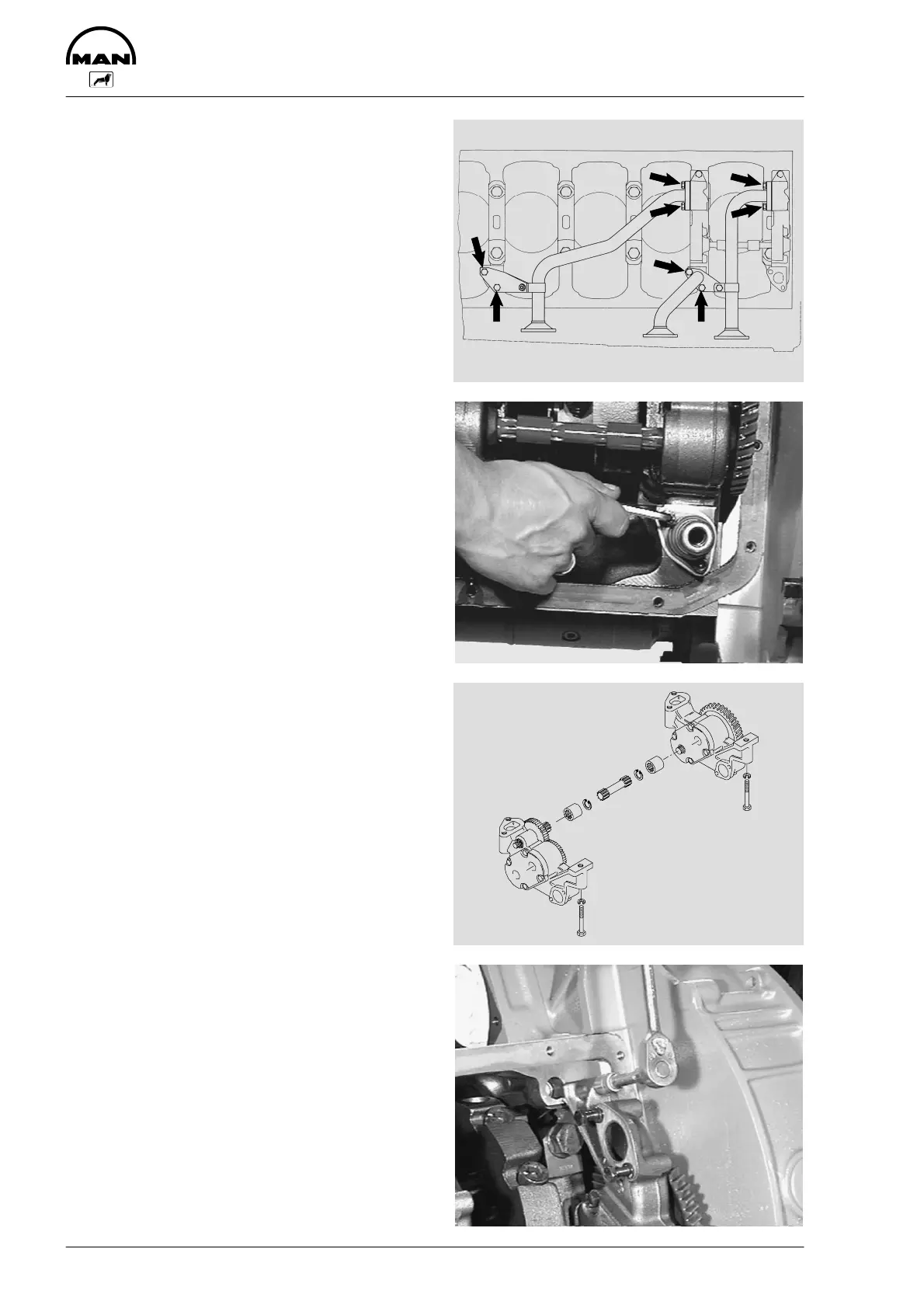

Removing and installing / Repairing Oil Pump
62
Removing oil pump
Fig. 1
Remove the oil pan, see Page 60
Take off oil suction pipes.
Measure backlash between oil pump drive gear
and crankshaft gear and compare value with the
nominal value.
Replace worn gears.
Fig. 2
Remove pressuer relief valve.
Opening pressure, see “Service Data”.
Fig. 3
first remove the 2nd pump À with intermediate
shaft Á, connection sleeves  and circlips Ã.
Fig. 4
Remove 1st oil pump.
