Removing and installing intake manifold
77
Note:
When working on the air intake system,
ensure meticulous cleanliness to prevent
penetration of dirt and foreign bodies.

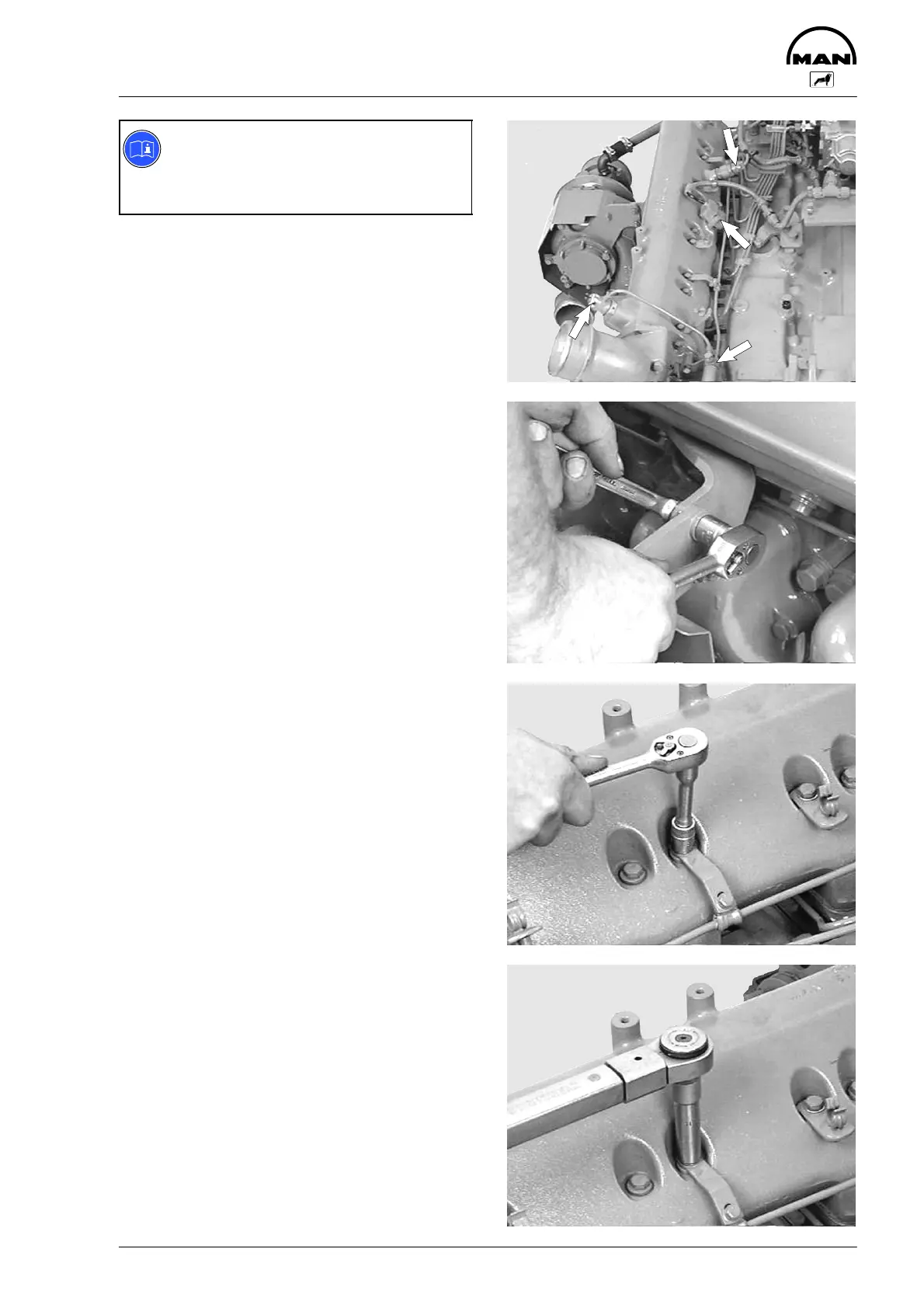

Removing intake manifold
Fig. 1
Disconnect electric cables to boost pressure sen-
sor, to sheathed-element flame glow plug, to sole-
noid valve and to temperature sensor.
Unscrew and remove fuel pipes to solenoid valve
and sheathed-element flame glow plug.
Fig. 2
Remove connection to turbocharger.
Fig. 3
Remove the mounting bolts on the intake manifold.
Remove the intake manifold.
Installing intake manifold
Fig. 4
Place the intake manifold in position with new gas-
kets.
Fit the mounting bolts.
Make sure the gaskets are correctly seated.
Tighten the securing bolts with the prescribed tor-
que.
Connecting all pipes.
