Repairing coolant pump with high-temperature and
low-temperature parts D 2866 LUE 605
48

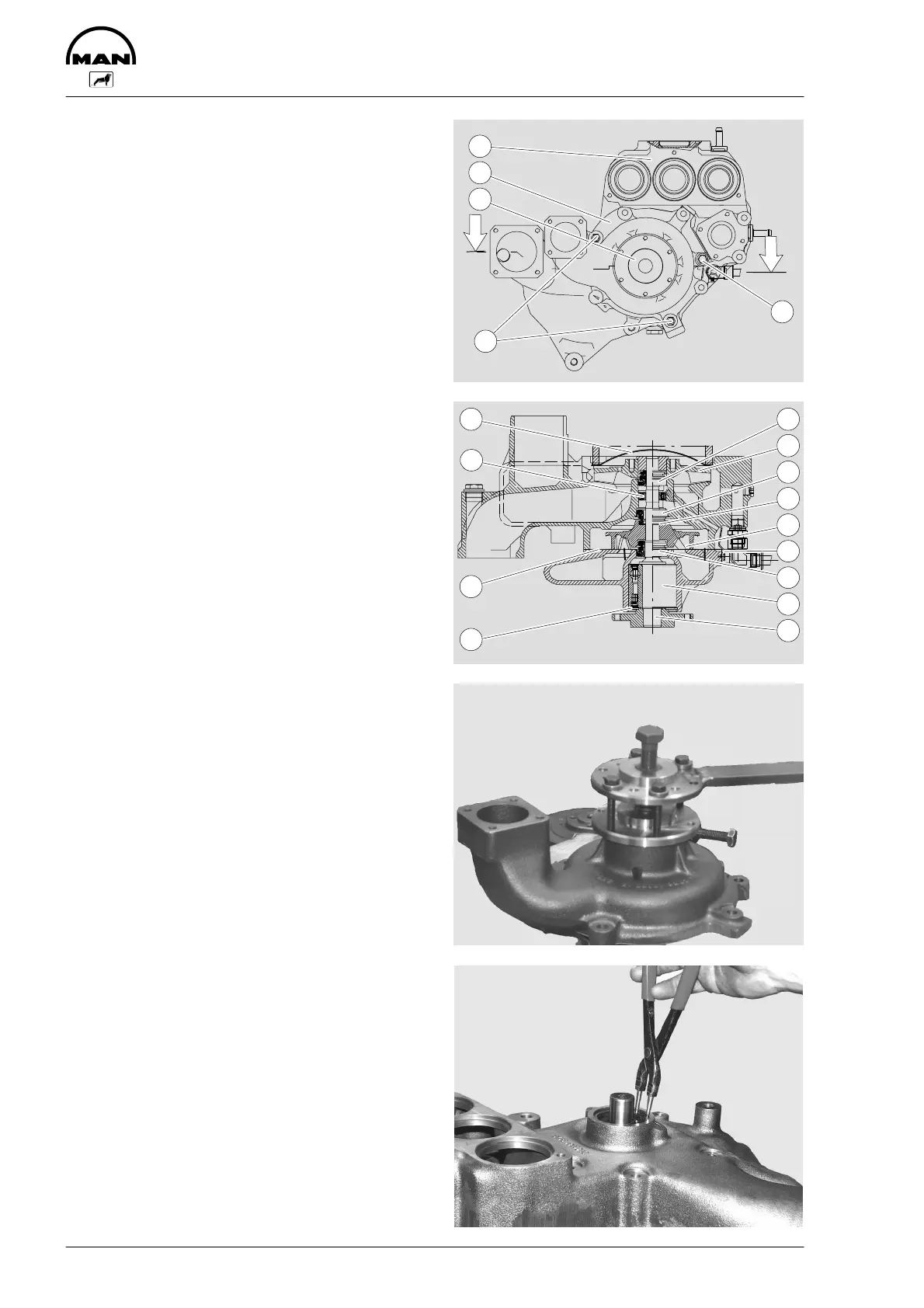

Coolant pump for three thermostats
Fig. 1 and 2
1 Pump housing HT (high-temperature part)
2 Pump housing LT (low-temperature suction
part)
3 Hub
4 Bolt DIN 931-M8x155,
hex nut DIN 934-M8
5 Bolt DIN 933-M8x35-8.8
6 Mechanical seal 51.06520-0085
7 Impeller for coolant pump, HT circuit
8 Mechanical seal 51.06520-0099
9 Counterring complete 51.06520-0100
10 Impeller for coolant pump, LT circuit
11 Splash shield
12 Mechanical seal 51.06520-0096
13 Water pump bearing
14 Drive shaft for coolant pump
15 Circlip
16 Water pump seal
17 Grooved ball bearing 6003
18 Cap
Disassembling water pump
Fig. 3
Removing the water pump, see page 41.
Clamp water pump in a vice, use protective jaws.
Pull off boss with three-arm puller.
Fig. 4
Unclip the circlip from the coolant pump housing.
3
1
2
5
4
18
17
15
16
6
7
8
9
10
11
12
13
14
