Removing and installing flywheel, replacing starter gear ring
72

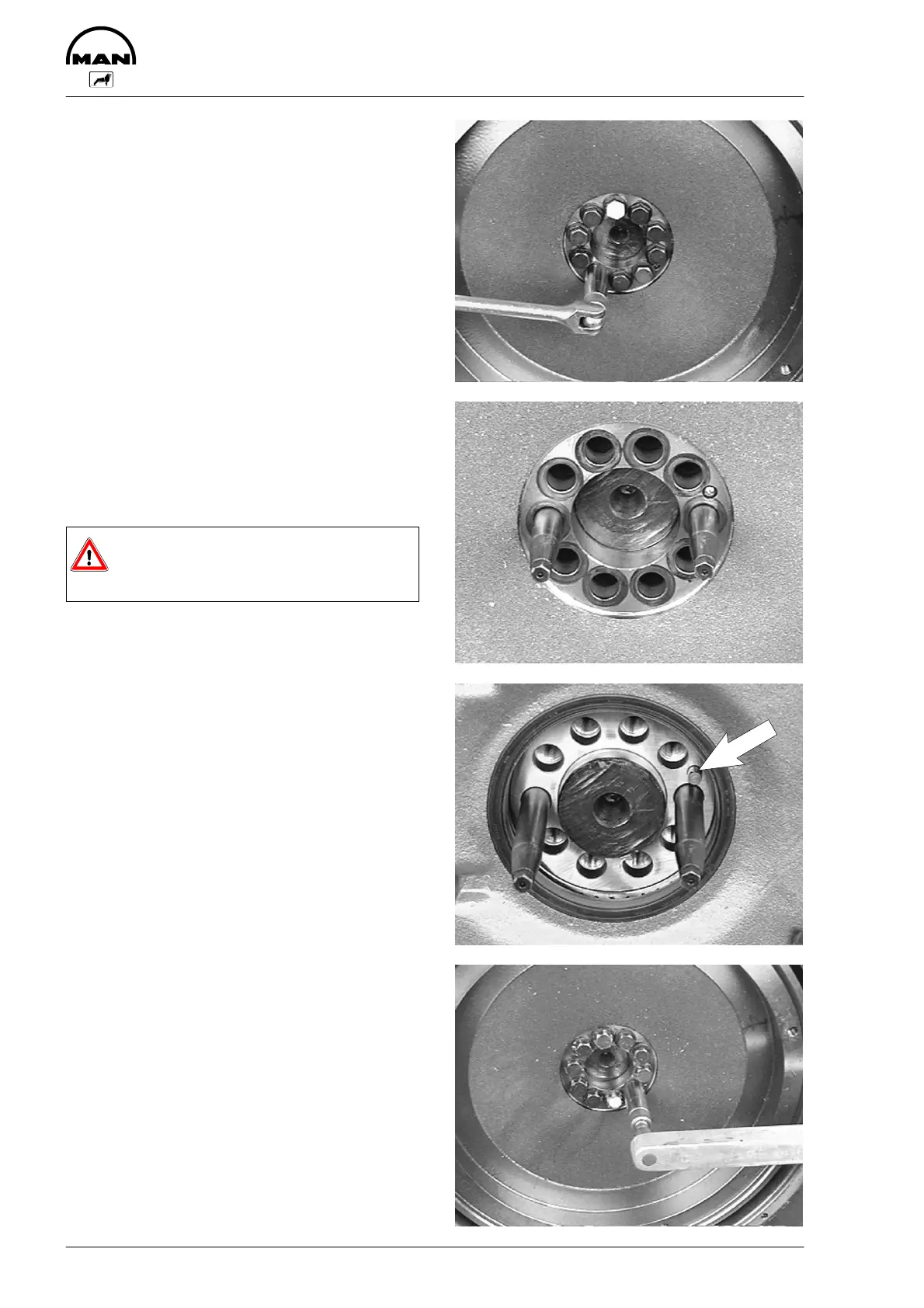

Removing flywheel
Fig. 1
Release the mounting bolts, securing the engine
against rotating if necessary.
Fig. 2
Unscrew two bolts opposite one another and re-
place with two guide mandrels (special tool).
Remove all the bolts.
Pull off the flywheel with suitable lifting gear.
Danger:
The flywheel is heavy!
Use lifting gear.
Fitting flywheel
Fig. 3
Insert the guide pins.
Coat the sealing face on the inside of the flywheel
with “Antipor 46” sealing compound.
Place the flywheel on the two guide mandrels; in
doing so, observe the allocation of the centring pin
(arrow) to the bore hole in the flywheel.
Push the flywheel on as far as it will go.
Fig. 4
Lightly oil the new mounting bolts (stress bolts),
screw them in and tighten in diagonal sequence to
specified torque.
