Removing and installing exhaust manifold
78
D Removing turbocharger, see page 77
Removing exhaust manifold

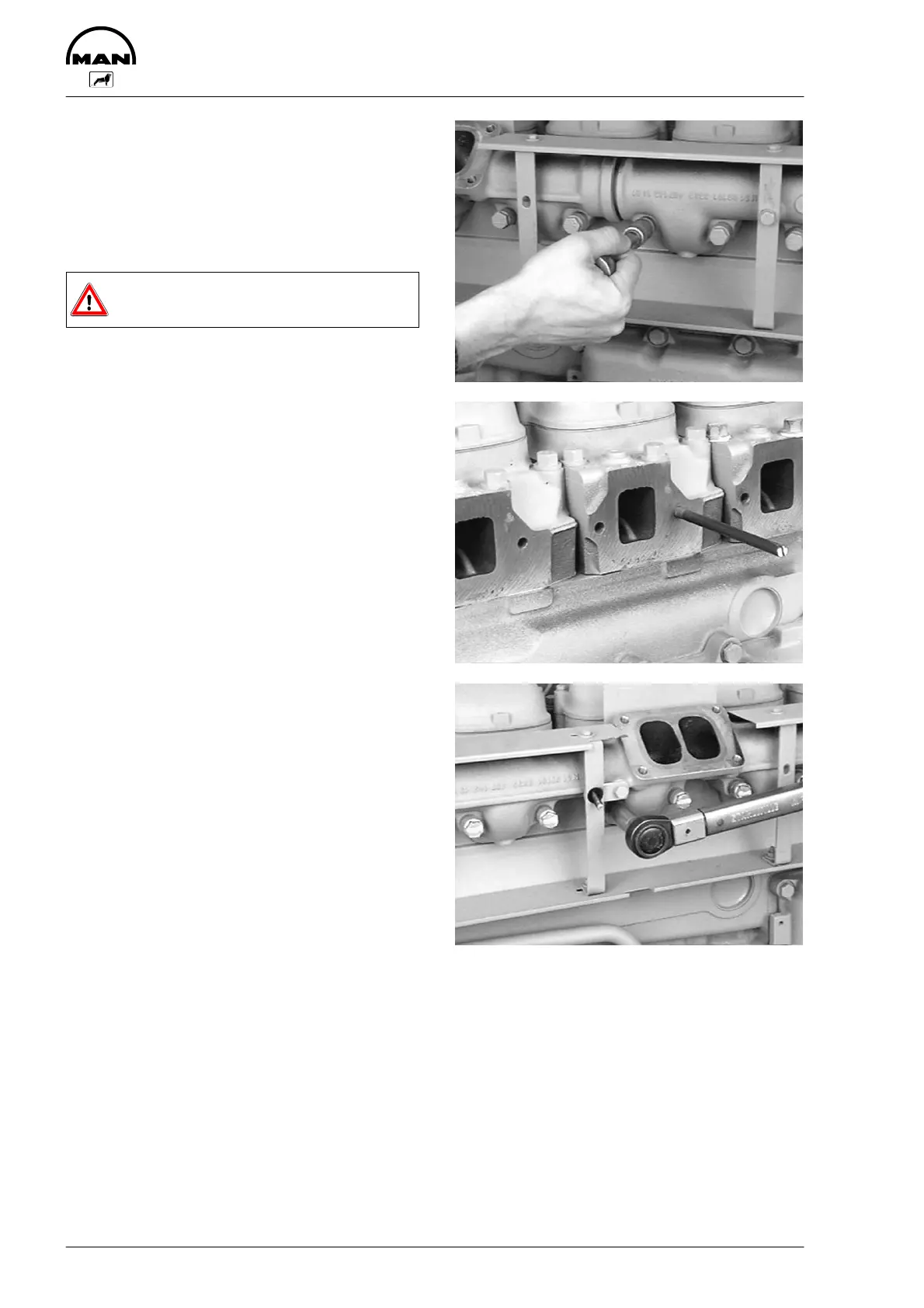

Fig. 1
Loosen the securing bolts of the exhaust manifold.
Danger:
The exhaust manifold is heavy!
Before unscrewing all securing bolts, if appropriate
replace 2 bolts by stud bolts as guides.
The stud bolts with thread M10 have been produ-
ced by MAN.
The exhaust-gas pipe can be removed with the
exhaust manifold attached.
Remove the heat shields.
Installing exhaust manifold
Fig. 2
Before fitting the exhaust manifold, screw in 2 stud
bolts as a guide.
Bolt guard plate and exhaust manifold together,
inserting new gaskets between guard plate and
exhaust manifold (bead must face guard plate).
Fig. 3
Position the exhaust manifold with new gaskets.
Ensure that the gaskets are correctly seated.
Tighten the mounting bolts to specified torque (see
Service Data”).
D Install the turbocharger.
