Removing and installing the turbocharger
82
Removeing turbocharger

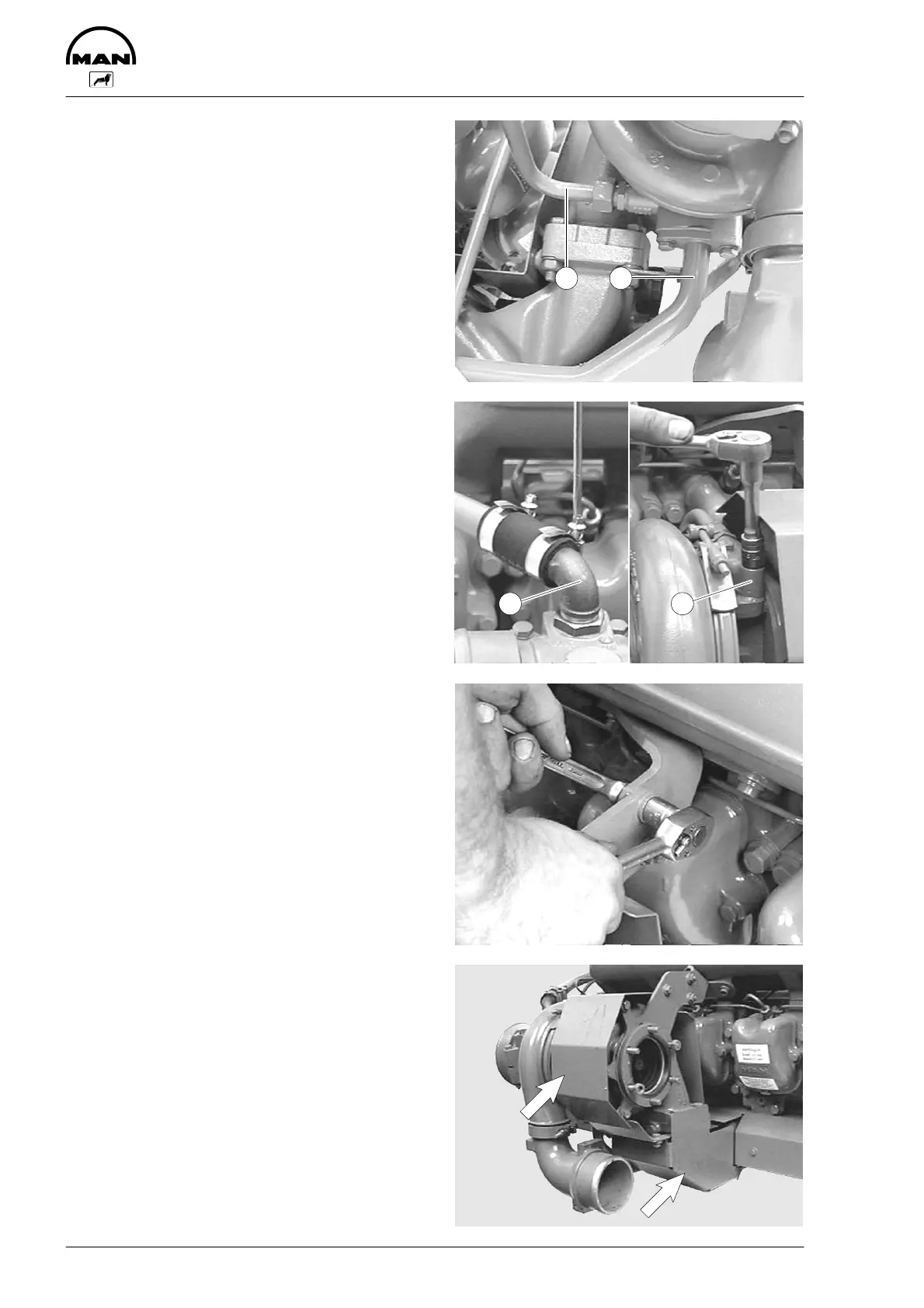

Fig. 1
Detach bleed pipe leading to cylinder head cover
of cylinder 6 À and oil return pipe Á from turbo-
charger.
Fig. 2
Then detach the pipe to the crankcase breather Â
and the oil pressure pipe Ã.
Fig. 3
Remove bra#ket for intake pipe.
Fig. 4
Remove guard plates (arrows).
1 2
3 4
