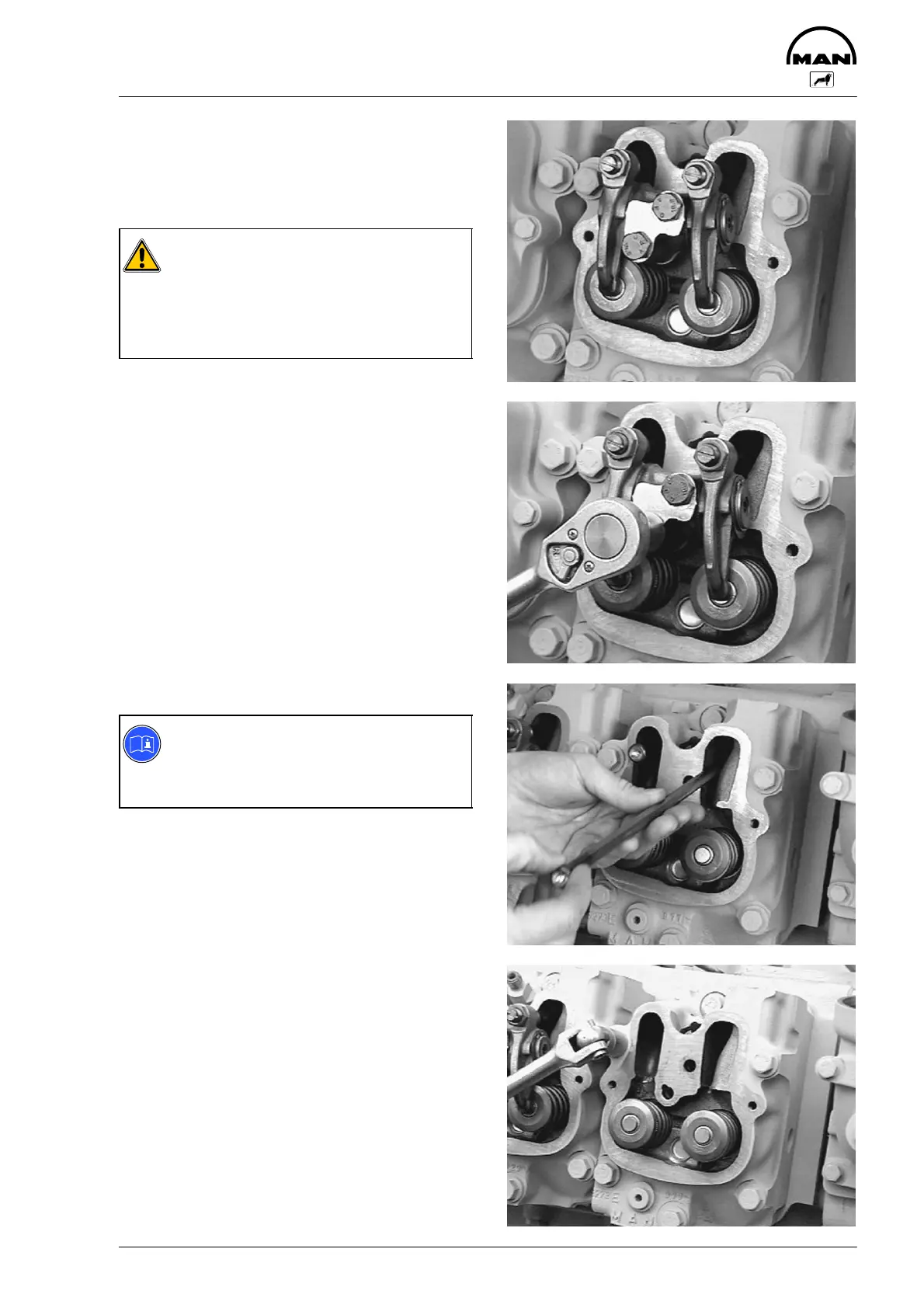

Removing and installing cylinder head
85
Removing the rocker arms and push
rods
Fig. 1
Take off the cylinder head covers.
Caution:
Residual amounts of oil may emerge du-
ring this operation.
Used oil is dangerous waste.
Observe safety regulations to prevent da-
mage to the environment.
Fig. 2
Back off valve adjusting screws.
Loosen mounting bolts of rocker arm bracket.
Remove rocker arm bracket.
Disassembling and assembling rocker arms,
see page 90.
Removing cylinder head
D Drain coolant, see page 39
D Remove injectors, see page 31
D Removing intake manifold, see page 77
D Removing exhaust manifold, see page 78
Note:
To remove a cylinder head, it is not ne-
cessary to detach the intake and exhaust
pipes.
Fig. 3
Take out push rods.
Fig. 4
Remove cylinder head bolts in reverse order of
tightening (For torque tightening diagram see “Ser-
vice Data”).
