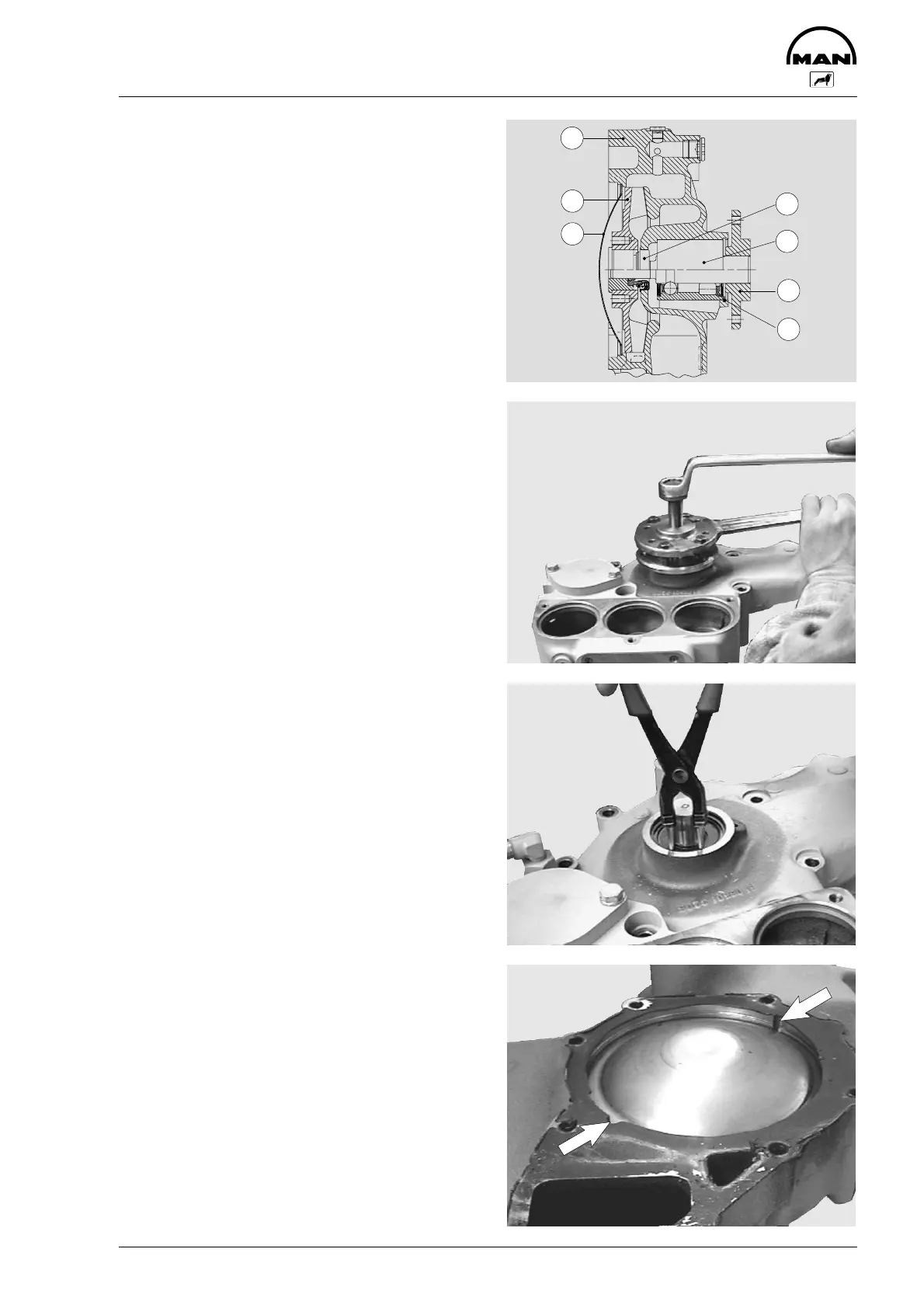

Repairing engine water pump
D 2866 LUE 602
43
Fig. 1
1 Pump housing
2 Impeller
3 Cap
4 Mechanical seal
5 Water pump bearing
6 Hub
7 Circlip
Remove water pump, see page 41
Disassembling water pump
Fig. 2
Clamp the water pump in a vice (use protective
jaws).
Pull off V-belt pulley with three-arm puller.
Fig. 3
Unclip the circlip from the coolant pump housing.
Fig. 4
Knock out cover by driving a suitable mandrel un-
der it (Fig. 1, item 3) at notch (arrow).
1
2
3
4
5
6
7
