Disassembling and Assembling Rocker Arm Mechanism
90

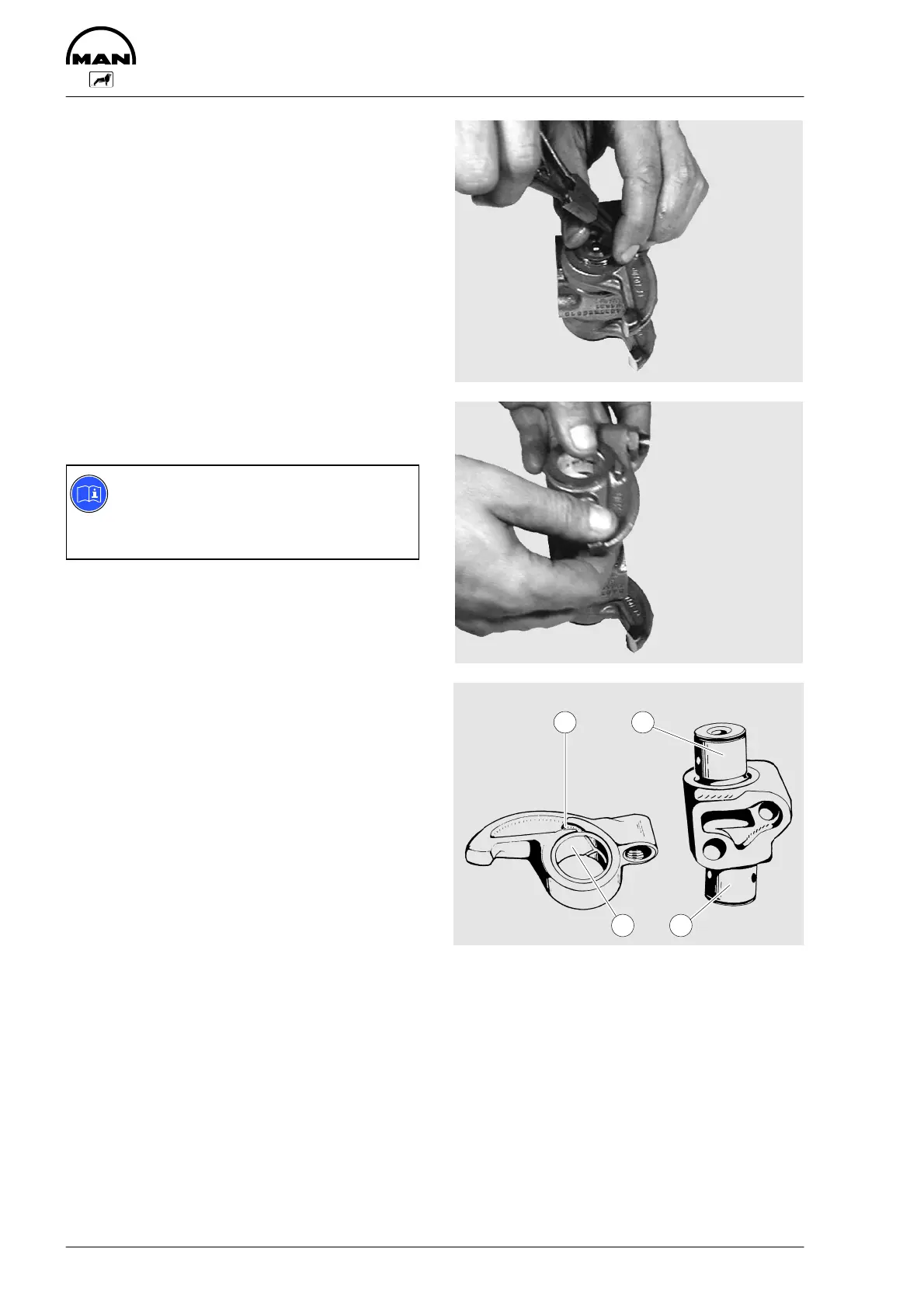

Fig. 1
Removing the rocker arm mechanism,
see page 85
Disengage securing ring.
Fig. 2
Remove rocker arm from rocker shaft.
Note:
If the rocker arm bearing bushes need to
be replaced, new or exchange rocker
arms ready for fitting are to be used.
Fig. 3
On fitting the rocker arms À on the rocker shafts
or pedestals, the sliding surfaces Á and  are to
be coated with Optimoly paste White T.
This applies to new parts and parts that have al-
ready run.
