SET-UP AND INSTALLATION 18000 OPERATOR MANUAL
4-24
Published 12-05-17, Control # 032-23
Install Cab Left Platform (Current
Production)
See Figure 4-16 for the following procedure.
NOTE Fork pockets are included in the platform floor for
handling by a fork truck.
1. Remove two quick release pins (4, Views E and F) to
rotate cab front handrail assembly (11 and 12) about
pins (6).
2. Raise front handrail assembly (11 and 12) into working
position (View A) and secure by inserting quick release
pins (4, two places, Views B and G) into working position
holes in platform weldment (5).
3. Remove two quick release pins (9, Views G and H) from
weldments to allow movement of front handrail wing
(12).
4. Rotate handrail wing (12, Views G and H) about its
“hinge” 270° into working position and secure by
inserting quick release pins (9) into working position
holes in weldments (5).
5. Remove quick release pin (4, two places, Views C and
E) from left handrail (10) to allow movement of handrail
about pins (6).
6. Rotate left handrail (10, View H) into lifting position and
secure by inserting quick release pins (4) into lifting
position holes in weldment (5).
7. Lift cab left platform (1, Views A and C) using chain
slings from assist crane connected to four lifting holes.
8. Move cab left platform (1) into position so holes in cab
assembly (View C) align with slotted holes in platform
assembly (1). Secure with washers (3) and hex head
capscrews (2) (four places).
9. Remove chain slings.
View E
View F
View G
View H
9
9
9
9
Lifting Position
15°
Lifting Position
44
4
4
4
6
6
4
6
Shipping Position
Working
Position
Hole
Lifting
Position
Hole

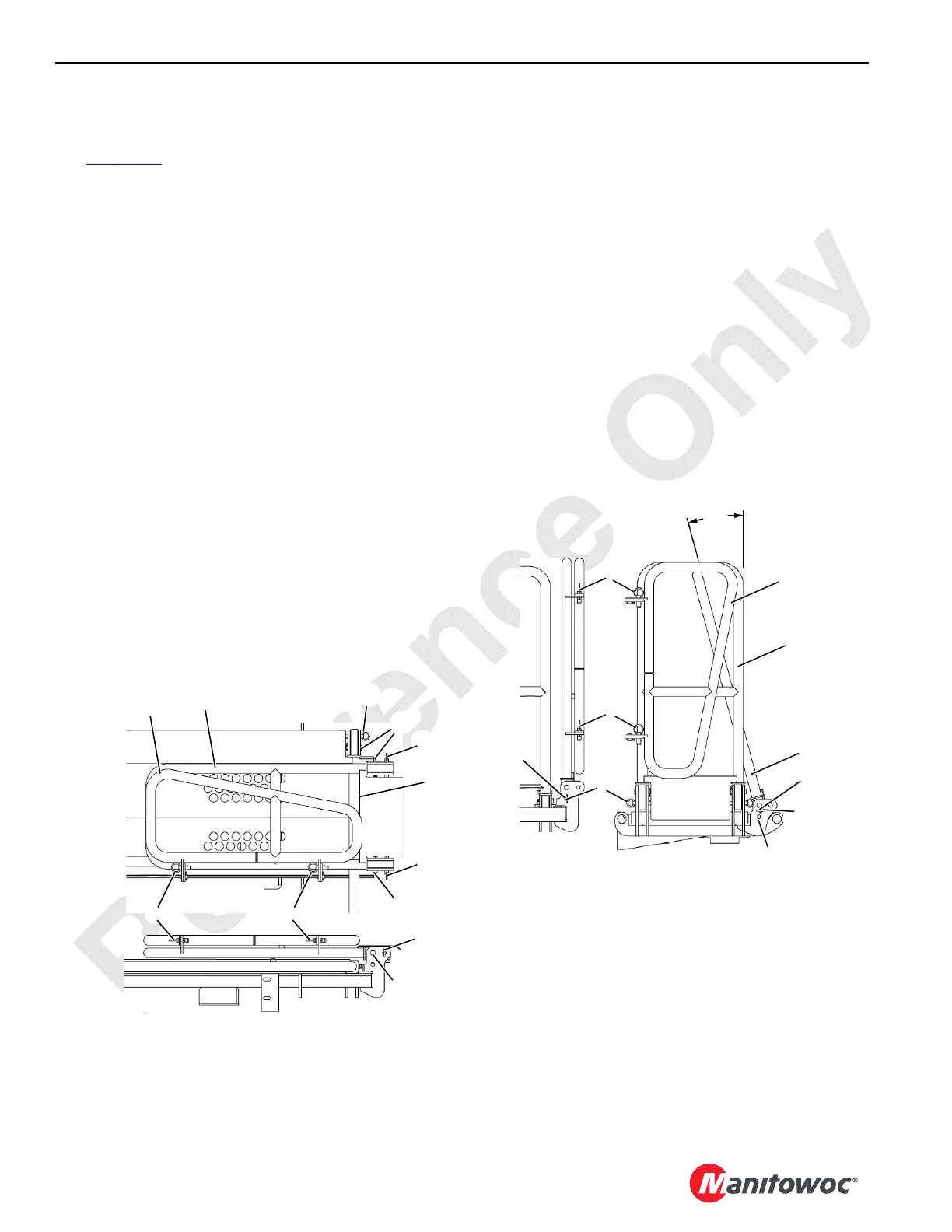

FIGURE 4-16 continued
12
11
10
4
12
11
10
Working
Position
Hole
