SET-UP AND INSTALLATION 18000 OPERATOR MANUAL
4-68
Published 12-05-17, Control # 032-23
View F
(4 places each crawler)
P1932
View A
P1941a
View E
Tip of Hook Must Pass Through
Holes in Pad as Shown
P1966

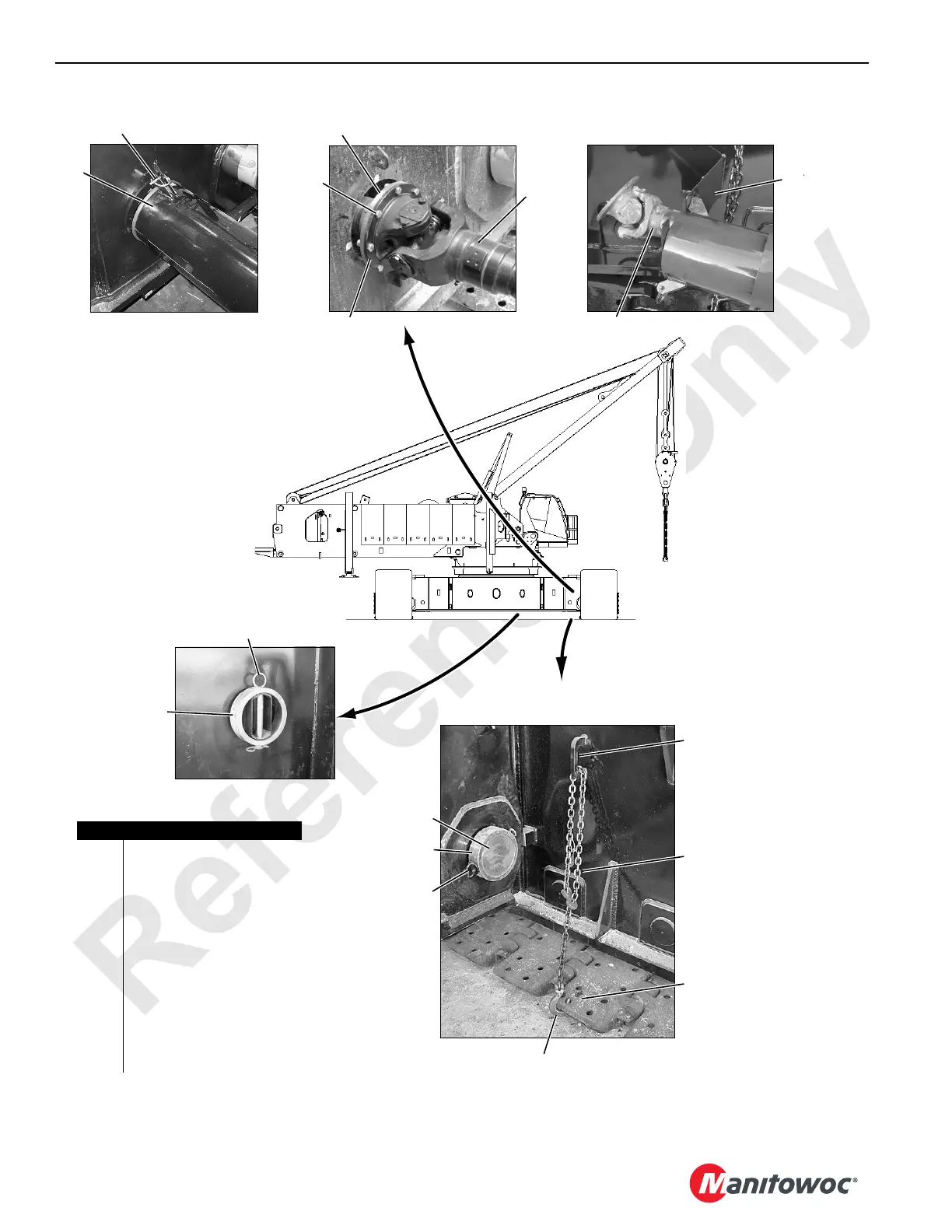

FIGURE 4-36
View B
P1941d
View C
P1932a
1
2
6
3
5
7
4
(stored)
10
8
9
View D
11
12
13
12
11
Item Description
1Guard
2 Snap Pin
3 Bolt with Locknut (8 each)
4 Drive Shaft
5 Drive Shaft Flange
6 Carbody Flange
7 Support
8Chain
9Crawler Pad
10 Lug
11 Retaining Pin
12 Collar
13 Crawler Connecting Pin
