TRANSMISSION AND TORQUE CONVERTER CD3340B/YB4411
7-4
Published 04/07/2015 Control # 569-00
A0799

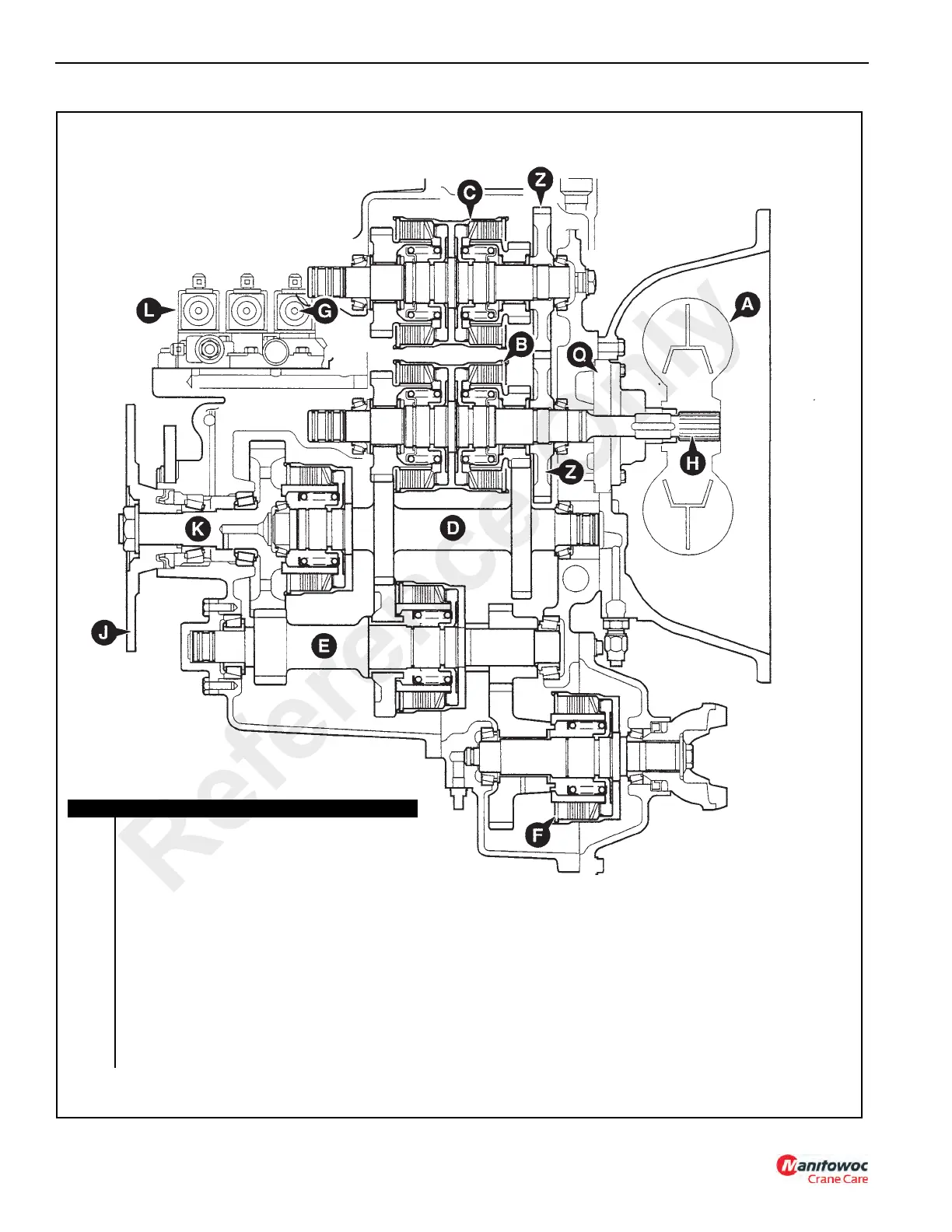

FIGURE 7-2
Item Description
A Torque Converter
B Input Clutch Assembly
C Forward Clutch Assembly
D Main Shaft Assembly
E Layshaft Assembly
F 4 WD Clutch Assembly (Not used)
G 3-Position Solenoid Valve (Reverse Travel)
H Input Shaft
J Parking Brake Disc
K Spined Output Shaft
L 3-Position Solenoid Valve (Forward Travel)
M 3- Position Solenoid Valve (Mainshaft/ Layshaft
Q Pump
Z Spur Gears
Reference Only
