GROVE 7-53
CD3340B/YB4411 TRANSMISSION AND TORQUE CONVERTER
7
Published 04/07/2015 Control # 569-00
Mainshaft Clutch Repair

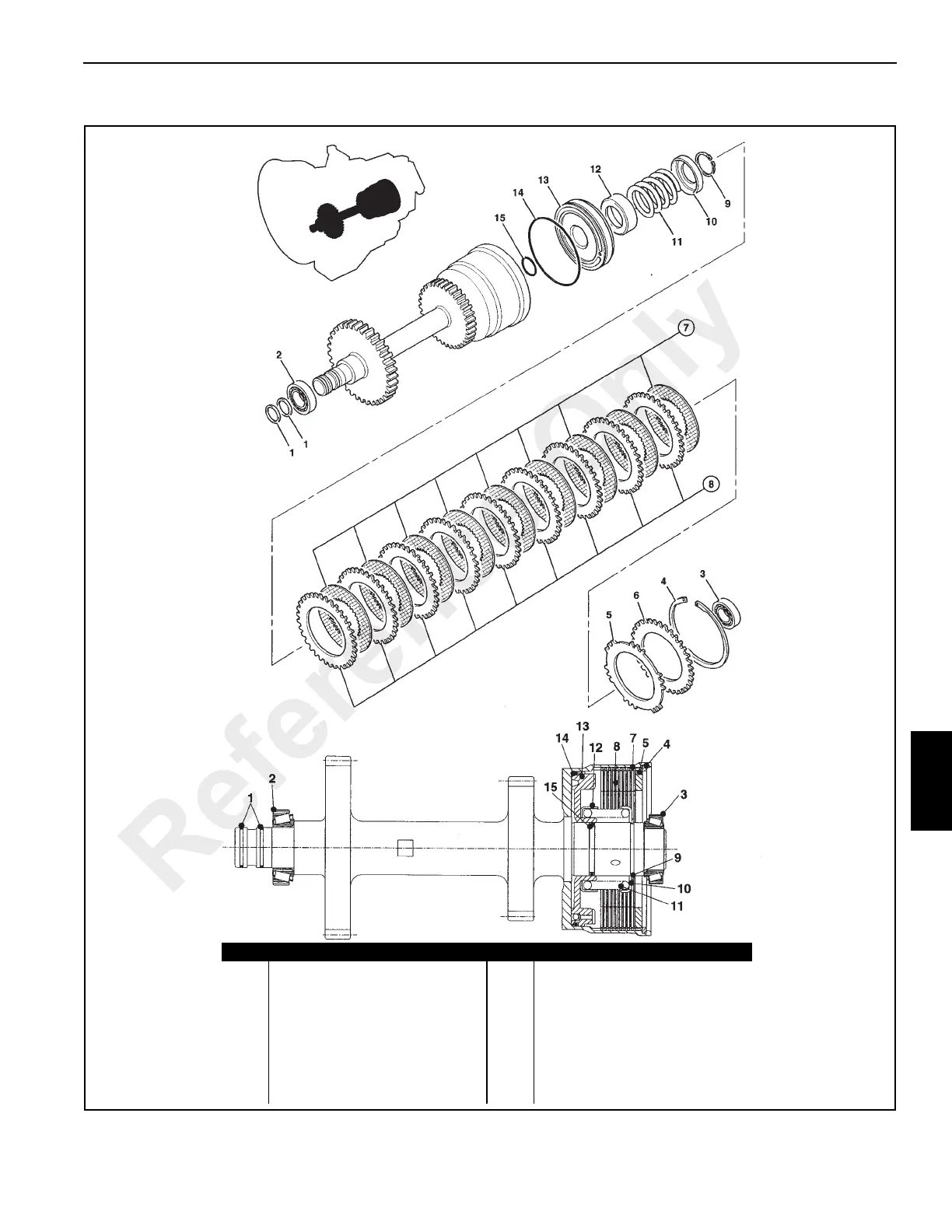

FIGURE 7-74
a0838
Item Description Description Description
1 Piston ring seal (2) 9 Retaining rings
2 Taper roller bearing 10 Spring retaining plate
3 Bearing 11 Spring
4 Retaining ring 12 Oil baffle
5 End plate 13 Piston
6Shim 14O-ring
7 Friction Plates (9) 15 O-ring
8 Counter plates (9)
Reference Only
