Grove Published 3-25-2020, Control # 595-10 3-37
GRT8100 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
Accessing Limitation Screens
Each of the limitations for the WRL has a screen on the
display for the enabling and definition of the limitation. To
access these screens, the Menu function is used with the
display. Once the main menu screen is shown, the WRL
limitations are shown as a group, and one of the limitations
can then be selected to work with that limitation screen. This
WRL sub-menu is highlighted in Figure 3-22 with an ellipse
outline.

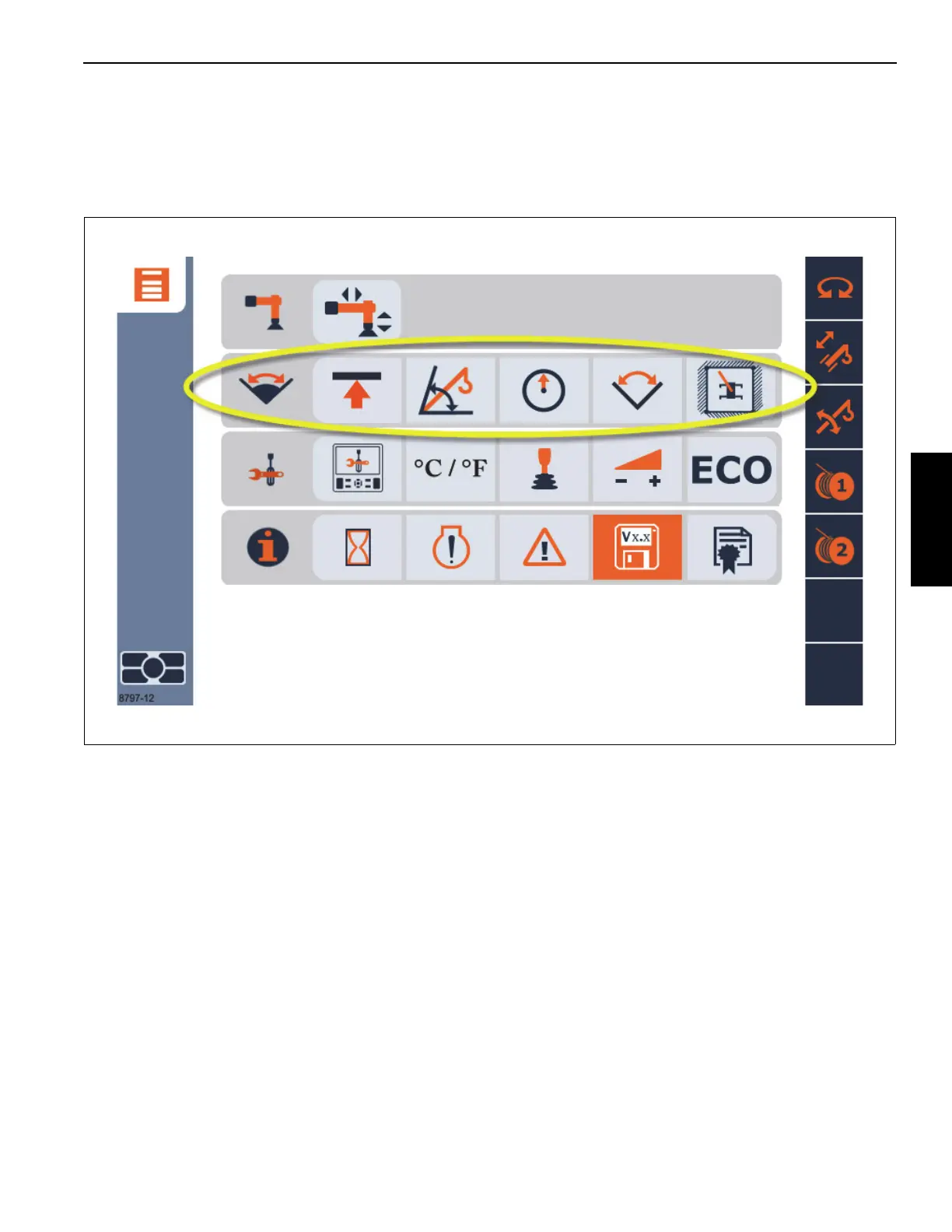

FIGURE 3-22
8797-12
Operating Display menu with WRL sub-menu highlighted
