Manitowoc Grove GRT8100 User Manual

Grove Published 3-25-2020, Control # 595-10 3-19
GRT8100 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3

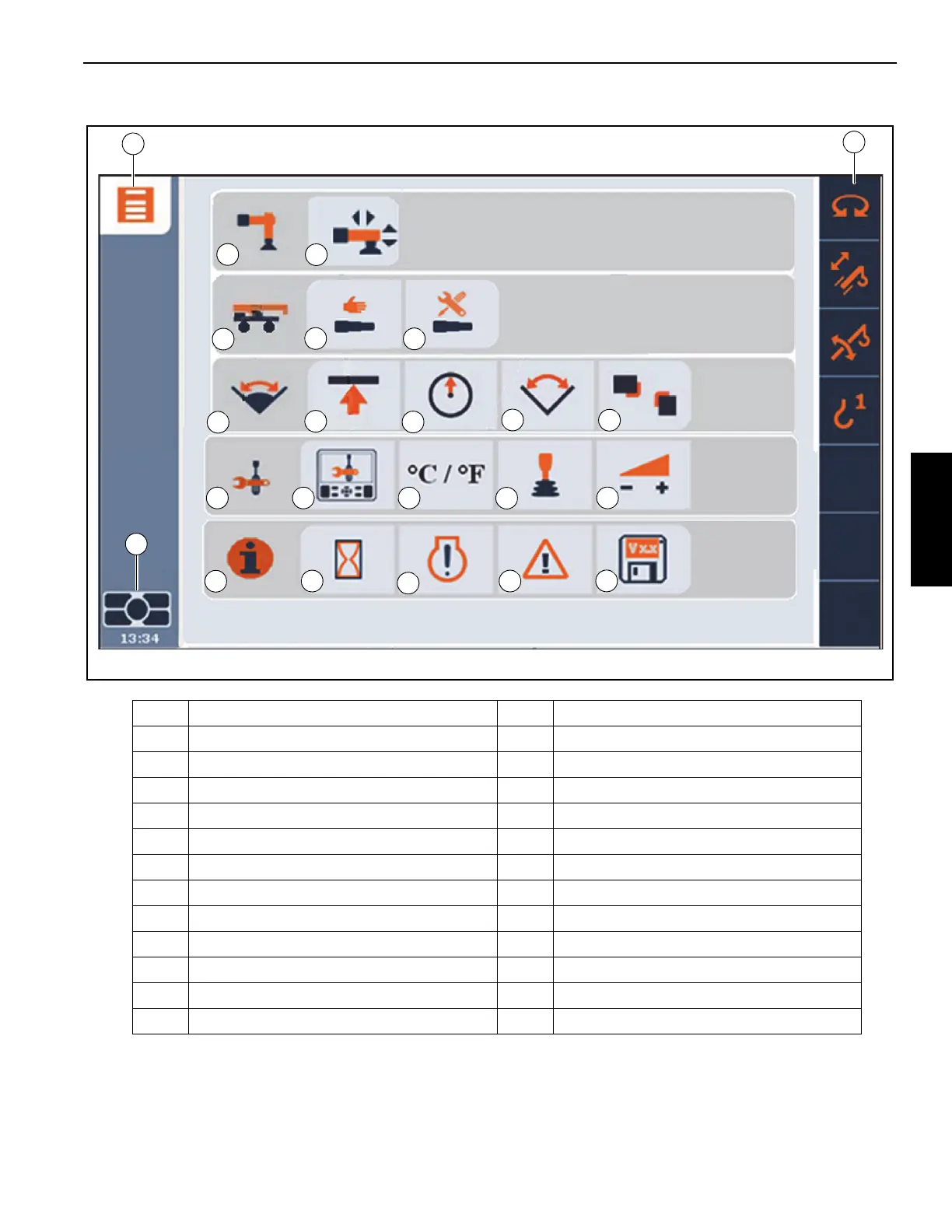

CCS Menu Screen
1
2
FIGURE 3-15
3
4
5
6
16
1 1
87
9
1 0
1 2
13
14 15
17
18
19
20
21
22 23
8662
Item Description Item Description
1 Menu Screen Indicator 13 WRL Virtual Wall Limit
2 Status Indicator Bar 14 Tools Group
3 Active Screen Indicator 15 Display Brightness Settings
4 Outrigger Group 16 Imperial/Metric Measurement Selection
5 Outrigger Button 17 Control Lever Settings
6 Telescoping Menu 18 Function Speed Setting
7 Manual Telescope 19 Information Group
8 Telescoping Configuration 20 Operating Hours
9 WRL Limit Group 21 Engine System Faults
10 WRL Height Limit 22 Crane Faults
11 WRL Radius Limit 23 Software Revision
12 WRL Swing Angle Limit
