Grove Published 3-25-2020, Control # 595-10 3-3
GRT8100 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
CONTROLS AND INDICATORS
The engine is electronically controlled by the Electronic
Control Module (ECM); it is the control center of the entire
engine system. The ECM processes all inputs and sends
commands to the fuel systems, vehicle, and engine control
devices. This Operator Manual does not include engine ECM
information. ECM information is in a separate manual by the
engine manufacturer shipped with the crane from the factory.

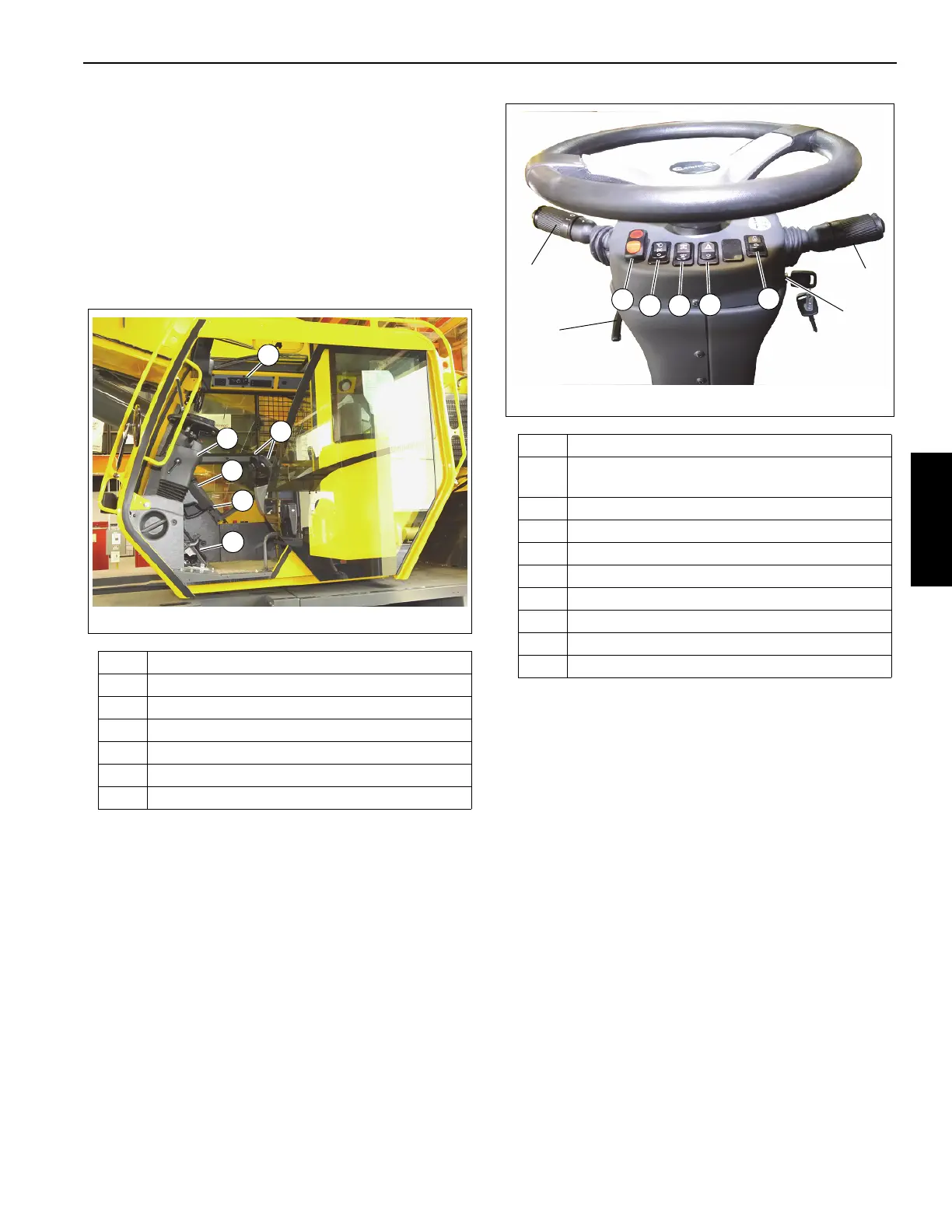

All controls and indicators to operate and monitor crane
functions are found inside the crane cab (Figure 3-1).
Steering column
The steering column assembly (5) (Figure 3-1) is a pedestal
style tilt and telescoping steering column. It can tilt rearward
30° or raise vertically 60 mm (2.3 in). It includes the ignition
switch and other control switches (Figure 3-2).
Turn Signal Lever and Windshield
Wiper/Washer/Headlight/Horn Controls
Turn Signal Lever and Windshield Wiper/washer Controls (1)
Figure 3-2 are located on left side of steering column.
Pushing turn signal lever down causes left front and left rear
turn signals to flash. Pushing turn signal lever up causes
right front and right rear turn signals to flash.
The windshield wiper switch is built into the turn signal lever.
The knob of the lever has four positions: O, I, II and interval
wiping. Pushing button in end of knob energizes the
windshield washer pump to spray washer fluid on the
windshield. Positioning knob to I operates wiper at low
speed. Positioning knob to II operates wiper at high speed.
Positioning knob to O turns wiper motor off and automatically
returns wiper to parked position.
Push small button on end of lever to sound horn.
Item Description
1 Foot Pedals
2 Turntable Swing Pin Lock Control
3 Seat Joystick and Armrest Controls
4 CCS and RCL Display Panels
5 Steering Column
6 Overhead Control Panels
FIGURE 3-1
7649-5
1
2
5
4
6
3
Item Description
1
Turn Signal Lever and Windshield
Wiper/Washer/Horn Controls
2 Steering Column Tilt Lever
3 Park Brake Control Switch
4 Headlights Switch
5 Drive Axle Selector Switch
6 Hazard Lights Switch
7 Engine Speed (RPM) Increase/Decrease Switch
8 Ignition Switch
9 Transmission Shift Lever
7623
FIGURE 3-2
1
2
4
3
8
6
5
7
9
