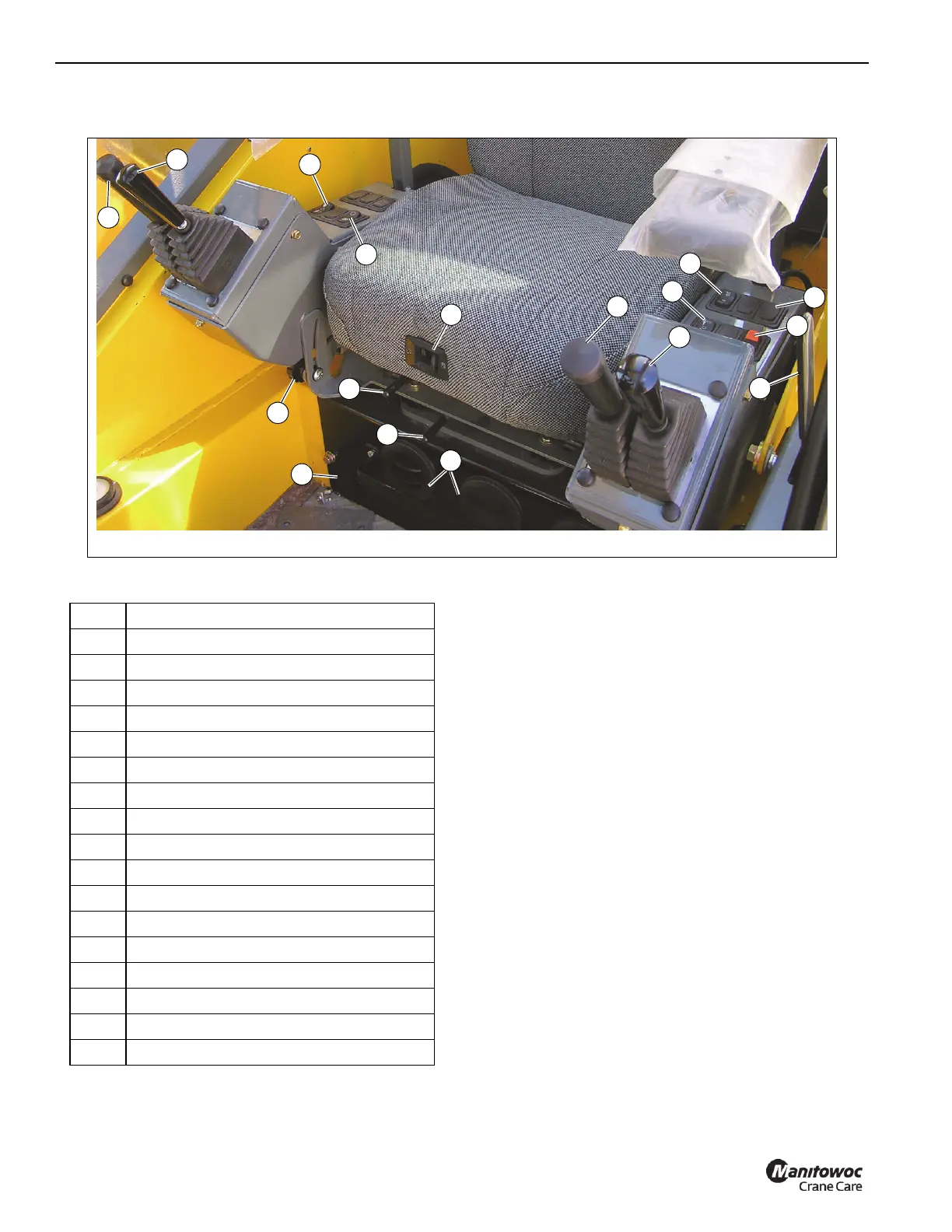

CONTROL SEAT ASSEMBLY (SINGLE AXIS)
Figure 3-8 Item Numbers
Main Hoist Control (Single Axis Option)
The Main Hoist Control (1) (Figure 3-8) is located on the right
armrest. The joystick, when placed forward, lowers the
cable. When placed back, it raises the cable.
Boom Lift Control (Single Axis Option)
The Boom Lift Control (2) (Figure 3-8) is located on the right
armrest. The joystick, when positioned forward lowers the
boom or back raises the boom.
Boom Lift and Main Hoist Control Lever
(Dual Axis Option — Not Shown)
The Boom Lift/main Hoist Control Lever is located on the
right armrest. The controller, when pushed to the right lowers
the boom or left raises the boom.
When used for main hoist, the controller, when pushed
forward lowers the cable or back raises the cable.
Main Hoist Speed Selector Switch
The Main Hoist Speed Selector Switch (3) (Figure 3-8) is a
three positioned maintained switch (High/Off/Low) that is
located on the right armrest. Positioning the switch to high
position allows main hoist functions and energizes the Main
Hoist High Speed Solenoid, resulting in high line speeds.
Positioning the switch to the center off position will prevent
hoisting. Positioning the switch to the low position allows
FIGURE 3-8
7649-4
4
3
2
1
5
6
7
15
12
10
11
14
13
8
9
16
17
Item Description
1
Main Hoist Control, Raise/ Lower
2 Boom Lift Control
3 Main Hoist Speed Switch
4 Boom In/Out (Auxiliary Hoist Raise/Lower)
5 Swing Control, Left/Right
6 Auxiliary Hoist Speed Switch
7 Rear Steer Switch
8 Swing Brake Control Switch
9 Axle Differential Lock Control Switch
10
Cab Door Release
11 Seat Back Adjustment
12 AC/Heater Vents
13 Seat Slide Lever
14 Whole Seat Slide Lever
15 Arm Rest Adjustment
16 AC/Heater Climate Control Unit
17 Hydraulic Boost Switch
