NBT40-1 SERIES OPERATOR MANUAL OPERATING CONTROLS - AERIAL LIFT
5
has elapsed and the AUX PUMP icon on the Radio
Remote Transmitter’s display stops flashing.
4. Fully retract the boom.
5. Lower the boom to ground level.
6. Stow equipment when operation is finished.
7. Depress the Emergency Stop button to shut off upper
Radio Remote Transmitter.
8. Turn remote switch OFF in lower control station
(operators cab).
9. Stow outriggers using lower control station (operator’s
cab) or ground level controls.
10. Refer to the operator’s manual for securing instructions
(See “Operational Procedure:” on page 5-9.)
Operational Procedure:
You must be familiar with the safety precautions outlined in
this manual before operating the aerial lift.
The following procedures should be used to operate this
aerial work platform:
Setup:
1. Position equipment at jobsite on level ground allowing
appropriate distance to allow attachment to boom or jib,
set park brake, shift transmission to neutral, and turn
OFF truck engine.
2. Start engine from lower control station (operators cab).
3. Set outriggers and level the equipment.
NOTE: Boom functions will operate only when equipment
is leveled as per operators manual instructions.
4. Configure RCL for crane operation, turn ON lower
control power switch on overhead console and position
platform on the ground.
5. Turn OFF lower control power switch on overhead
console, Turn ON remotes power switch on overhead
console to begin reconfiguration to aerial lift operation.
Reconfiguration for Aerial Lift:
1. Attach aerial lift platform per “Aerial Lift Platform” on
page 6-12.
2. Turn ON radio remote controller by twisting Emergency
STOP knob clockwise and following the on-screen
instructions to restart truck engine.
3. Using radio remote controller, stow hoist rope (1) on
stow pegs located on top of boom. (See Figure 5-6.)
4. Remove and reconfigure A2B switch (2). Refer to
Figure 6-12.
5. Stow A2B weight and chain (3) for future re-installation.
6. Secure remote control to platform control station
mounting bracket (4).(See Figure 5-7).
DANGER
Tipping Hazard!
To avoid death or serious injury and overturning of
equipment fully retract boom before lowering boom to
ground level.
8862
8850-5

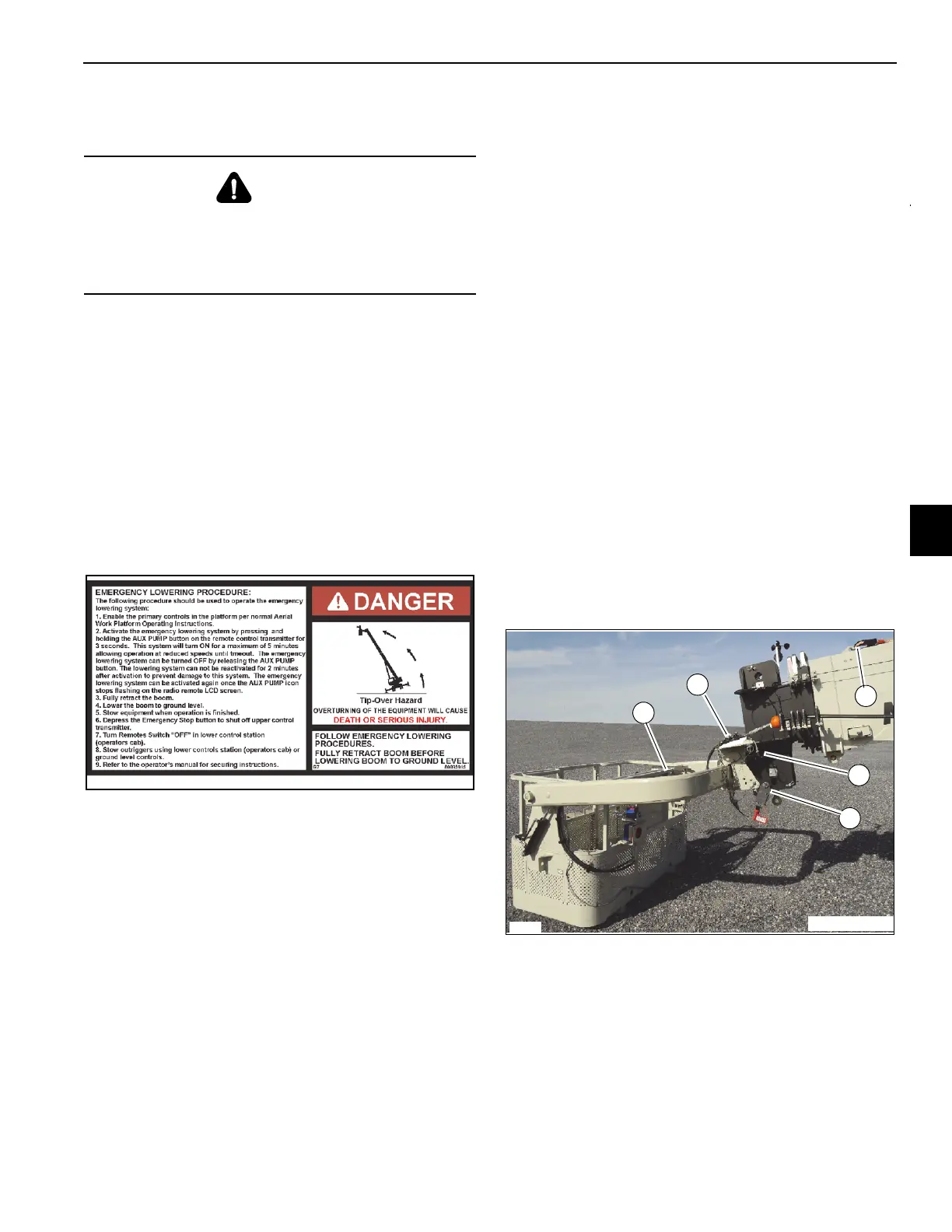

FIGURE 5-6
3
1
2
4
5
