NBT40-1 SERIES OPERATOR MANUAL SET-UP
6
Hoist Loadline Tie Down
HOIST ROPE TIE DOWN
Hoist Rope Tie Down - Boom Mounted Hoist
1. Remove the hook block (4, Figure 6-7) from the wedge
socket (3) and feed the loadline rope back through the
boom nose until the wedge socket (3) has cleared the
boom nose.
NOTE: A single reeved hook block (4) is shown, your
machine may be reeved differently.
2. Connect the wedge socket (3) to the boom tie down
anchor peg on top of boom (1).
3. Slowly rewind the hoist loadline (2) until any remaining
slack is removed and the loadline is snug.

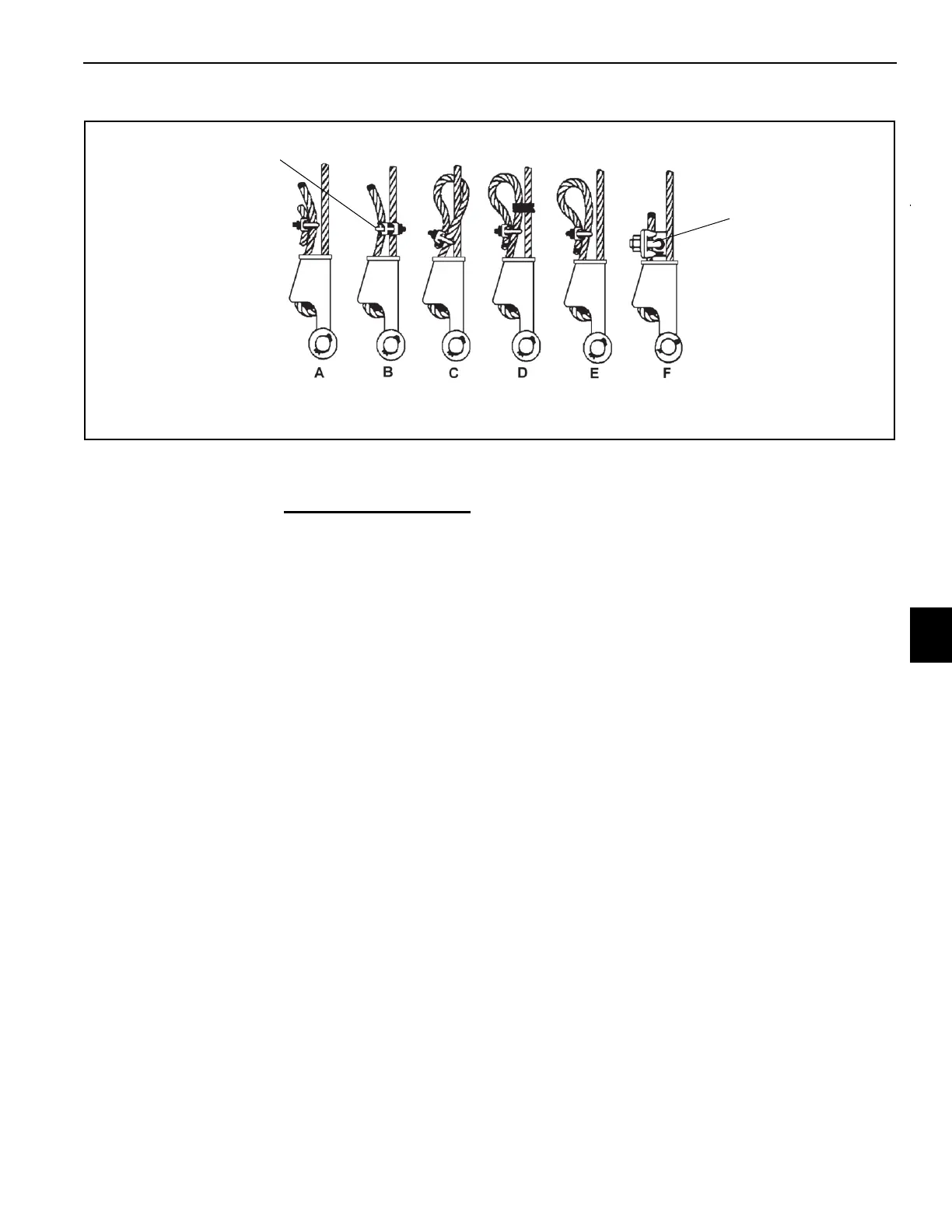

FIGURE 6-6
Wedge Socket
Specialty Clip
Specialty Wedge
