CHAPTER 4: LOUDSPEAKER GUIDEALINKS
LINA loudspeakers are compatible with Meyer Sound’s QuickFly
®
rigging system, a comprehensive collection of rigging, fly-
ing, and mounting hardware. LINA’s captive GuideALinks allow cabinets to be linked at various splay angles for flying,
groundstacking, and transport. The heavy-duty GuideALinks allow for easy adjustment of array tilts, eliminating the need for
pull-back straps in flown configurations. M6 attachment points provide connections to the optional MPA-2 and MPA-3
brackets to allow an attachment to an MYA-MINA/LINA mounting yoke, an MUB-MINA/LINA U-bracket, and indirectly to an
MPK-POLE using the 35MM Pole Stand Adapter.
LINA GUIDEALINKS
Each LINA loudspeaker is equipped with four captive GuideALinks that link to adjacent units in flown and groundstacked
arrays. Located at the bottom corners of the end plates, the GuideALinks extend and retract with knobs and are secured
with quick-release pins.
When linking LINAs, two quick-release pins are required for each GuideALink: one to secure the position of the link in the
top unit, and one to secure the link to the linked bottom unit. Eight loudspeaker quick-release pins (0.25 in x 0.53 in, black
button, PN 134.039
) are included with each LINA.
CAUTION: Make sure to secure the LINA GuideALinks with the included quick-release pins. GuideALink knobs
are for extending and retracting the links and should not be used to support the weight (without the pins) of the
loudspeaker when fully extended.

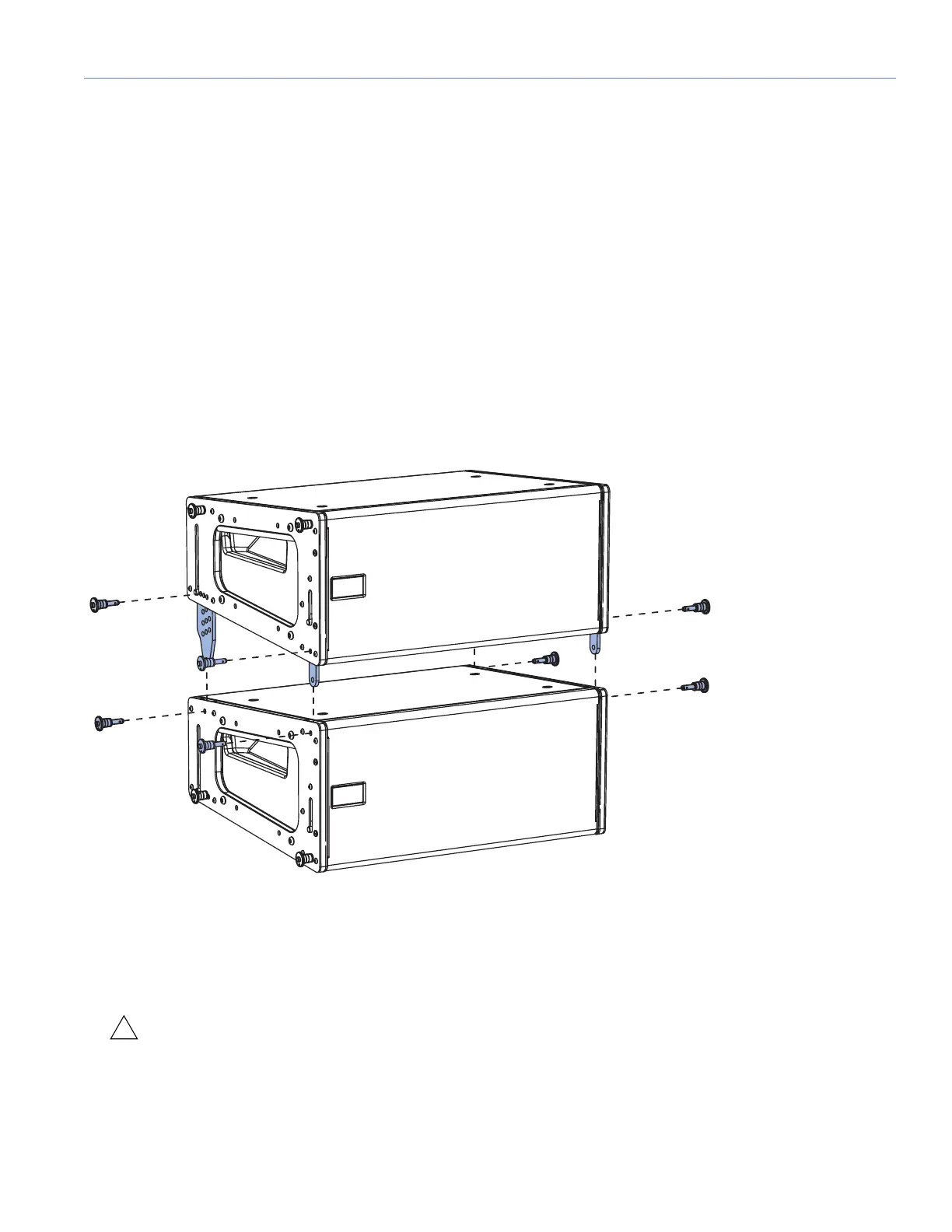

Figure 6: LINA GuideALinks with Quick-Release Pins
