Meyer Sound LEO Series User Manual

37
CHAPTER 8: PBF-LINA PULL-BACK FRAME
For applications requiring extreme array downtilt that is not possible with adjustments to the motors attached to the grid,
the optional PBF-LINA pull-back frame can be attached to the bottom cabinet in LINA and 750-LFC arrays and pulled by a
separate motor. The pull-back frame is secured to the bottom cabinet with the loudspeaker quick-release pins (0.25 in x
0.53 in, black button, PN 134.039) included with the LINA and the 750-LFC. The PBF-LINA pull-back frame requires
1/2-inch shackles for its two pickup points.
PBF-LINA KIT CONTENTS

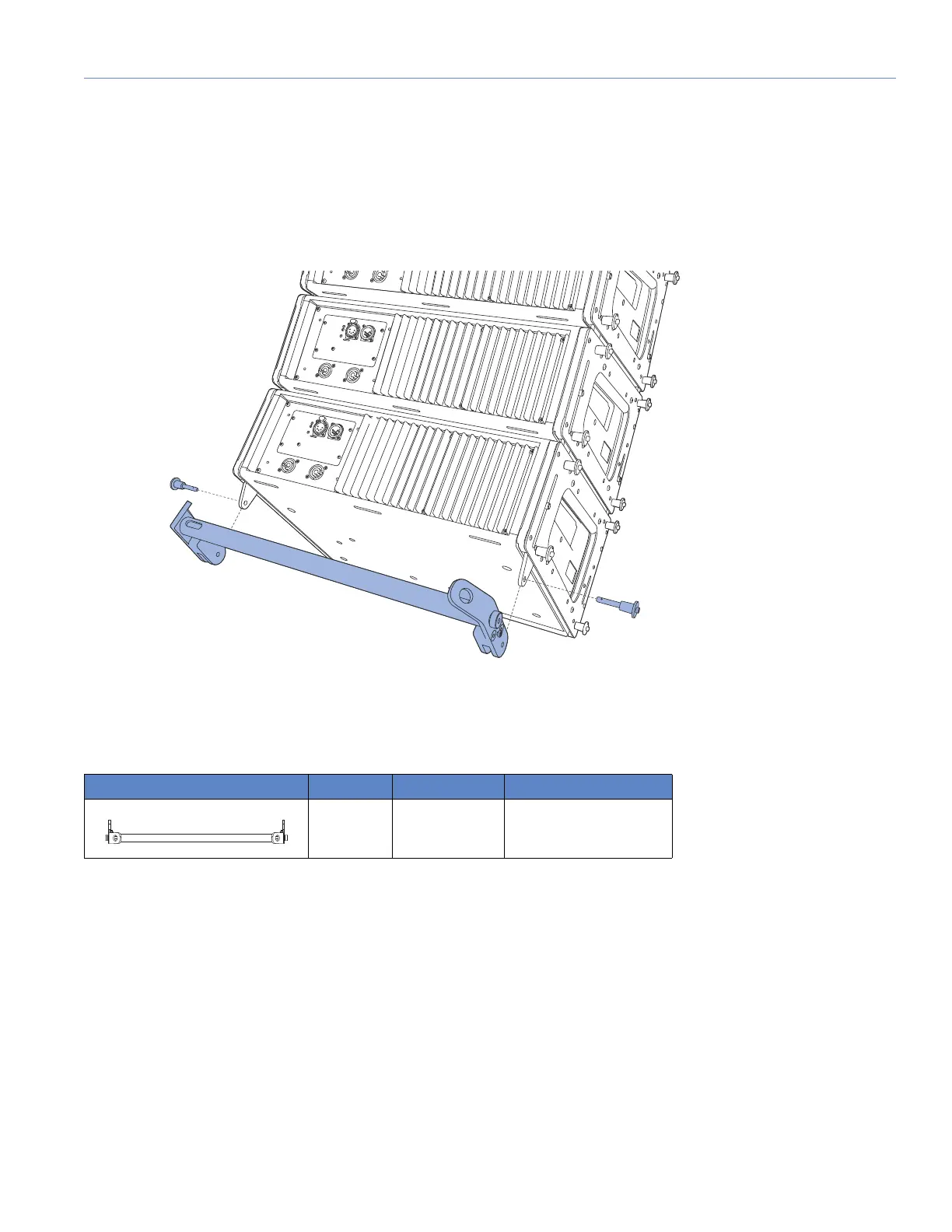

Figure 28: PBF-LINA Pull-Back Frame Attached to Bottom LINA, Exploded View
Table 6: PBF-LINA Pull-Back Frame Kit, PN 40.271.080.01
Quantity Part Number Item
1 45.271.080.01 PBF-LINA pull-back frame
