MG-MINA/LINA/750-LFC GRID ASSEMBLY GUIDE
17
750-LFC GUIDEALINKS
When equipped with the MRK-750 rigging kit, the 750-LFC includes six captive GuideALinks and six mating link slots that
link to adjacent units in flown and groundstacked arrays. Located at the bottom of the cabinet, GuideALinks drop down and
into the link slots of the cabinet below it. GuideALinks extend and retract with knobs and are secured with two quick-release
pins: one each in the top and bottom cabinets. GuideALinks accommodate reversed units for cardioid arrays. The MRK-750
rigging kit includes ten loudspeaker quick-release pins (0.25 in x 0.53 in, black button, PN 134.039
).

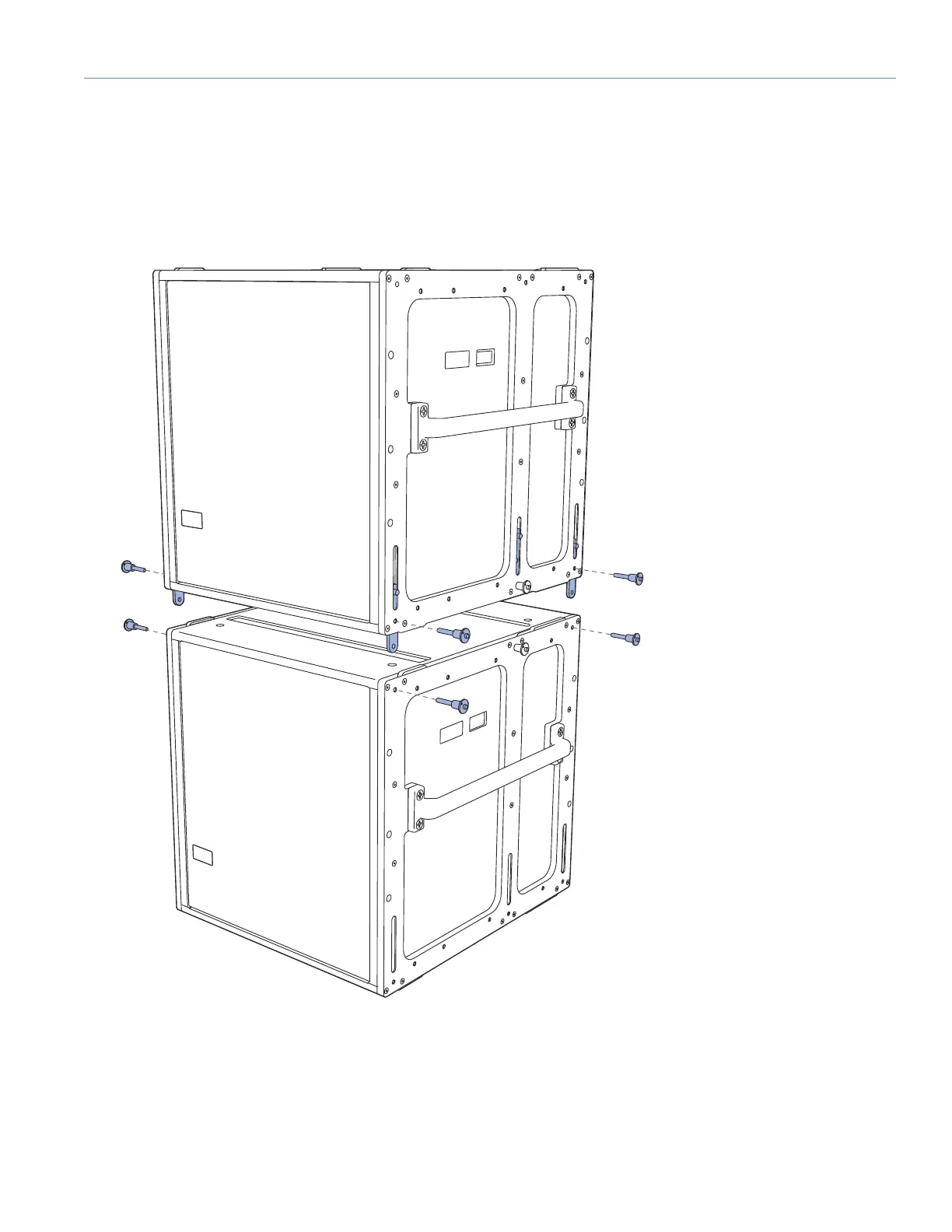

Figure 11: 750-LFCs with MRK-750 Rigging Kit, GuideALinks and Quick-Release Pins
