MG-MINA/LINA/750-LFC GRID ASSEMBLY GUIDE
61
MUB-MINA/LINA FLOOR-MOUNT CONFIGURATIONS
The MUB-MINA/LINA U-bracket can be mounted to a floor to aim a single LINA loudspeaker, or it can be used for stacking
up to two LINA loudspeakers. The MUB-MINA/LINA U-bracket should be secured to the floor with fasteners placed in its
four corner holes. Make sure to use fasteners appropriate for the floor surface. The LINA cabinet is secured to the U-bracket
with the screws and washers included with the MUB-MINA kit. A second LINA cabinet can be stacked on top of the first
cabinet and secured with the top unit’s GuideALinks.
For floor-mounted configurations, the MUB-MINA/LINA can be oriented for either maximum downtilt (with the slot near the
rear of the loudspeakers) or maximum uptilt (with the slot near the front of the loudspeakers).
• For a single floor-mounted cabinet, the MUB-MINA/LINA supports continuous angles from +10 to –10 degrees in the
maximum downtilt orientation, and continuous angles from 0 to +20 degrees in the maximum uptilt orientation.
• For two floor-mounted cabinets, the MUB-MINA/LINA supports fixed angles of 0, +5, and +10 degrees depending on the
orientation.
For illustrations showing which MUB-MINA/LINA mounting holes and slot configurations to use to achieve specific
angles for floor-mount applications, see Table 14 and Table 15 on page 62.

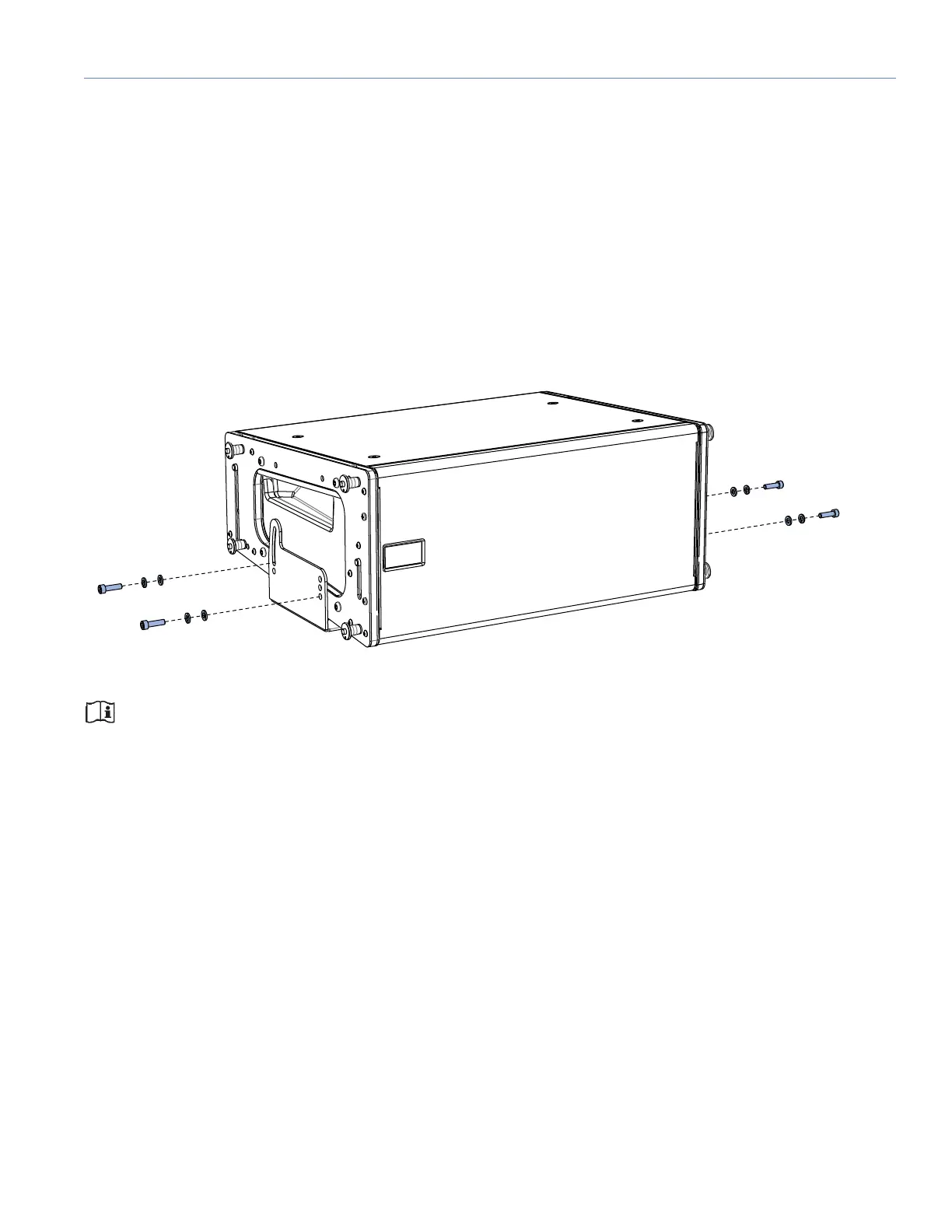

Figure 54: Floor-Mounted MUB-MINA/LINA with One LINA
