CHAPTER 5: MG-MINA/LINA/750-LFC GRID
The MG-MINA/LINA/750-LFC grid flies LINA arrays of up to 16 cabinets at a 5:1 safety ratio. (Additional load ratings are
possible; use MAPP to verify load ratings.) The grid, which can also be used for groundstacking arrays, accommodates a
variety of pickup configurations with two front and two rear pickup points and 11 center pickup points.
The MG-MINA/LINA/750-LFC grid has four captive links, two per side, that attach to the top LINA of flown arrays. The con-
figuration of the links and orientation of the grid (for either maximum uptilt or maximum downtilt) determine the angle of the
attached LINA. The grid links are easily stowed for transport and groundstacked configurations.
The MG-MINA/LINA/750-LFC grid includes eight grid quick-release pins (0.25 in x 0.90 in, black button with 6 in lanyard,
PN 134.036): four for securing the four grid links, and four for securing LINA groundstacks to the top of the grid.
CAUTION: Always use the grid quick-release pins included with the MG-MINA/LINA/750-LFC grid to secure its
links, as well as to secure groundstacked LINAs to the grid. Do not use the loudspeaker quick-release pins
(included with LINA) in the grid as they are shorter and will not lock into place.
TIP: The MG-MINA/LINA/750-LFC grid can travel installed on top of LINA stacks.

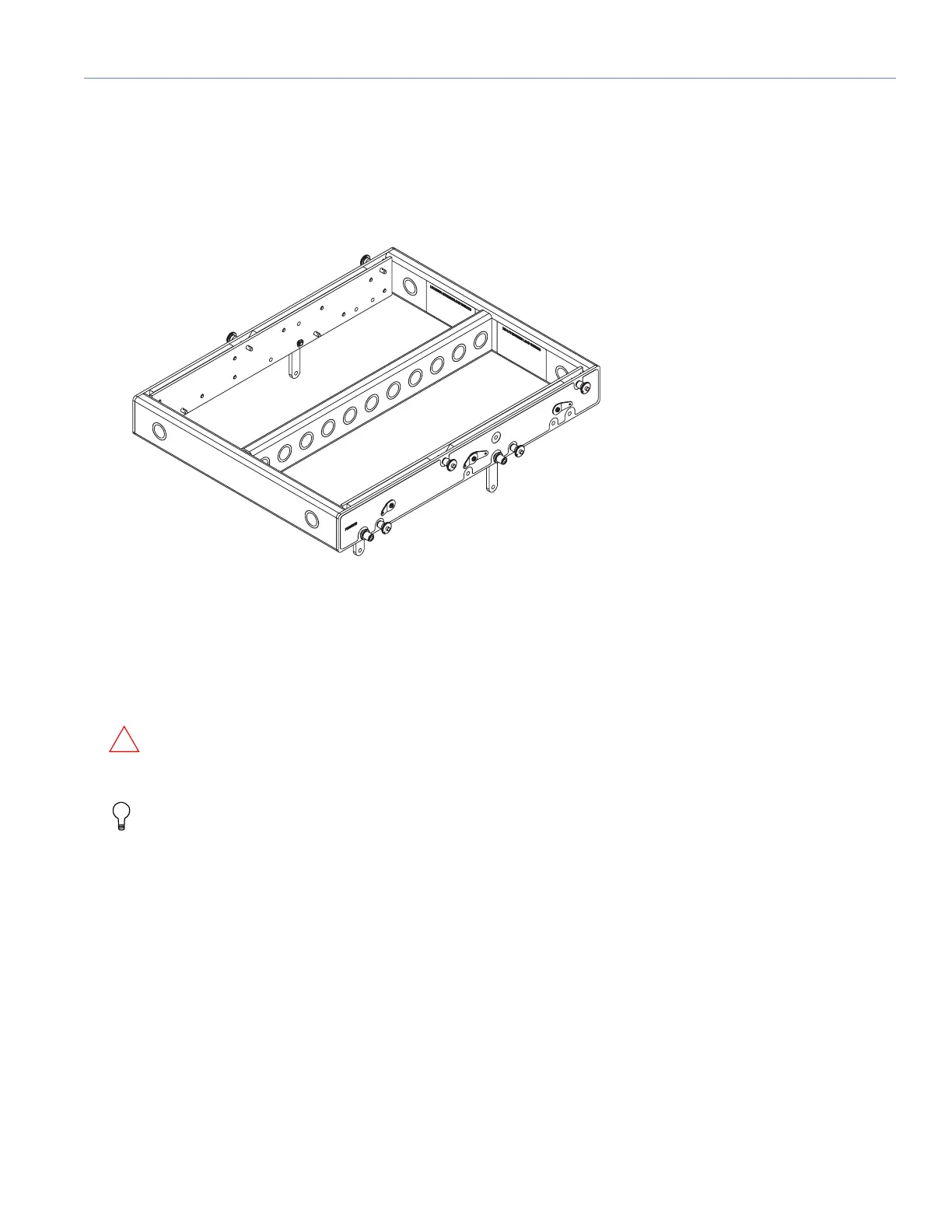

Figure 16: MG-MINA/LINA/750-LFC Grid
