CHAPTER 7: MVP MOTOR VEE PLATE
The optional MVP motor Vee plate fine-tunes the horizontal aim of LINA and 750-LFC arrays ±16 degrees. The bottom of the
Vee plate attaches to the MG-MINA/LINA/750-LFC grid’s frontmost or rearmost point on the center pickup bar, while the top
corners of the Vee plate attach to two motors, which, when adjusted, affect the horizontal rotation of the grid. The Vee plate’s
attachment points are 1.20-inch through and require 3/4-inch or 7/8-inch shackles. The Vee plate should always be placed
on the grid side (front or rear) with the lower load value.
CAUTION: Always use properly rated rigging hardware. The MVP motor Vee plate attachment point holes are
1.20-inch through and require 3/4-inch or 7/8-inch shackles.

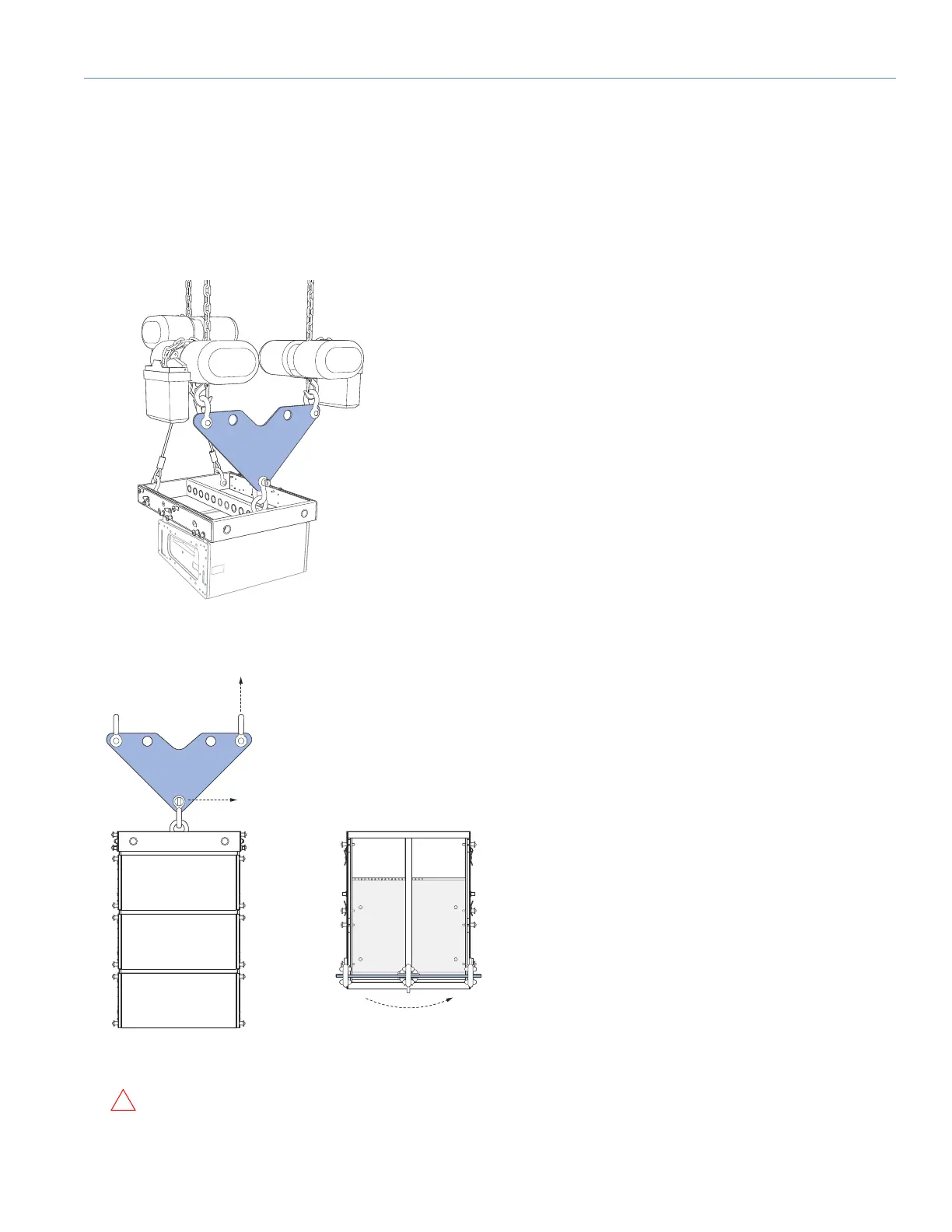

Figure 26: MVP Motor Vee Plate Attached to MG-MINA/LINA/750-LFC Grid
Figure 27: MVP Motor Vee Plate, Pulling Up on Either Motor Rotates the Grid
Front View Top View
!
