CHAPTER 10: MYA-MINA/LINA MOUNTING YOKE
56
MYA-MINA/LINA POLE-MOUNT CONFIGURATIONS
Up to two LINA loudspeakers can be pole-mounted with the MYA-MINA/LINA mounting yoke. The yoke attaches to the side
brackets (which attach directly to the LINA end frames) and is secured with the included M6 screws in the center, pivot
holes, and the M6 knobs in one of three pinning holes. For pole-mount applications, the yoke supports up to 35 degrees of
downtilt and severe uptilts of 90 degrees or more (Figure 49). When pole-mounting LINAs with the yoke, a pole-mount
adapter is required (Figure 50). (See Chapter 12, “MPK Pole and pole-mount receptacle”)
CAUTION: When mounting the MYA-MINA/LINA on a pole, make sure the pole and pole-mount adapter have
been rated to support the full weight of the yoke and two loudspeakers. Observe all safety precautions speci-
fied by the pole and pole-mount adapter manufacturer.
TIP: The M6 screws can be used in the pinning holes for fixed installations that will not require tilt adjustments
for the loudspeakers. For installations that will require tilt adjustments, use the M6 knobs in the pinning holes,
as they are more easily loosened and tightened.

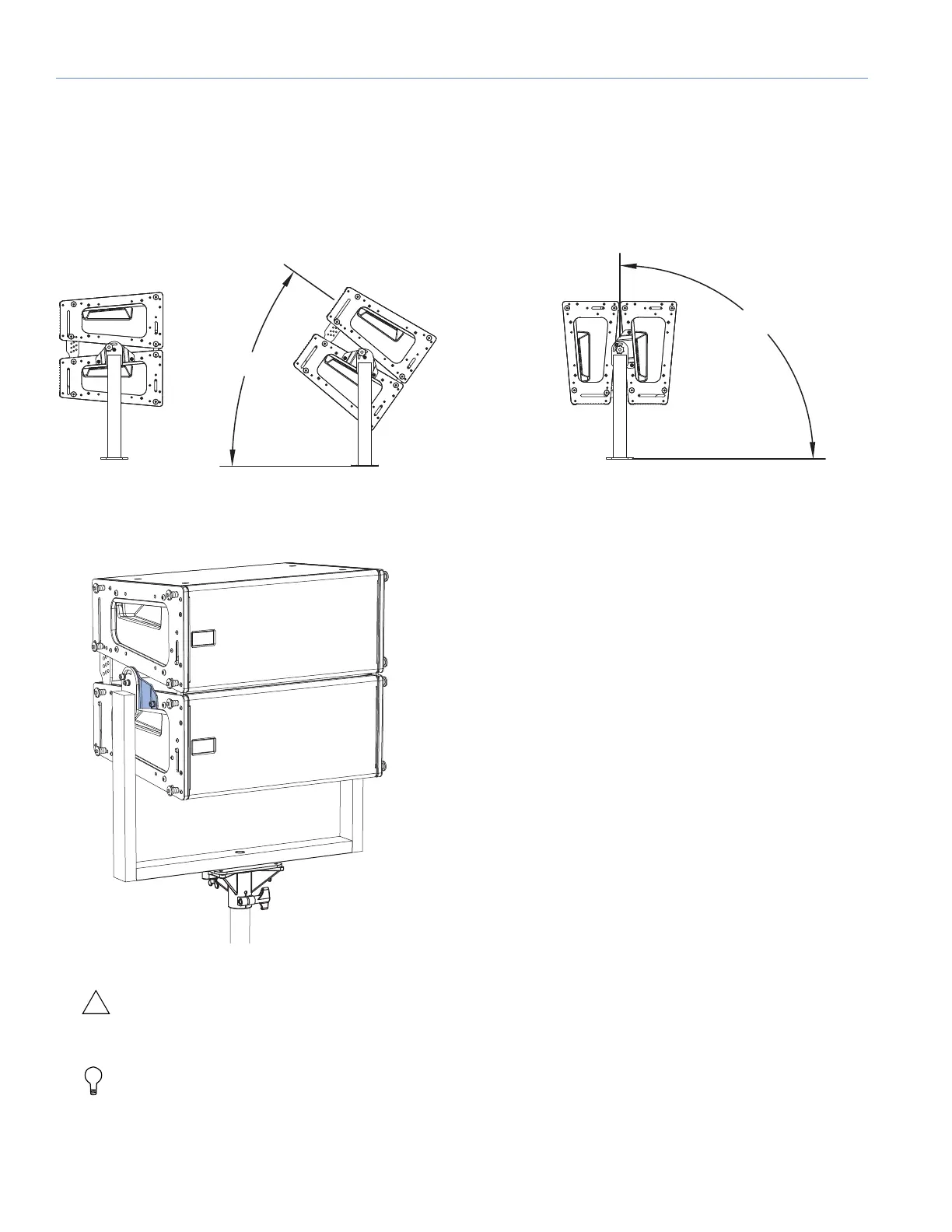

Figure 49: Pole-Mount Configurations for MYA-MINA/LINA with Two LINAs
Figure 50: MYA-MINA/LINA using MPA-2 bracket on a 35MM Pole Stand Adapter (PN 40.010.970.01)
