Meyer Sound LEO Series User Manual

CHAPTER 9: GROUNDSTACKING WITH THE MG-MINA/LINA/750-LFC GRID
44
ANGLES FOR GROUNDSTACKED LINAS WITH THE MG-MINA/LINA/750-LFC
For groundstacked configurations with the MG-MINA/LINA/750-LFC, the angle for the bottom LINA attached to the grid can
be from +6 degrees (uptilt) to –5 degrees (downtilt). Table 7 on page 45 lists the available angles and the corresponding
label positions for the rear GuideALinks.

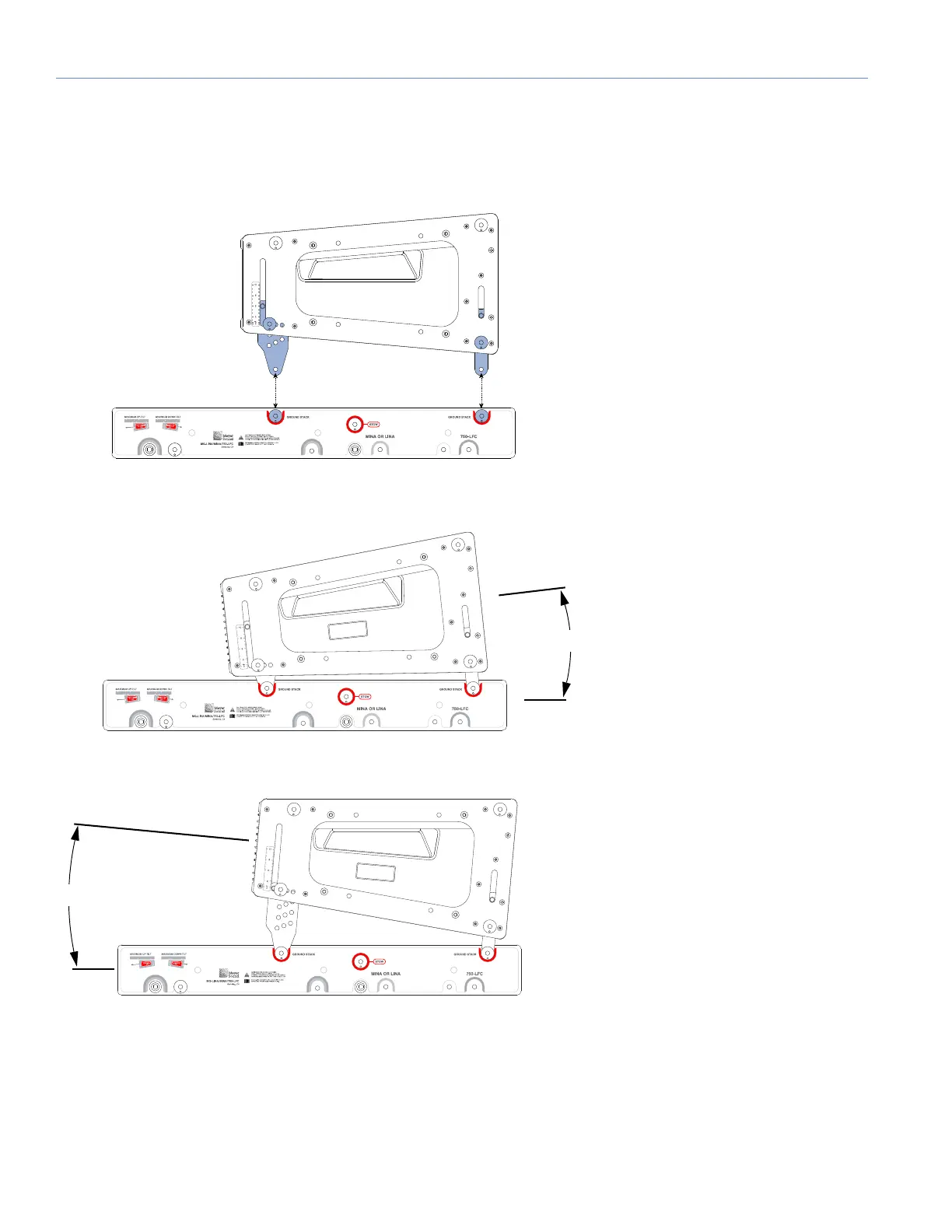

Figure 35: MG-MINA Grid with Groundstacked LINA, 0 Degrees
Figure 36: MG-MINA Grid with Groundstacked LINA, +6 Degrees Uptilt
Figure 37: MG-MINA Grid with Groundstacked LINA, –5 Degrees Downtilt
+6°
–5°
