CHAPTER 13: THE MCF-MINA/LINA CASTER FRAME
70
MCF-MINA/LINA Dimensions
MCF-MINA/LINA Weight: 28.0 lbs (12.7 kg)
Loudspeaker to MCF-MINA/LINA Angles

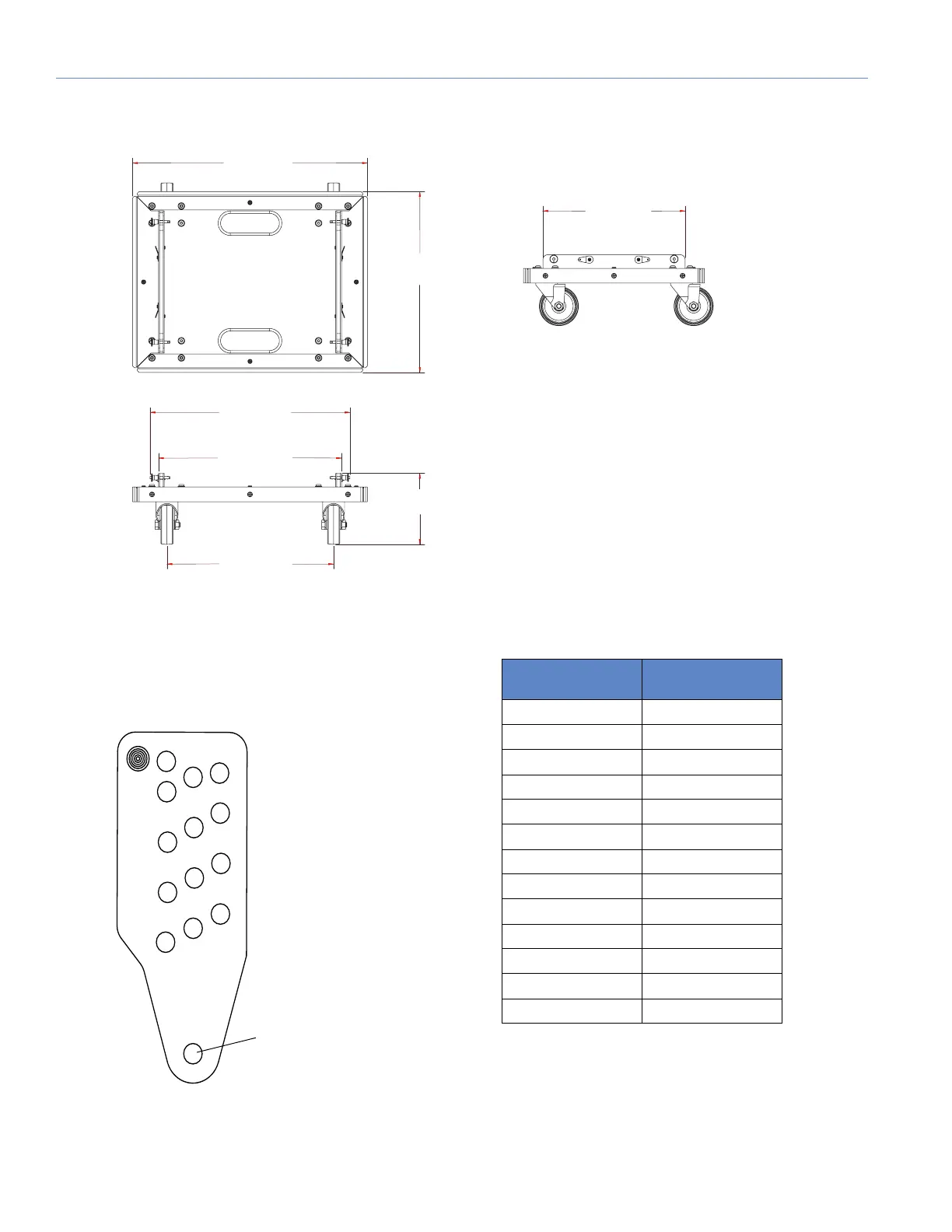

Figure 60: MCF-MINA/LINA Caster Frame Dimensions
Figure 61: LINA Rear GuideALink Angles Between Loudspeaker and MCF-MINA/LINA
18.46 in
[469 mm]
23.96 in
[609 mm]
7.25 in
[184 mm]
18.67 in
[474 mm]
20.40 in
[518 mm]
17.00 in
[432 mm]
14.50 in
[368 mm]
-
4.5 °
6°
5°
3°
4°
2°
1°
0°
-2°
-1°
-3°
-5°
-4°
Stowed
Table 17: Loudspeaker to MCF-MINA/LINA Angles
Rear GuideALink
Label Position
Actual Groundstack
Angle
0–5°
0.5 –4.5°
1–4°
2–3°
3–2°
4–1°
50°
6+1°
7+2°
8+3°
9+4°
10 +5°
11 +6°
