Chapter 4. Troubleshooting
PELLERIN MILNOR CORPORATION

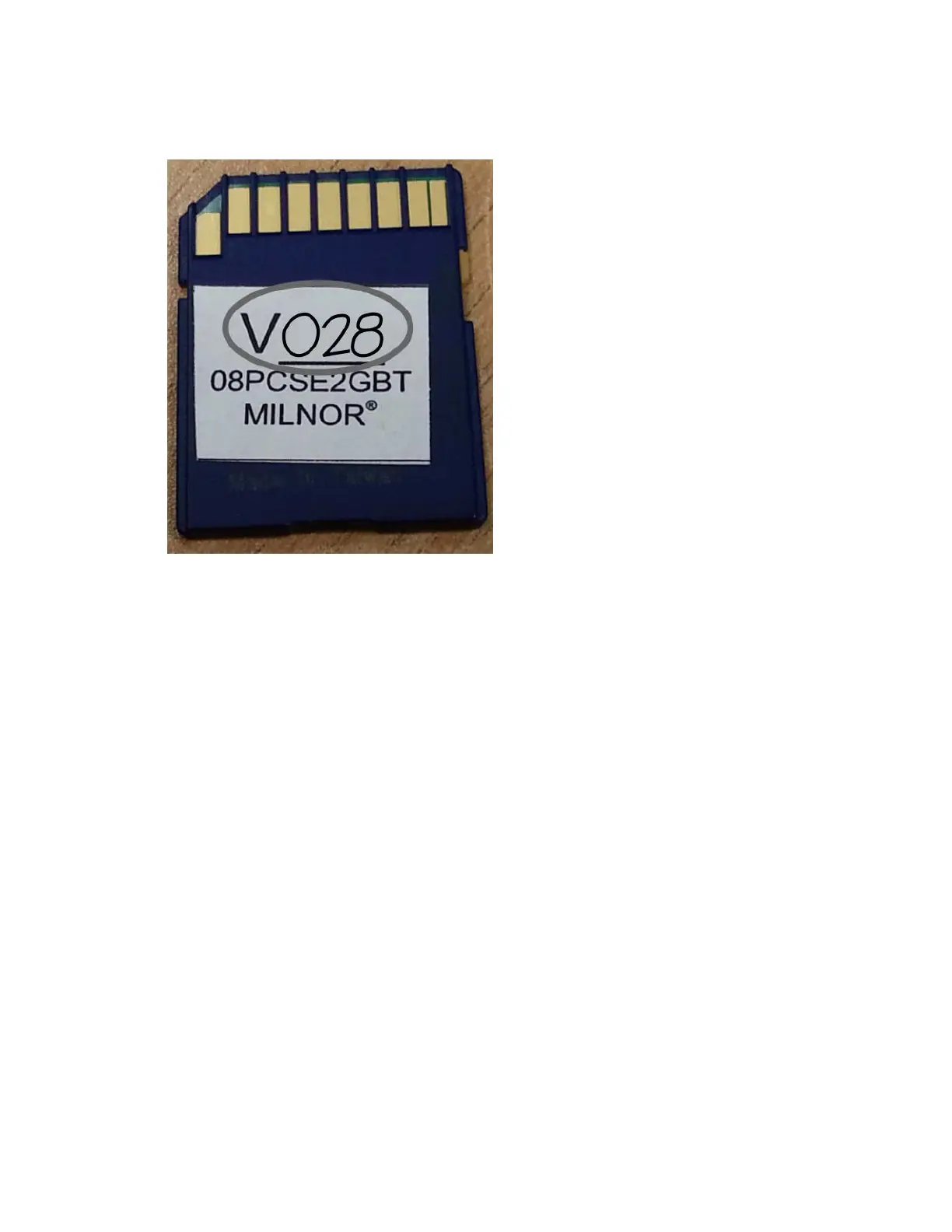

Figure 36: MilTouch SD Card
• MilTouch input/output board version 08BHF120BT or later
• Inverter software to provide the appropriate signal. Contact the Pellerin Milnor service
engineering group for this information.
4.4.2. Testing
If the requirements described above are met, this procedure tells how to verify that the out-of-
balance detection system is working:
1. Close the loading door.
2. Touch the Diagnostics button at the bottom of the home screen (
HFigure 35H).
3. Touch the Outputs button at the bottom of the screen to view the machine outputs (
HFigure
37
H).
50
